NOTE:
Perform Test TC-21A Before Proceeding

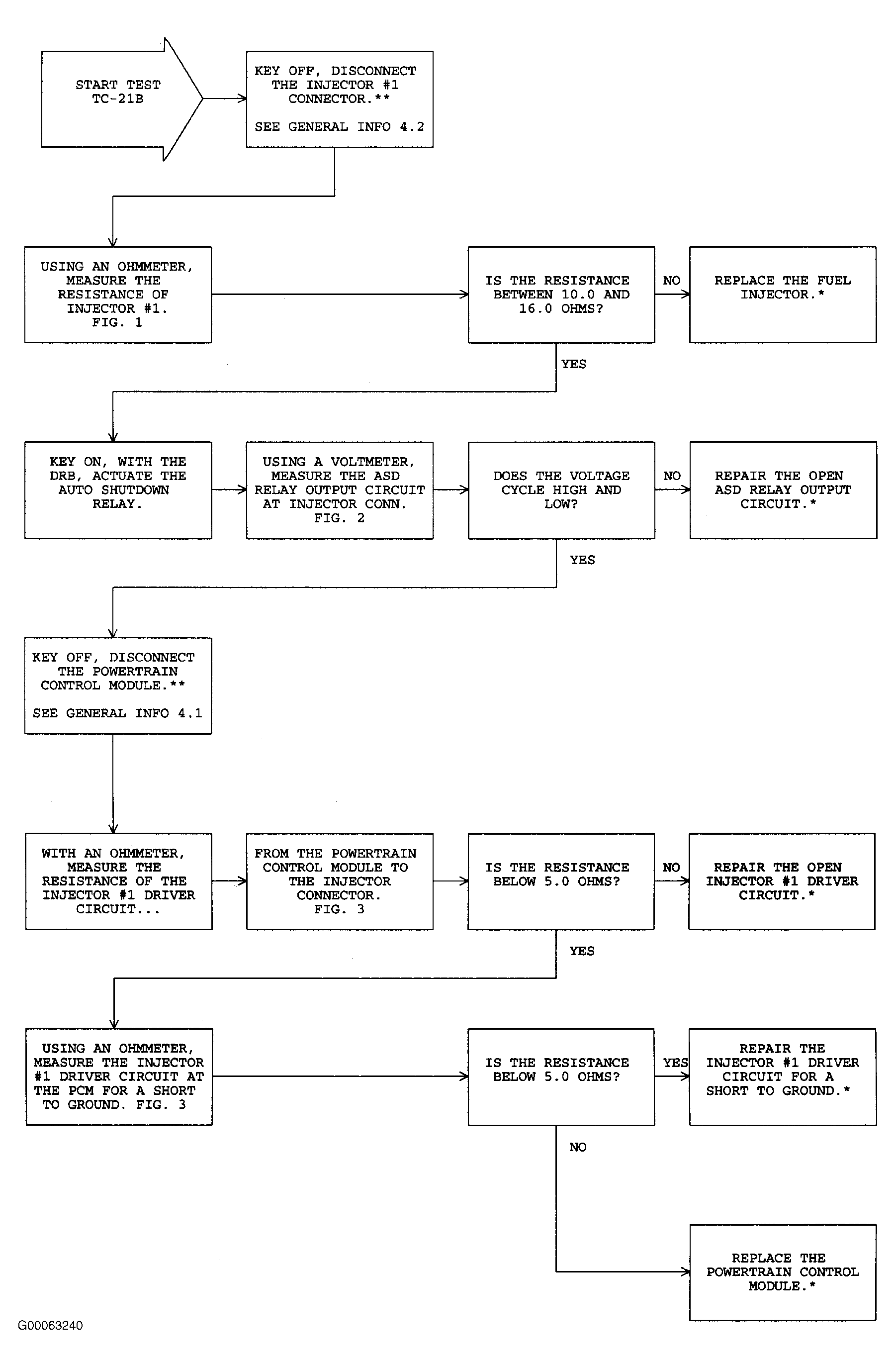

Fig 1: TC-21B: Injector No. 1 Control Circuit (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORPORATION

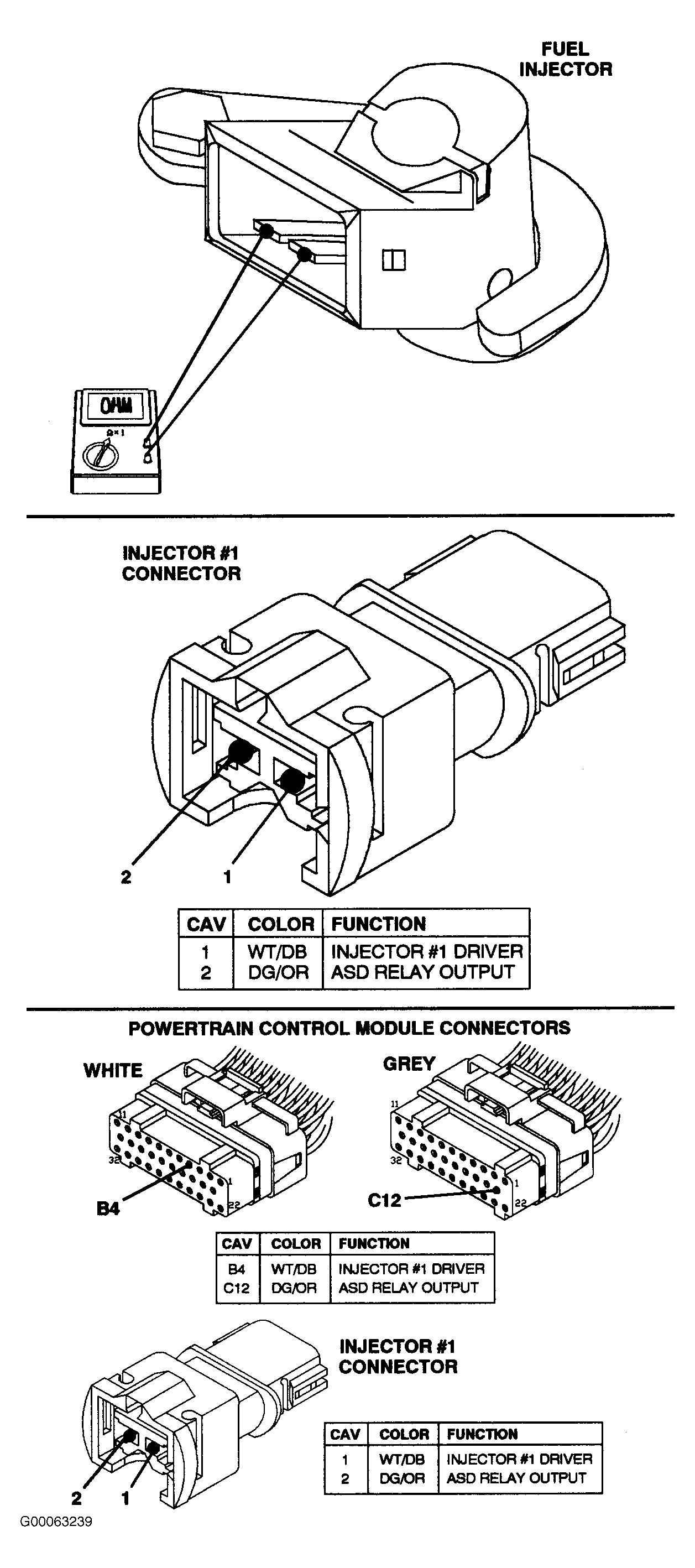

Fig 2: TC-21B: Injector No. 1 Control Circuit (2 Of 2)
