NOTE:
Perform Test TC-21A Before Proceeding

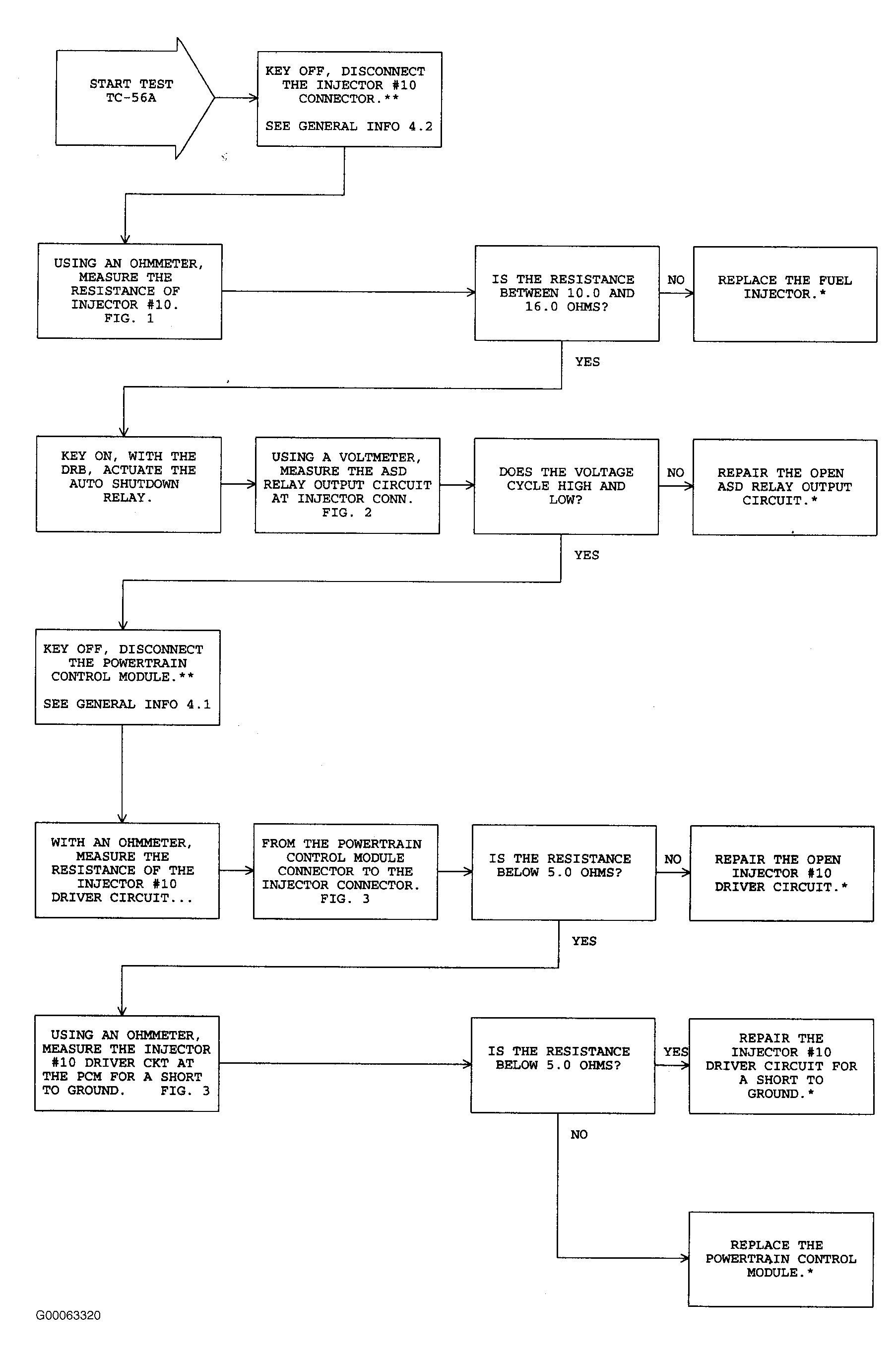

Fig 1: TC-56A: Injector No. 10 Control Circuit (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 2: TC-56A: Injector No. 10 Control Circuit (2 Of 2)
