WARNING: This page is about a different car, the 1997 Dodge Viper and 1996 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform Test TC-21A Before Proceeding

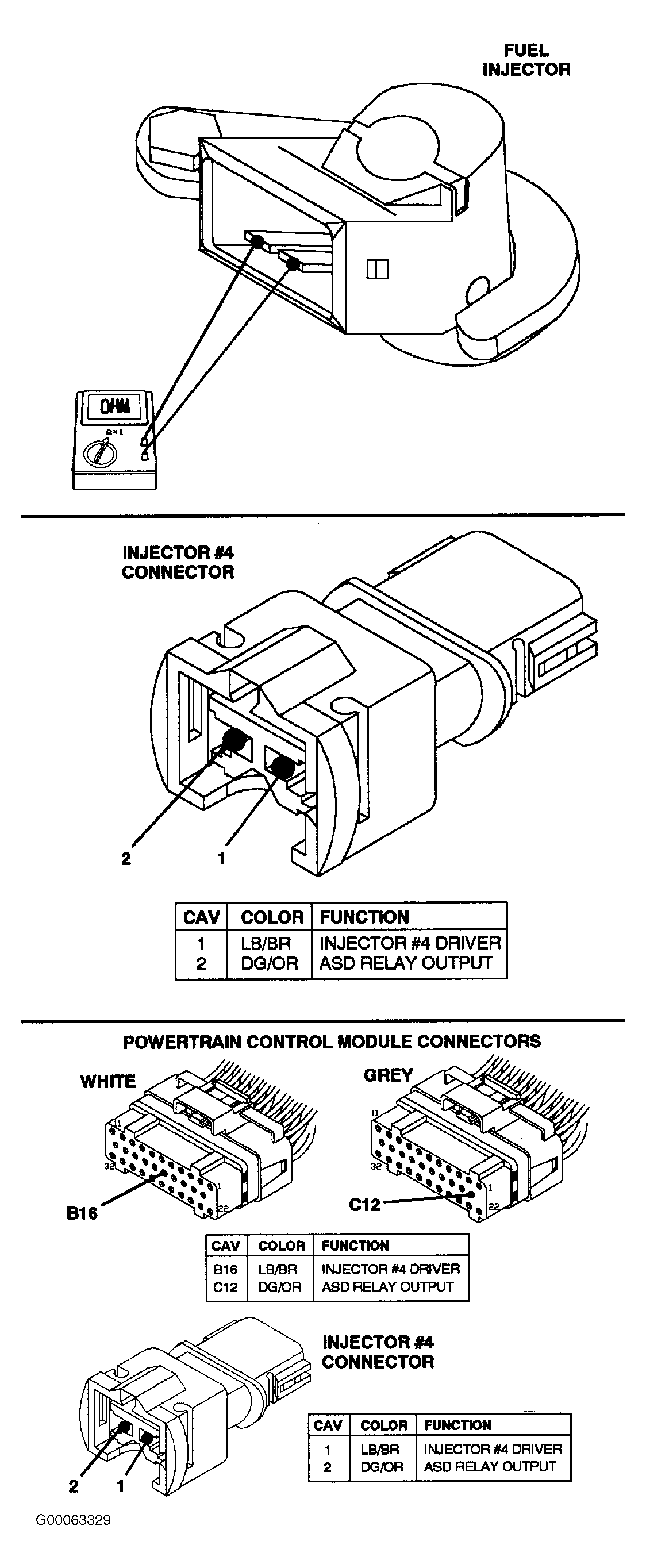

Fig 1: TC-61A: Injector No. 4 Control Circuit (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORPORATION

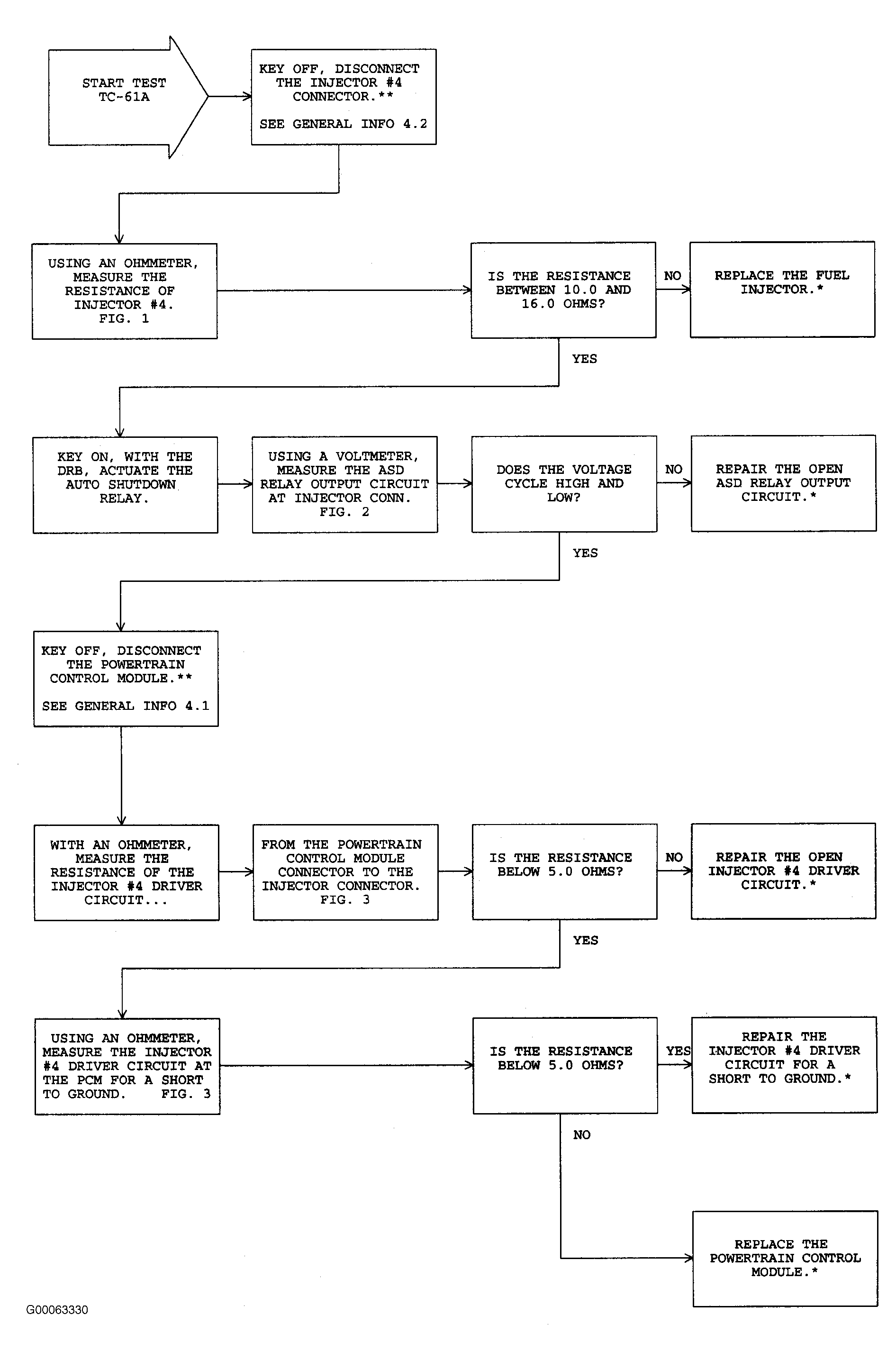

Fig 2: TC-61A: Injector No. 4 Control Circuit (2 Of 2)
