Wiring Diagrams

WARNING: This page is about a different car, the 1997 Dodge Viper and 1996 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

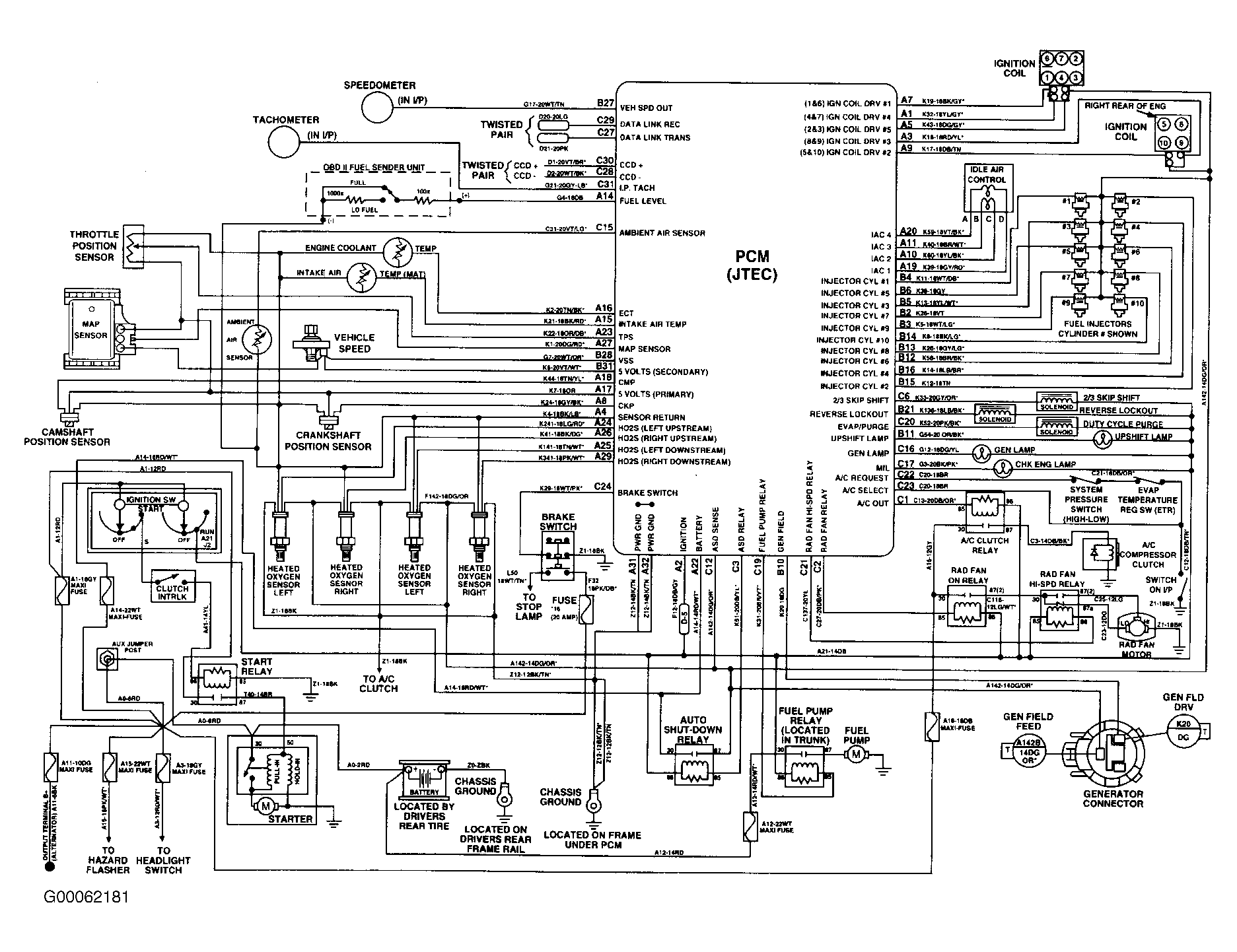

Fig 1: Schematic Wiring Diagram

Courtesy of DAIMLERCHRYSLER CORPORATION
