Component Locations

WARNING: This page is about a different car, the 2001 Dodge Viper and 2000 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

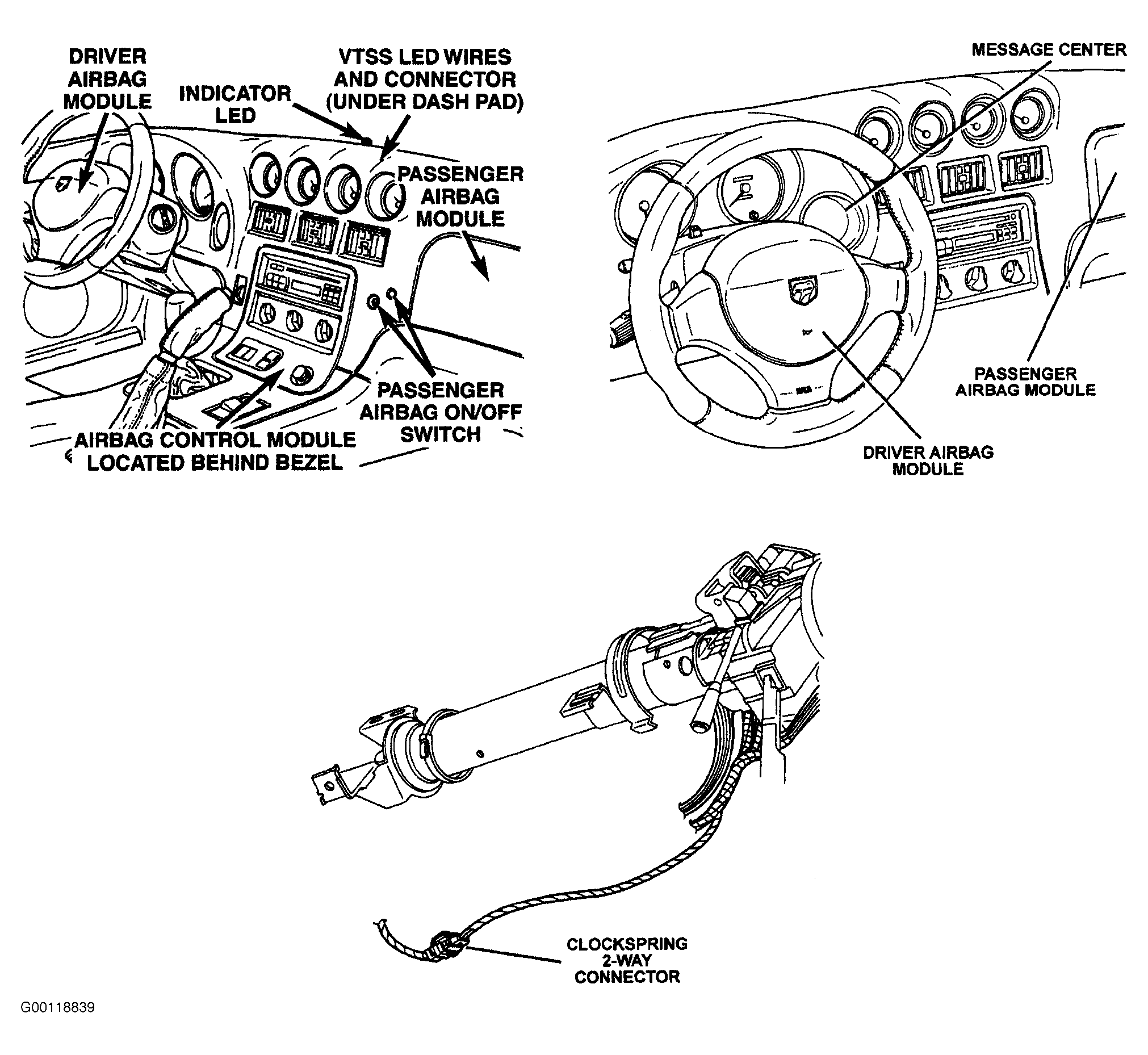

Fig 1: Locating Airbag Control Module Components

G00118839

Courtesy of DAIMLERCHRYSLER CORP.

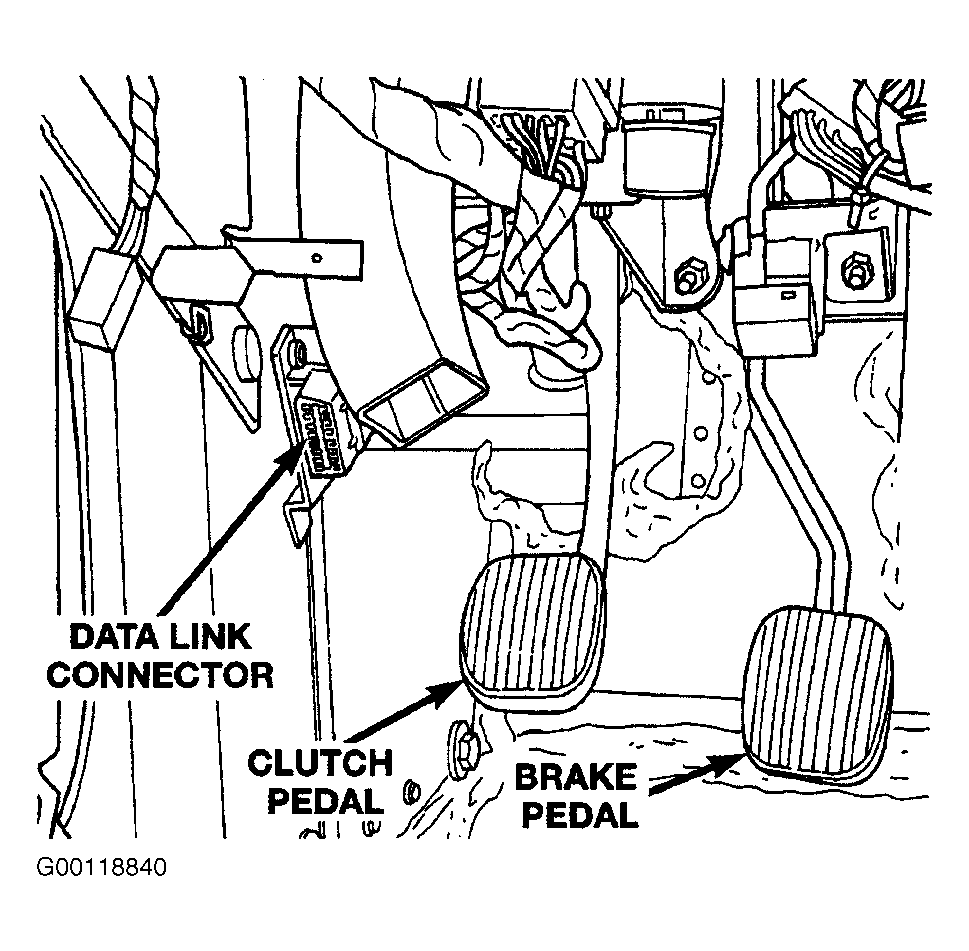

Fig 2: Locating Data Link Connector Components

G00118840

Courtesy of DAIMLERCHRYSLER CORP.

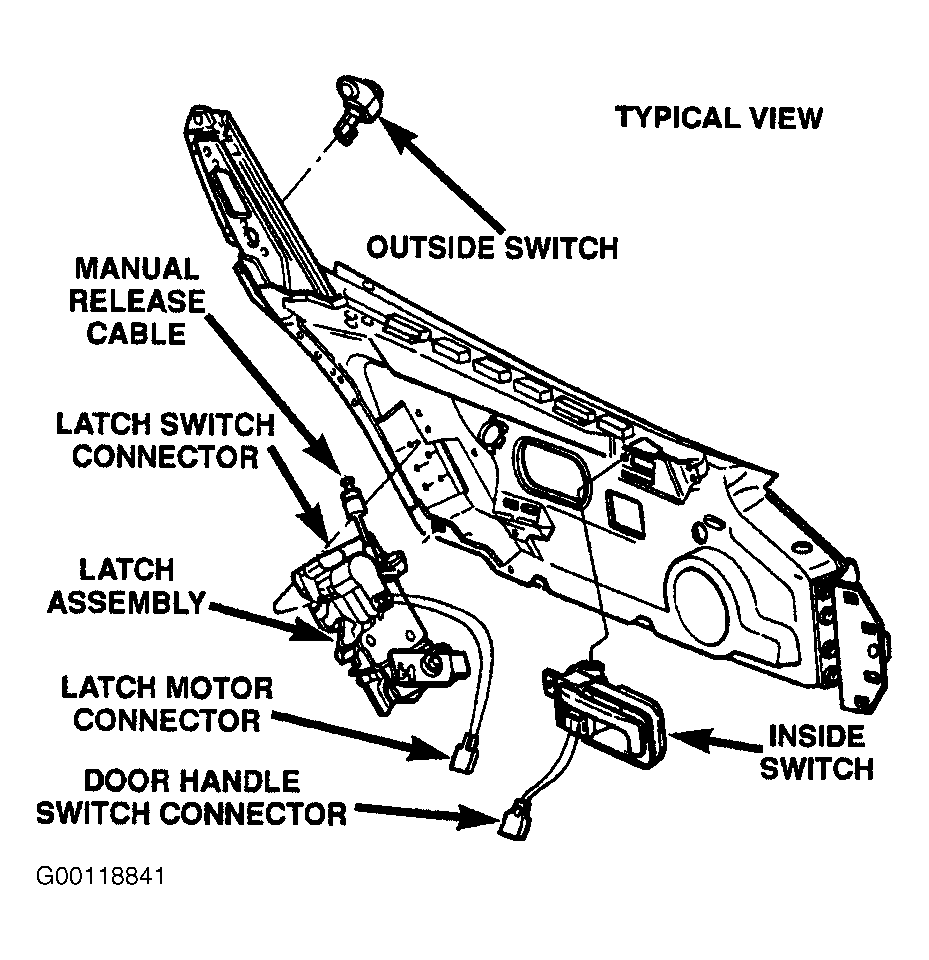

Fig 3: Locating Door Components

G00118841

Courtesy of DAIMLERCHRYSLER CORP.

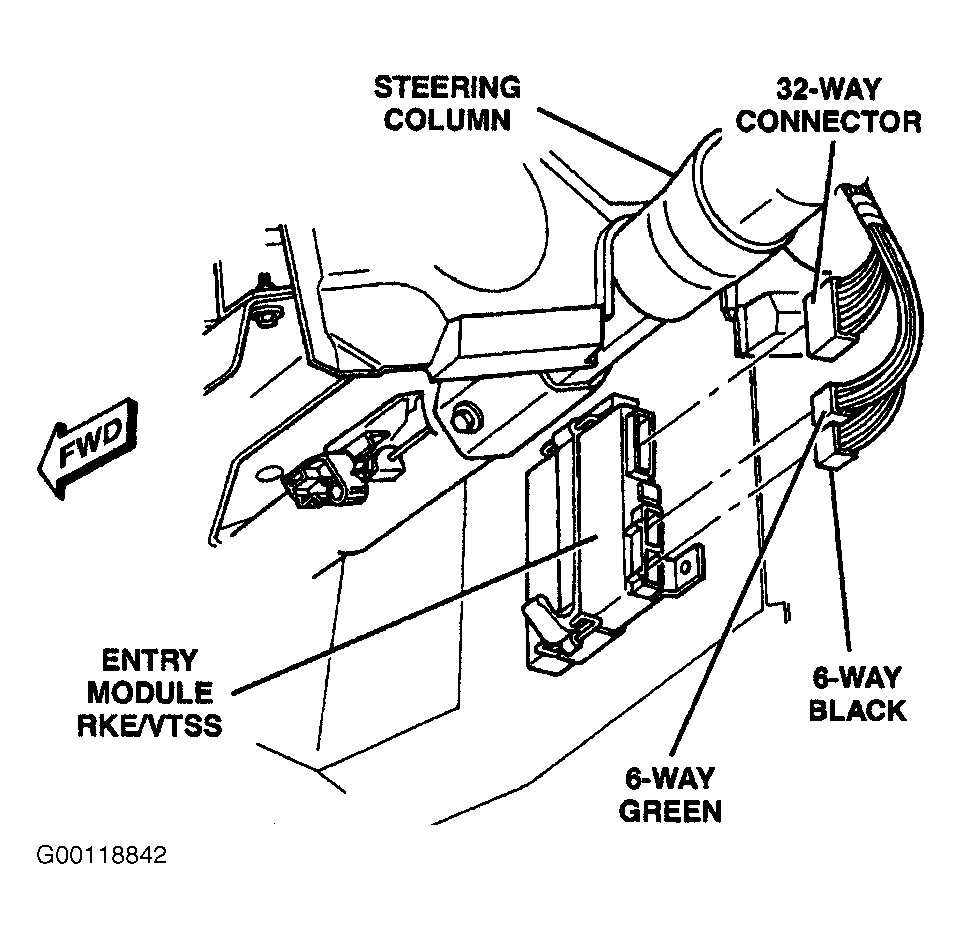

Fig 4: Locating Electronic Entry Module Components

G00118842

Courtesy of DAIMLERCHRYSLER CORP.

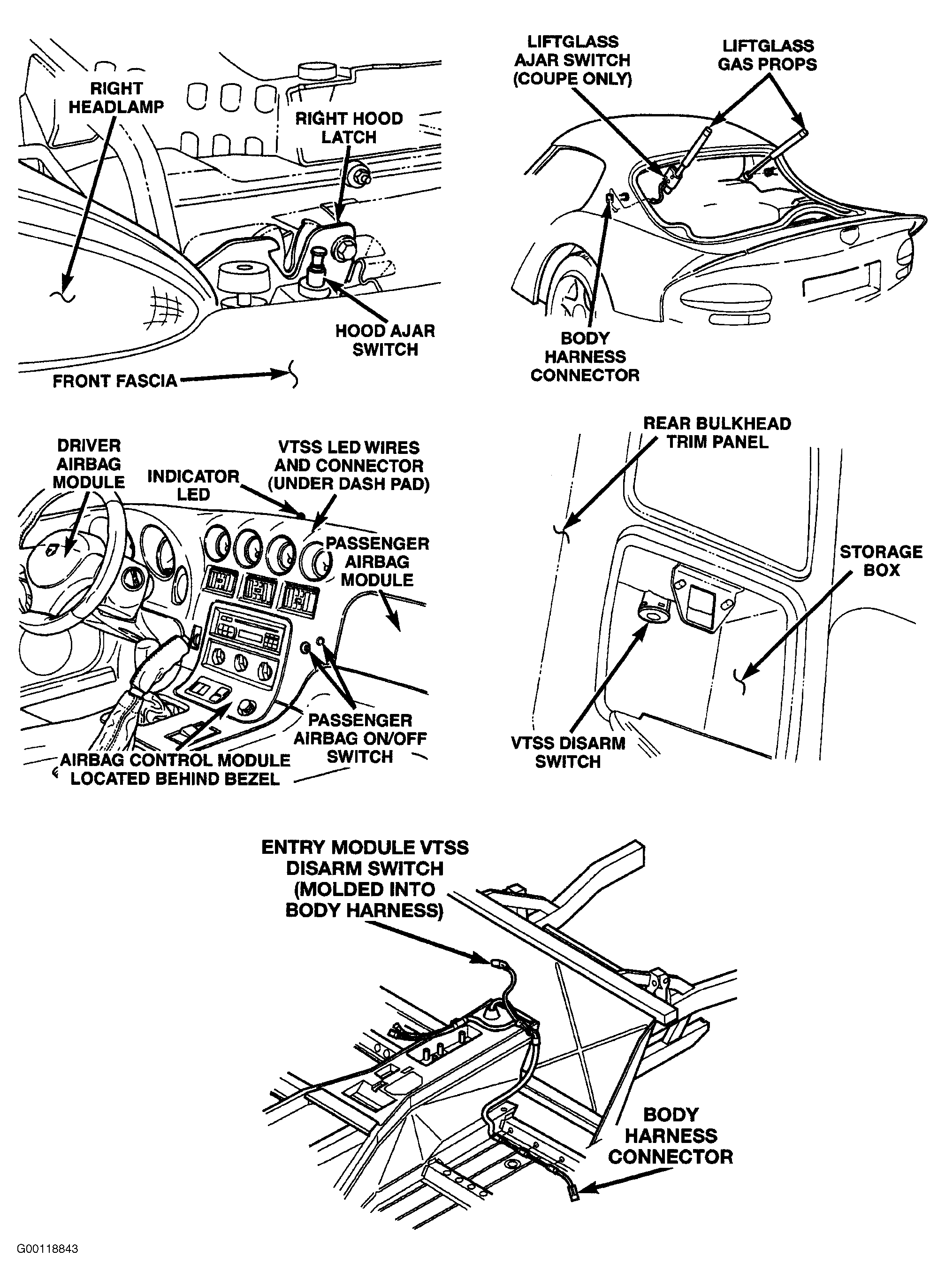

Fig 5: Locating Theft Alarm Components

G00118843

Courtesy of DAIMLERCHRYSLER CORP.
