Electronic Entry Module System

WARNING: This page is about a different car, the 2001 Dodge Viper and 2000 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

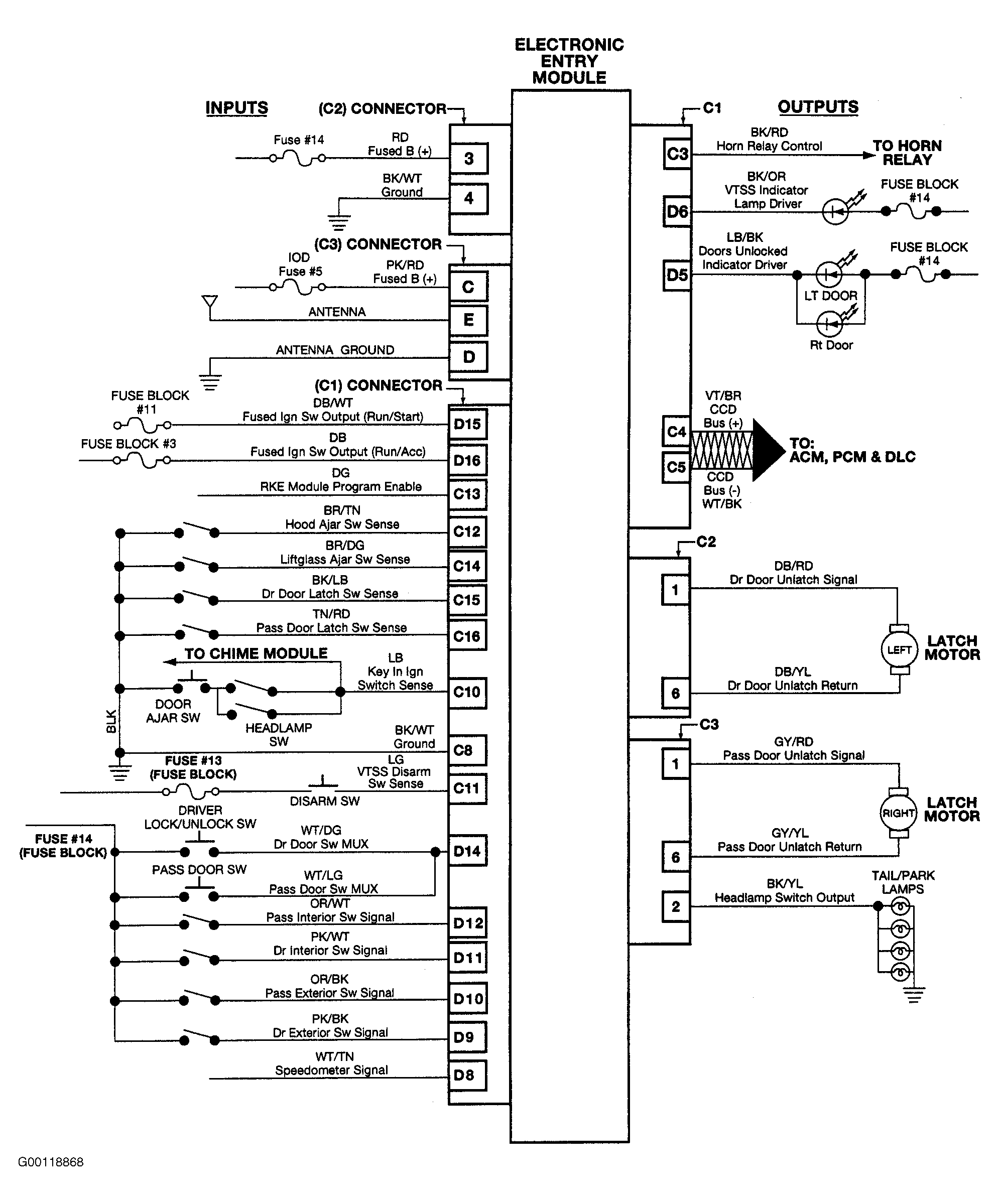

Fig 1: Electronic Entry Module System Wiring Diagram

Courtesy of DAIMLERCHRYSLER CORP.
