Standard Procedure

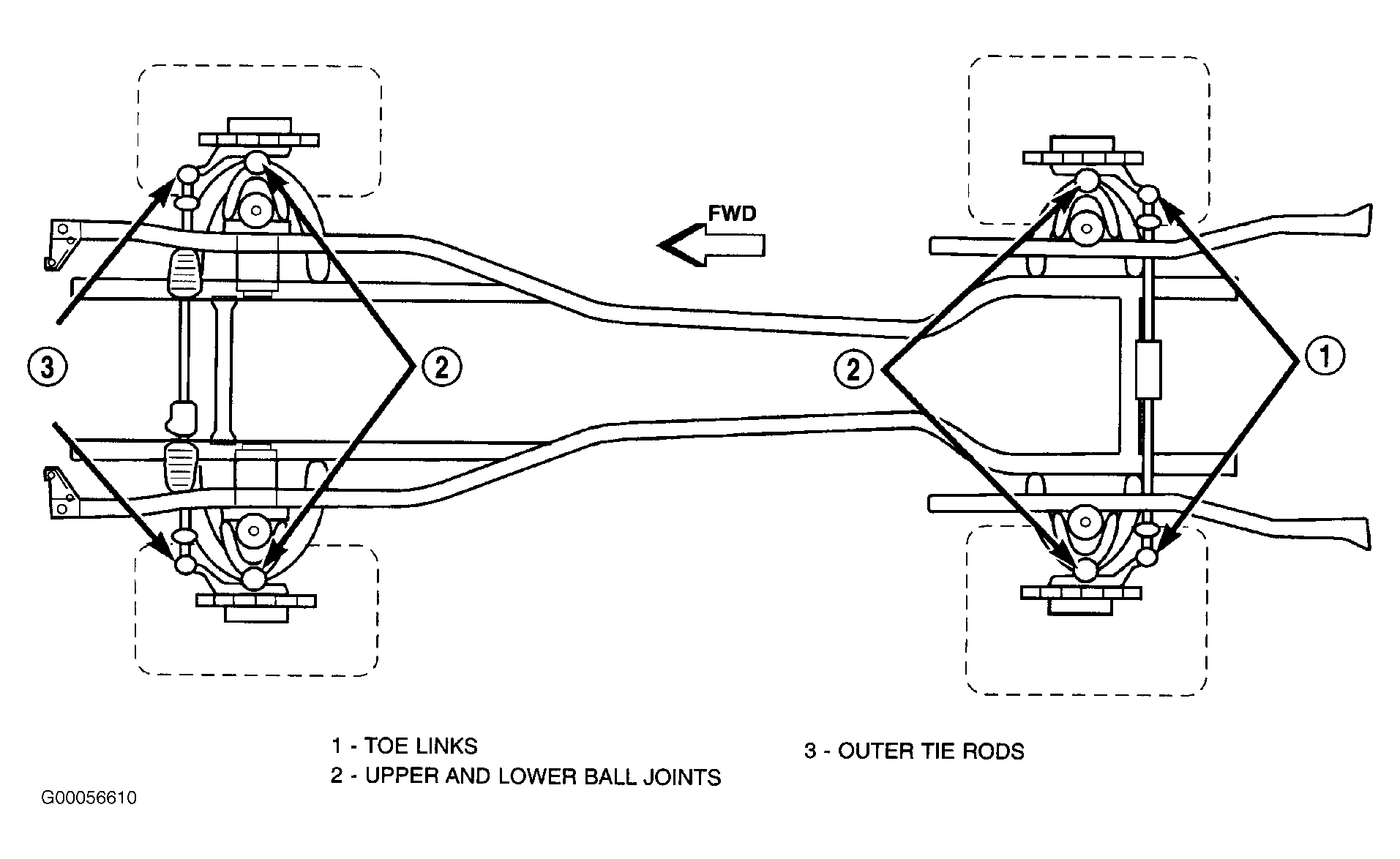

Periodic lubrication of suspension system is required. The following lubrication points on suspension system must be lubricated periodically. See Fig 1 .
Front Suspension:
- Upper Control Arm Ball Joint
- Lower Control Arm Ball Joint
- Outer Tie Rods
Lubricate each point until a slight swelling is noticed in seal boot. Do not overfill seal boots.
