Transmission Assembly: Assembly

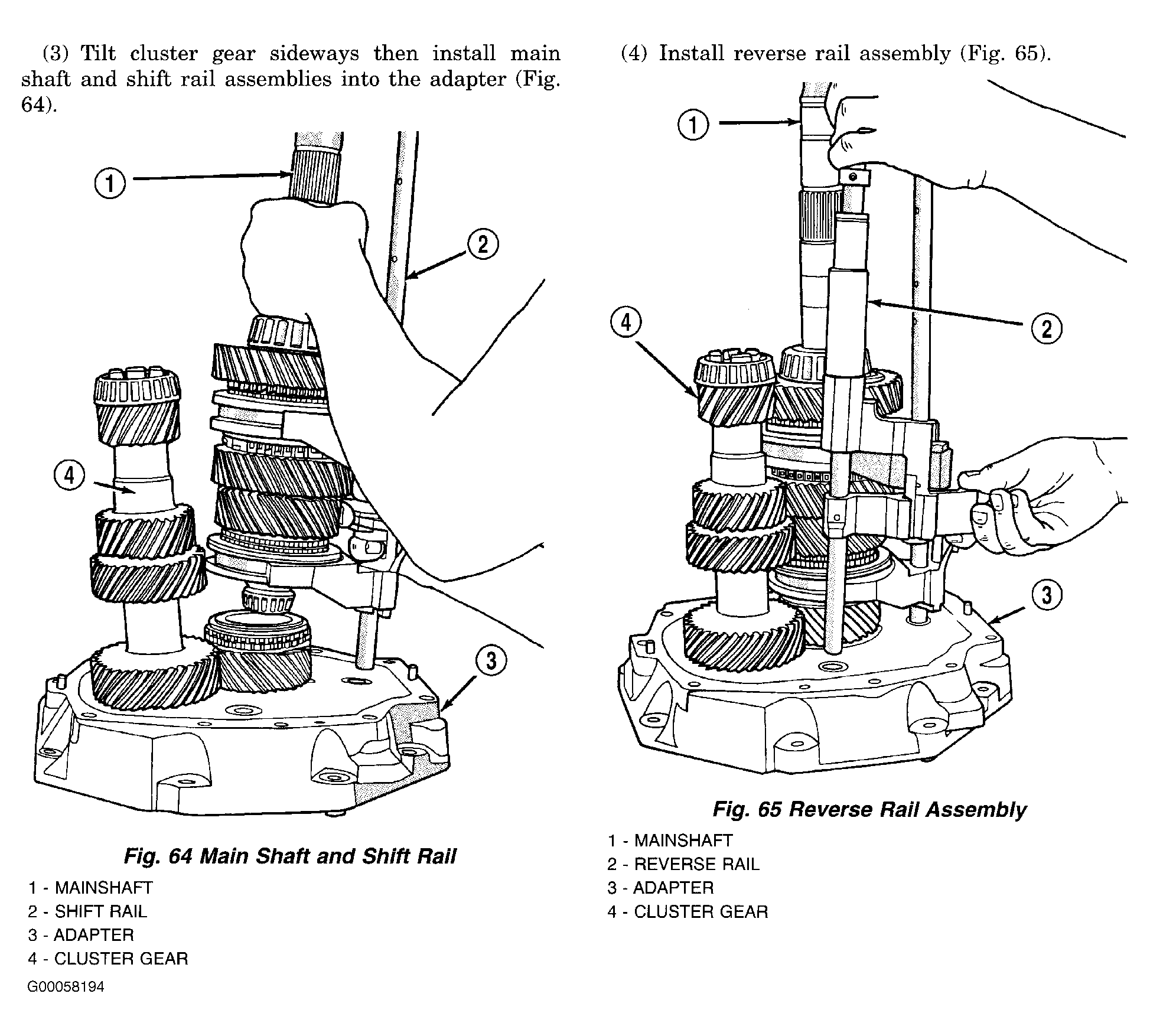

Fig 1: Transmission Assembly - Steps 1-2

Courtesy of DAIMLERCHRYSLER CORPORATION

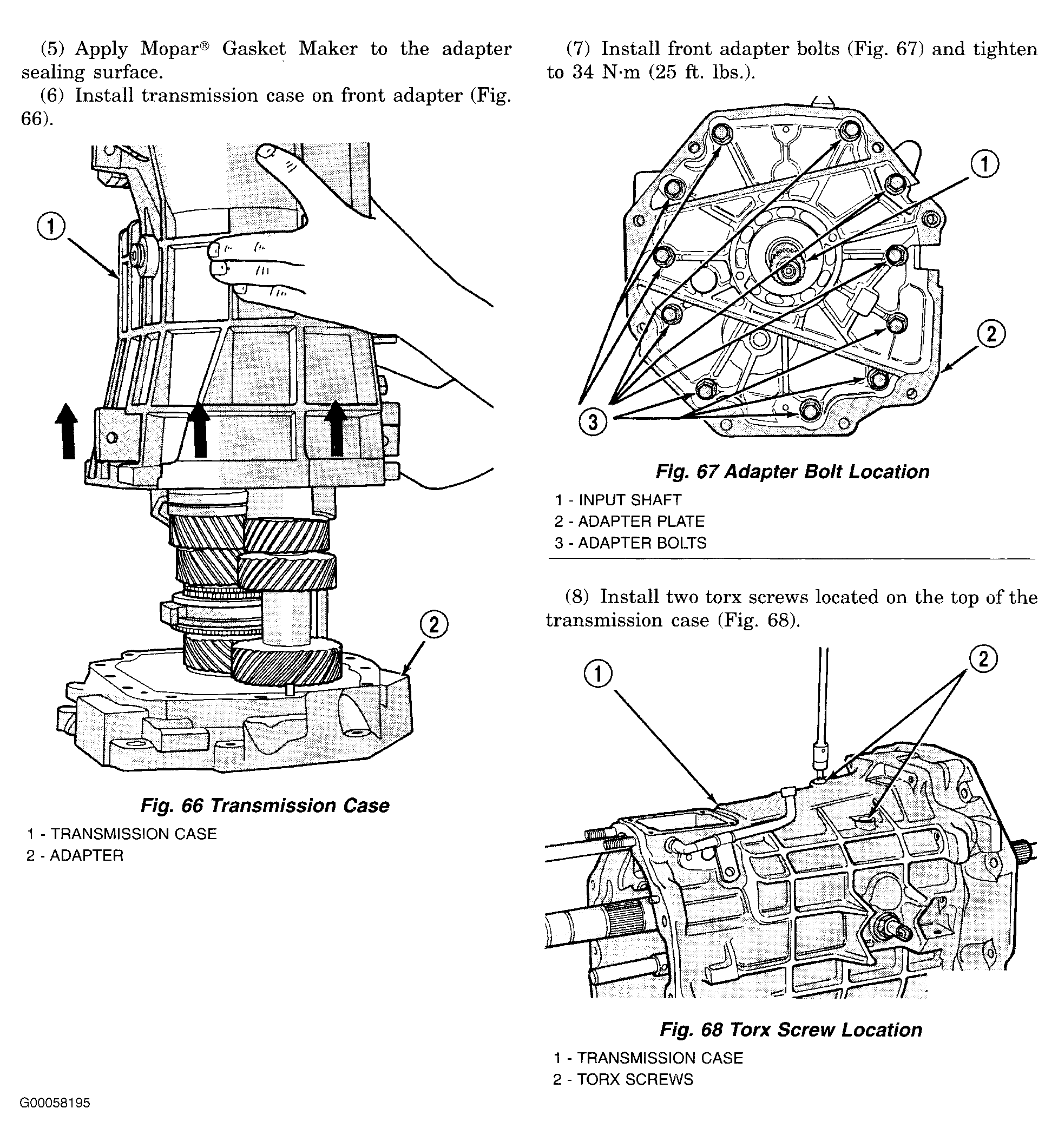

Fig 2: Transmission Assembly - Steps 3-4

Courtesy of DAIMLERCHRYSLER CORPORATION

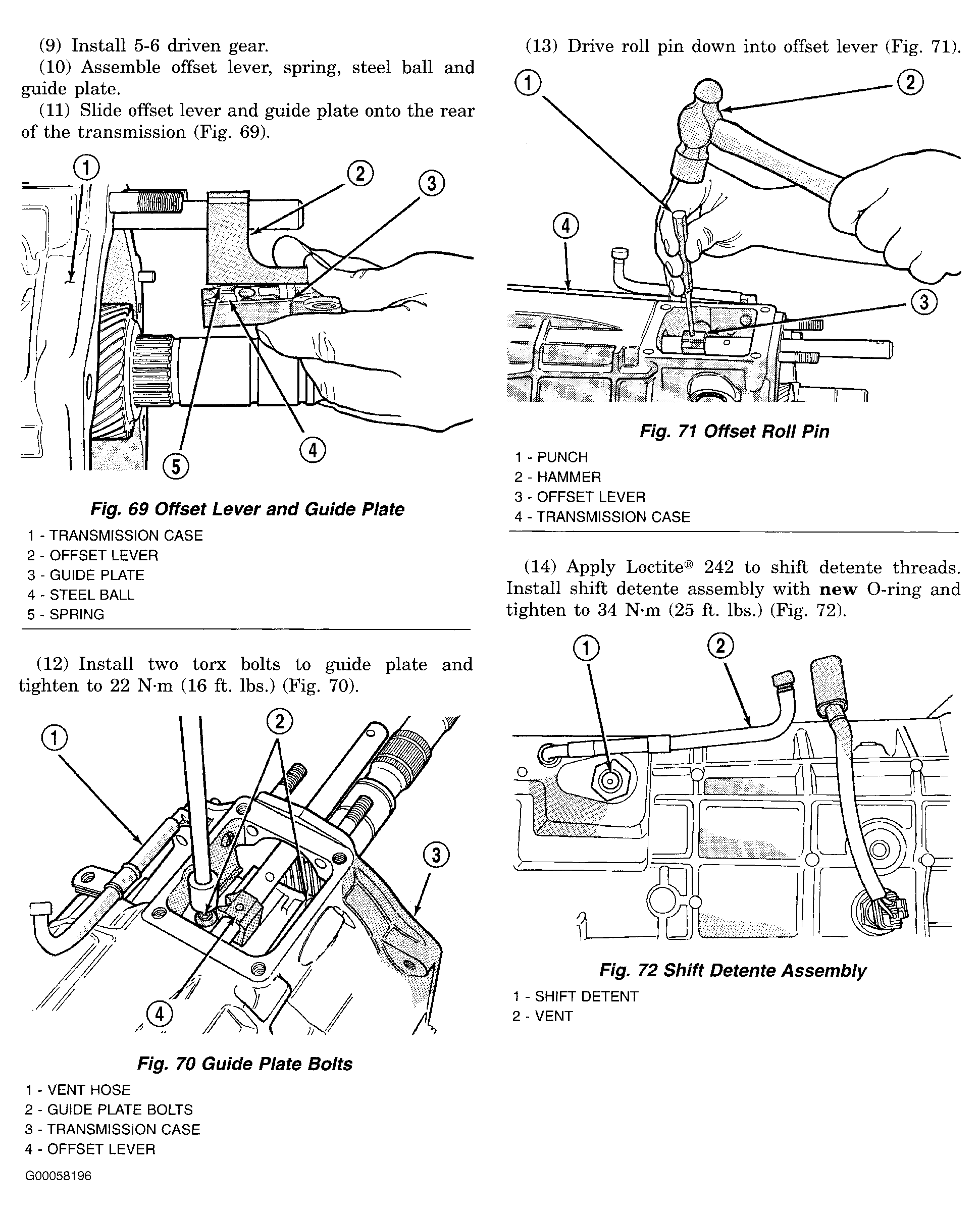

Fig 3: Transmission Assembly - Steps 5-8

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: Transmission Assembly - Steps 9-14

Courtesy of DAIMLERCHRYSLER CORPORATION

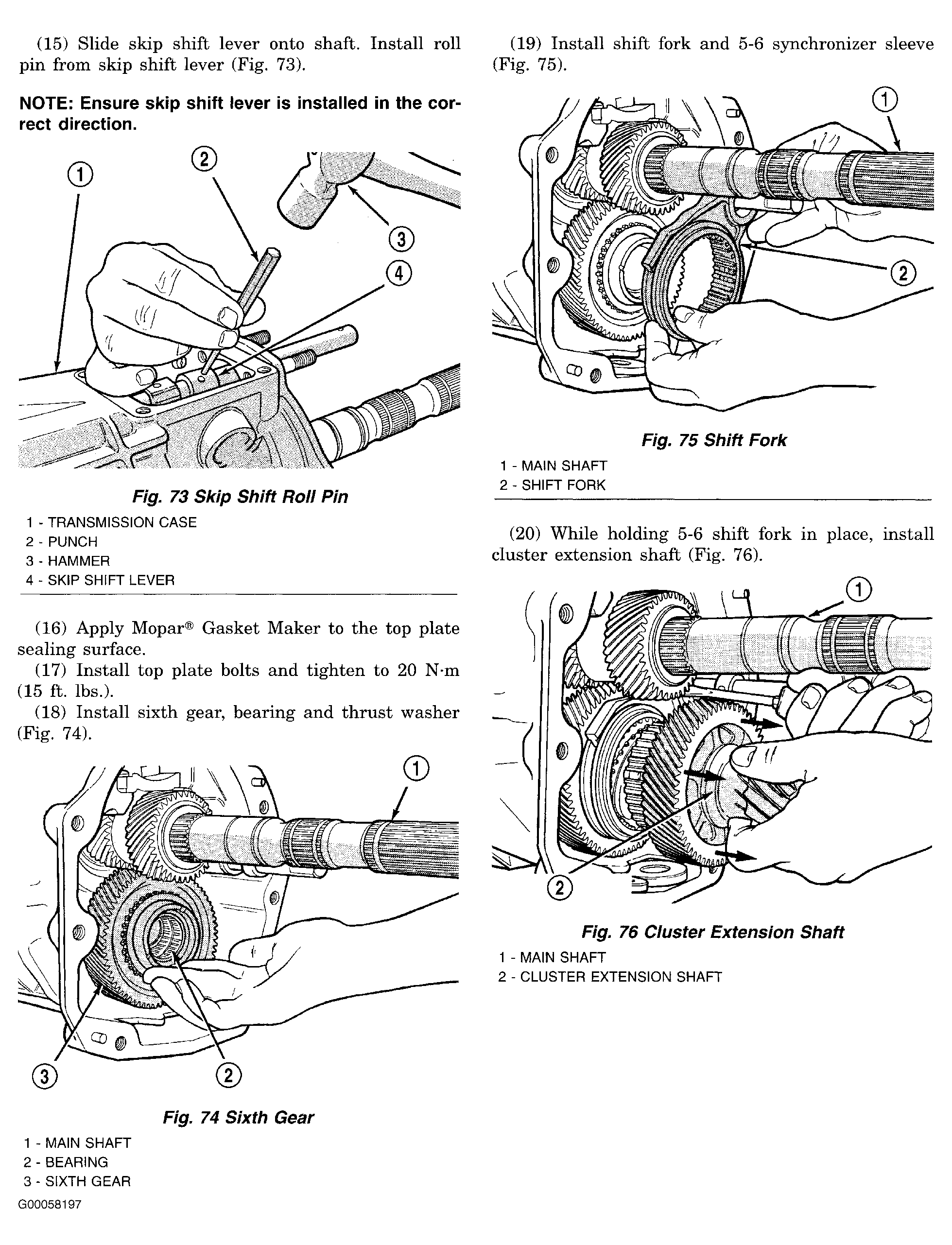

Fig 5: Transmission Assembly - Steps 15-20

Courtesy of DAIMLERCHRYSLER CORPORATION

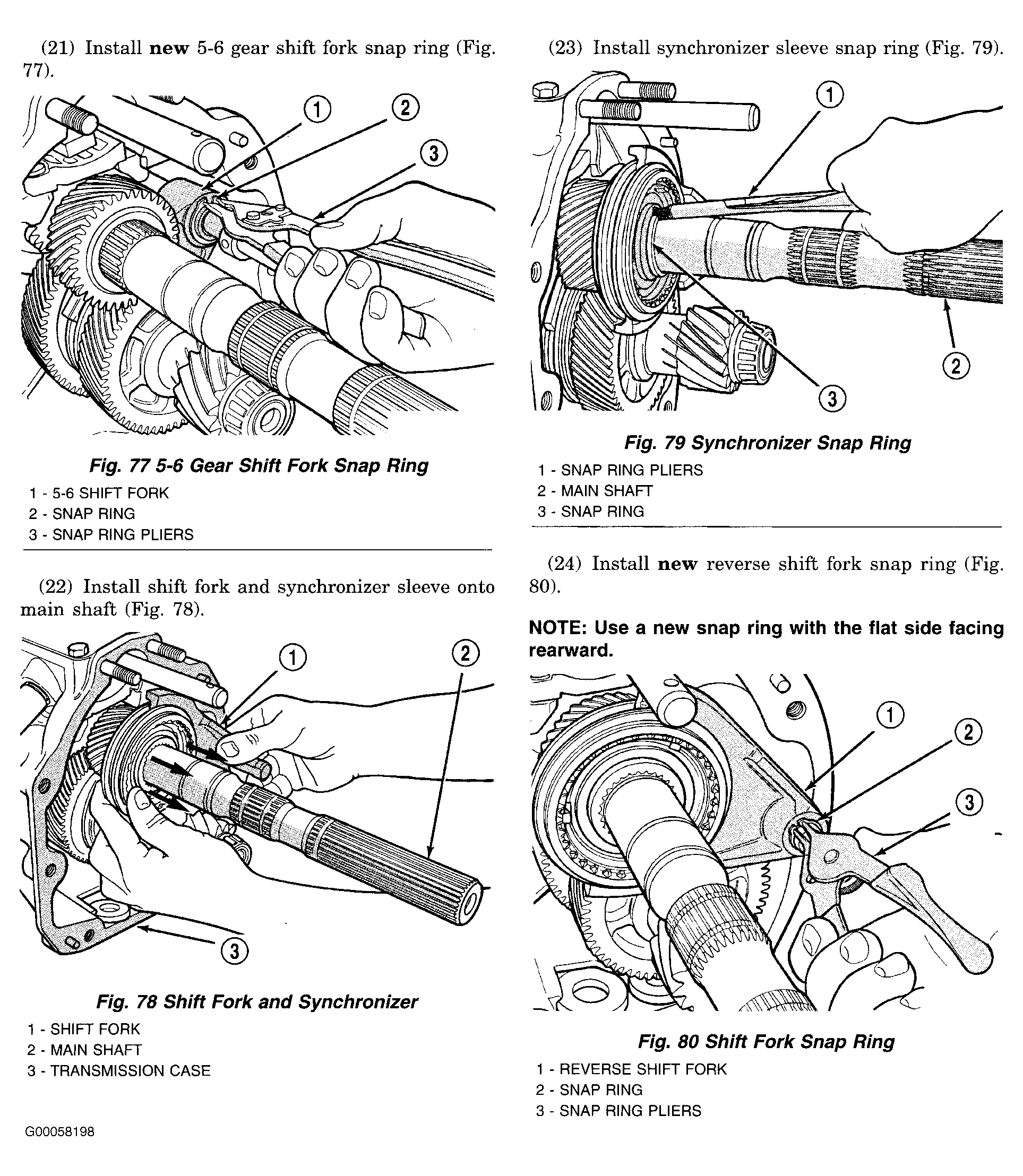

Fig 6: Transmission Assembly - Steps 21-24

Courtesy of DAIMLERCHRYSLER CORPORATION

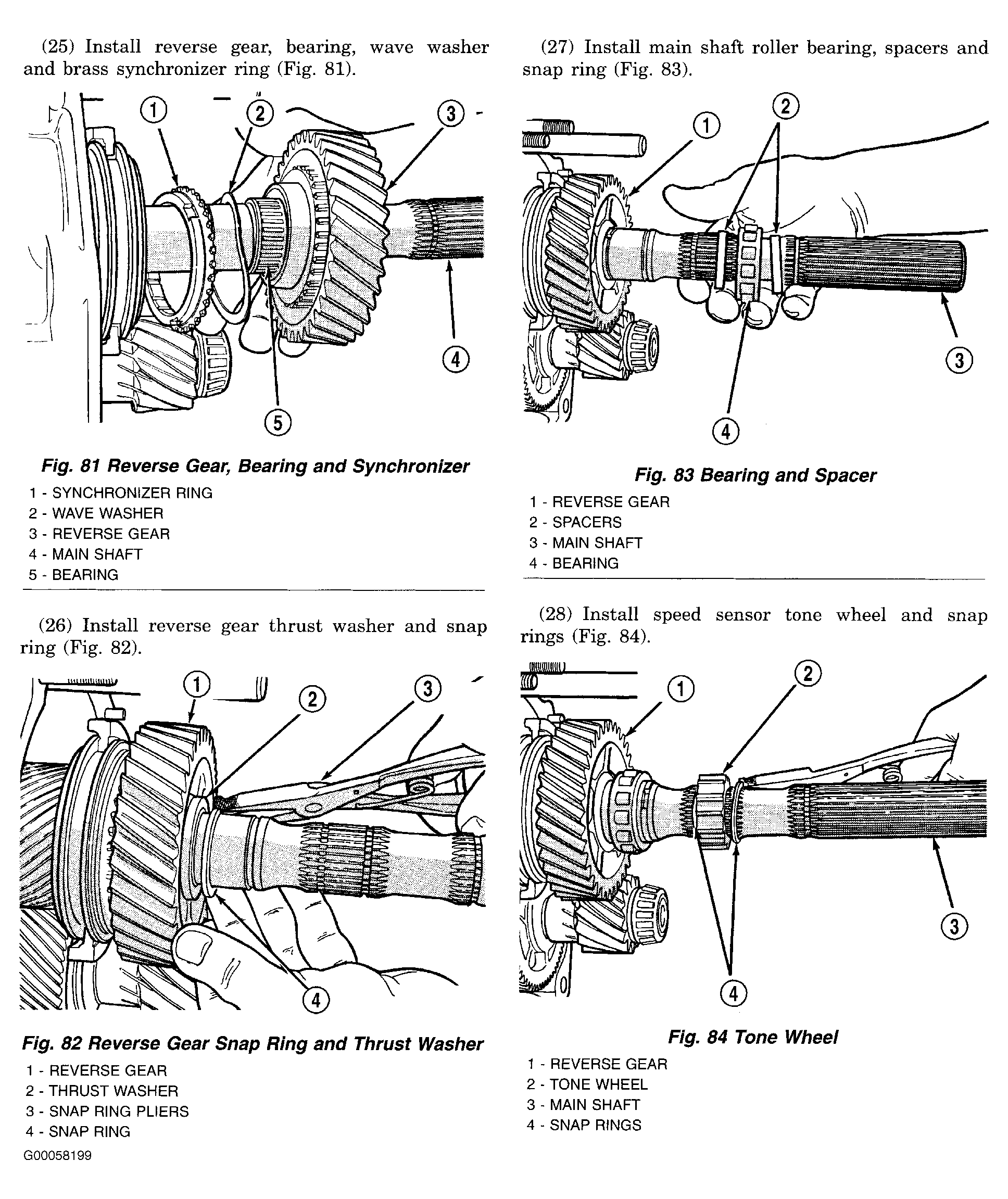

Fig 7: Transmission Assembly - Steps 25-28

Courtesy of DAIMLERCHRYSLER CORPORATION

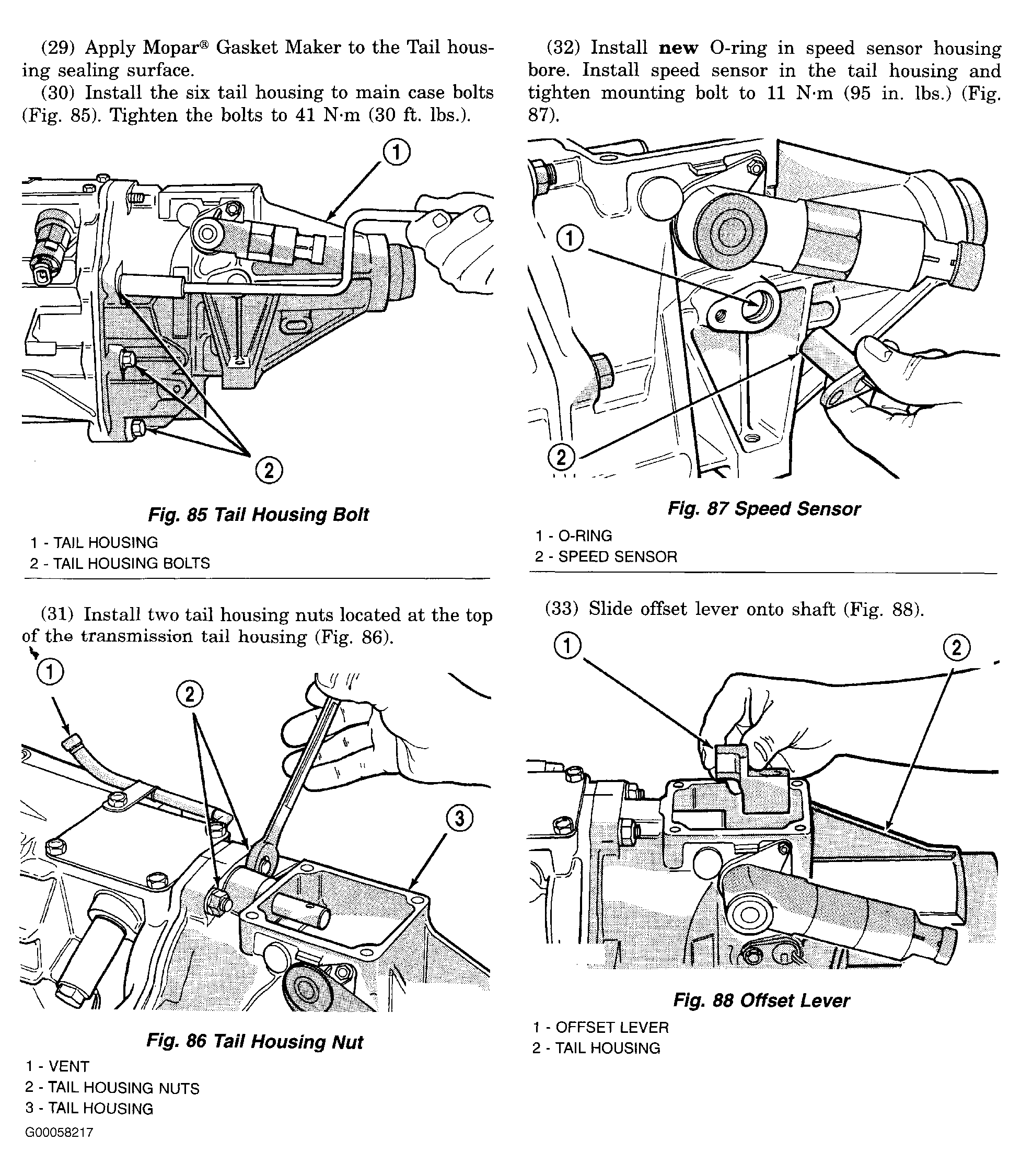

Fig 8: Transmission Assembly - Steps 29-33

Courtesy of DAIMLERCHRYSLER CORPORATION

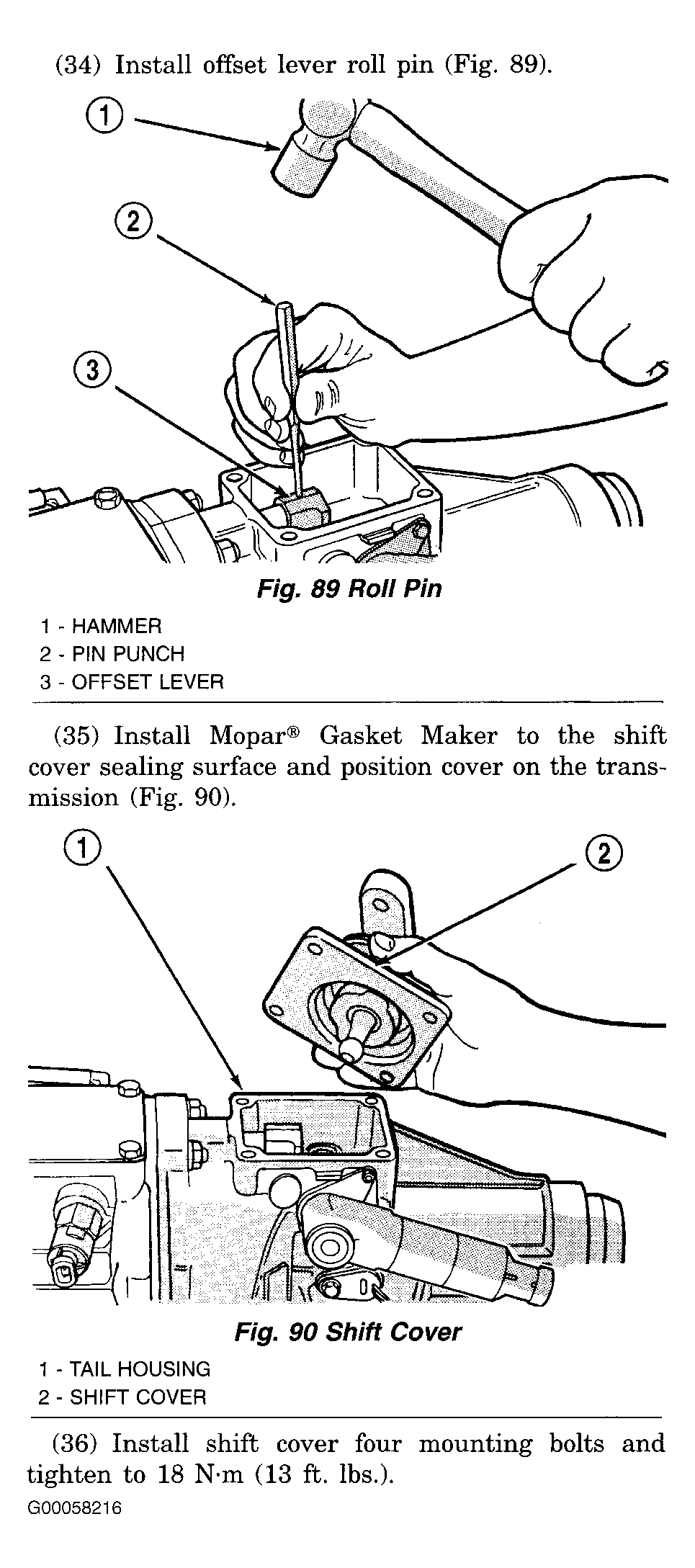

Fig 9: Transmission Assembly - Steps 34-36

Courtesy of DAIMLERCHRYSLER CORPORATION
