Test NTC-8A: Checking Map Sensor

NOTE: Perform Test NTC-1A Before Proceeding

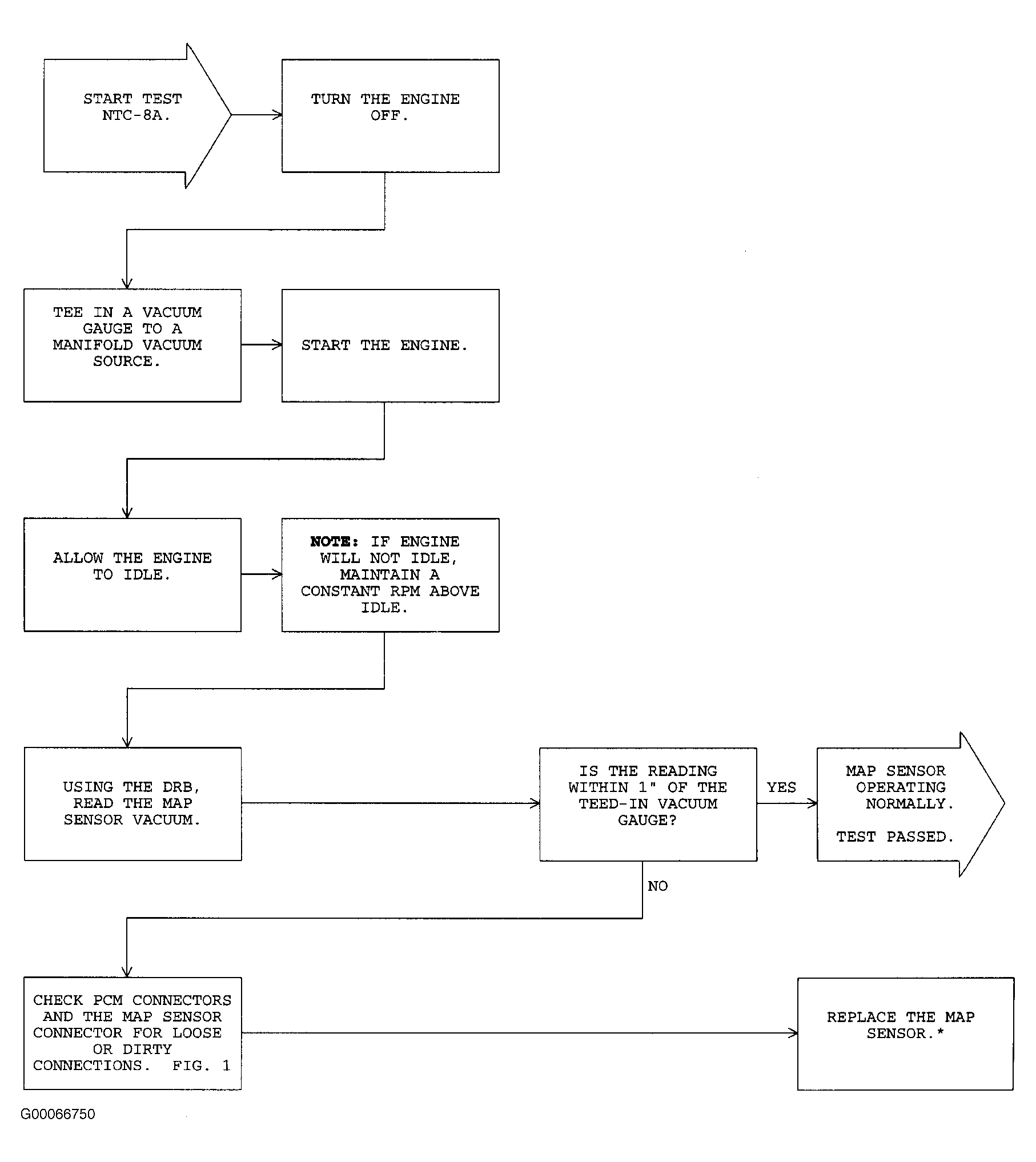

Fig 1: NTC-8A: Checking MAP Sensor (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: NTC-8A: Checking MAP Sensor (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
