DTC P0135-A: 1/1 O2 Sensor Heater Failure

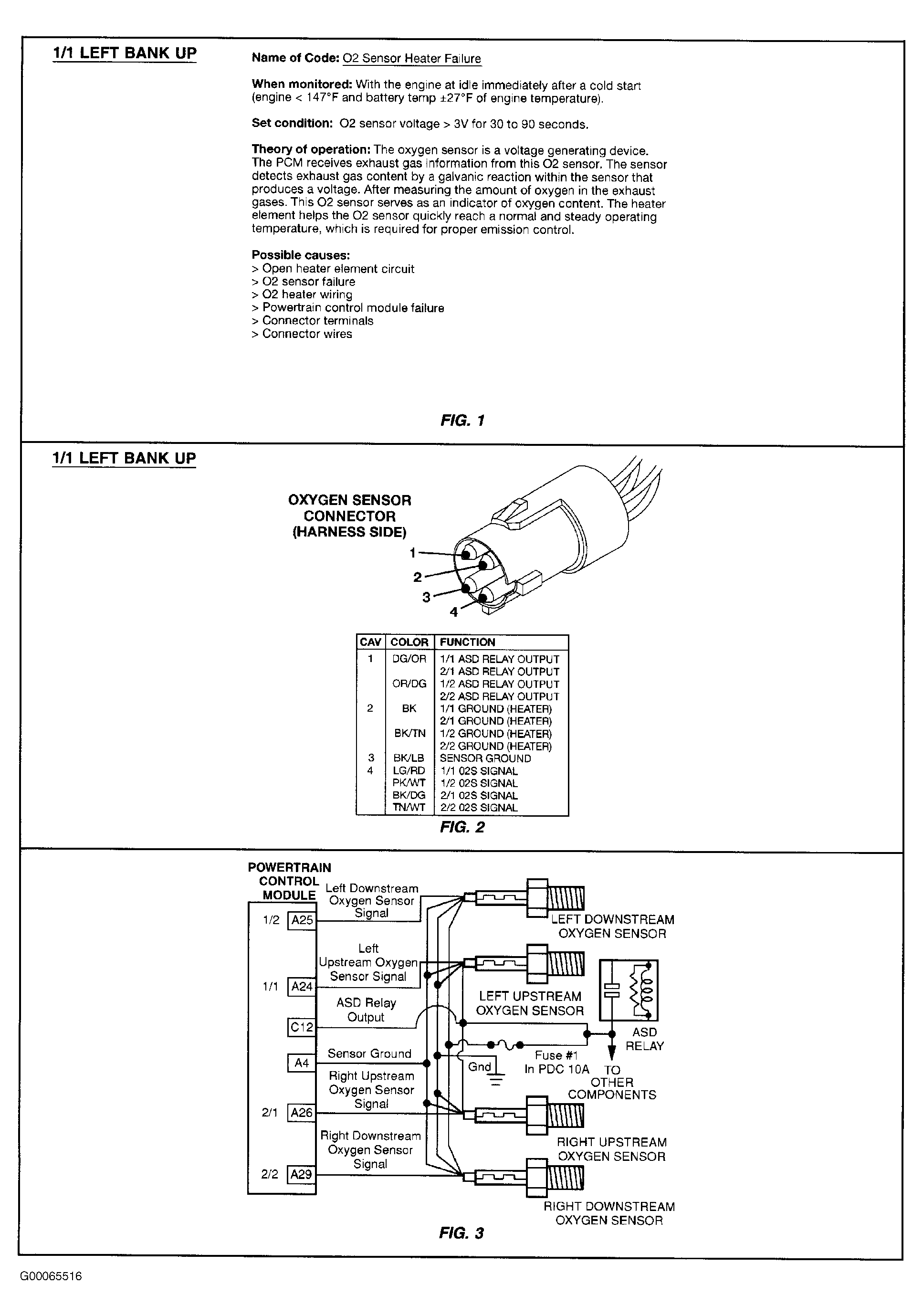

Fig 1: P0135-A: 1/1 O2 Sensor Heater Failure (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

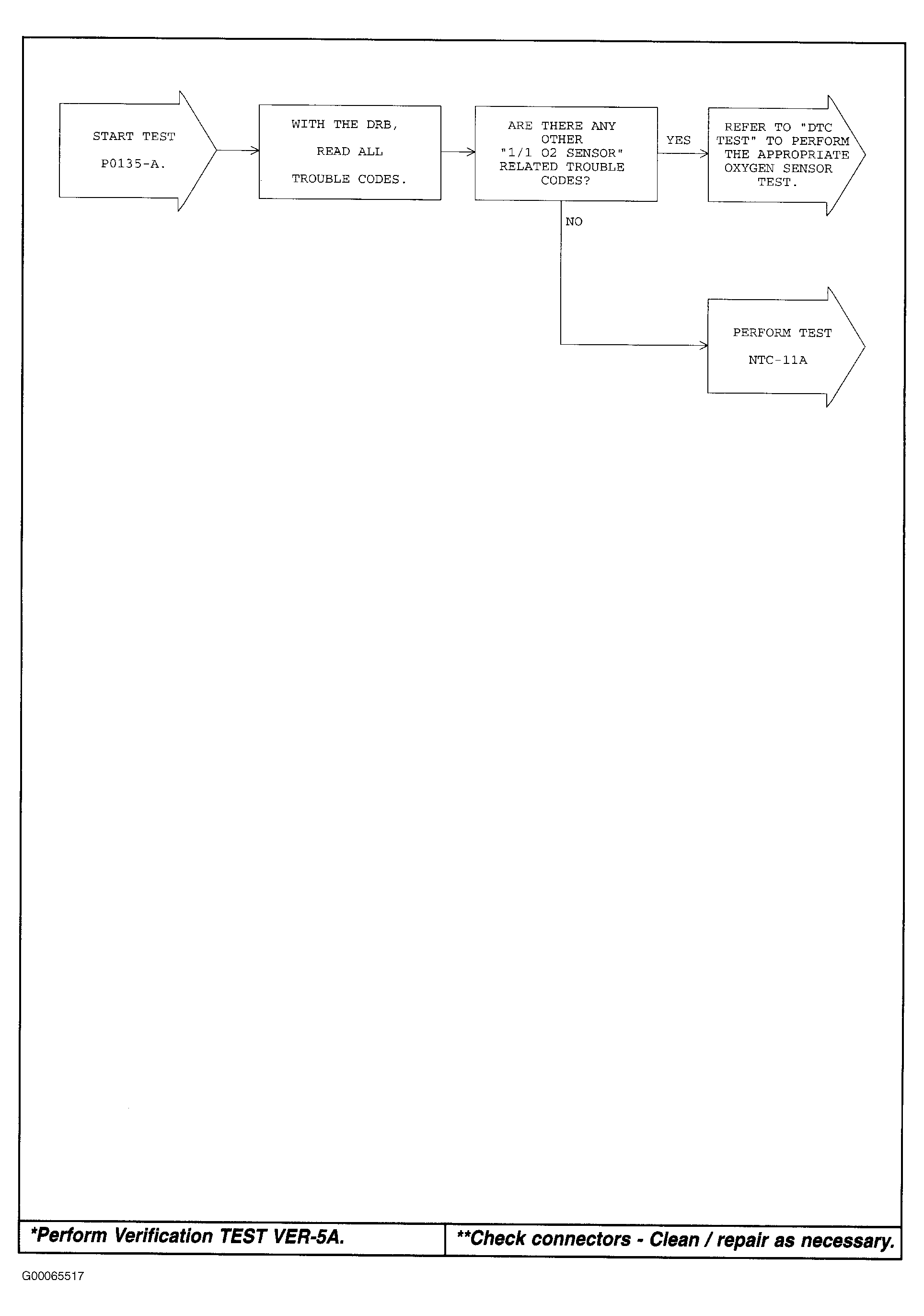

Fig 2: P0135-A: 1/1 O2 Sensor Heater Failure (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
