Sensor & Connector Identification

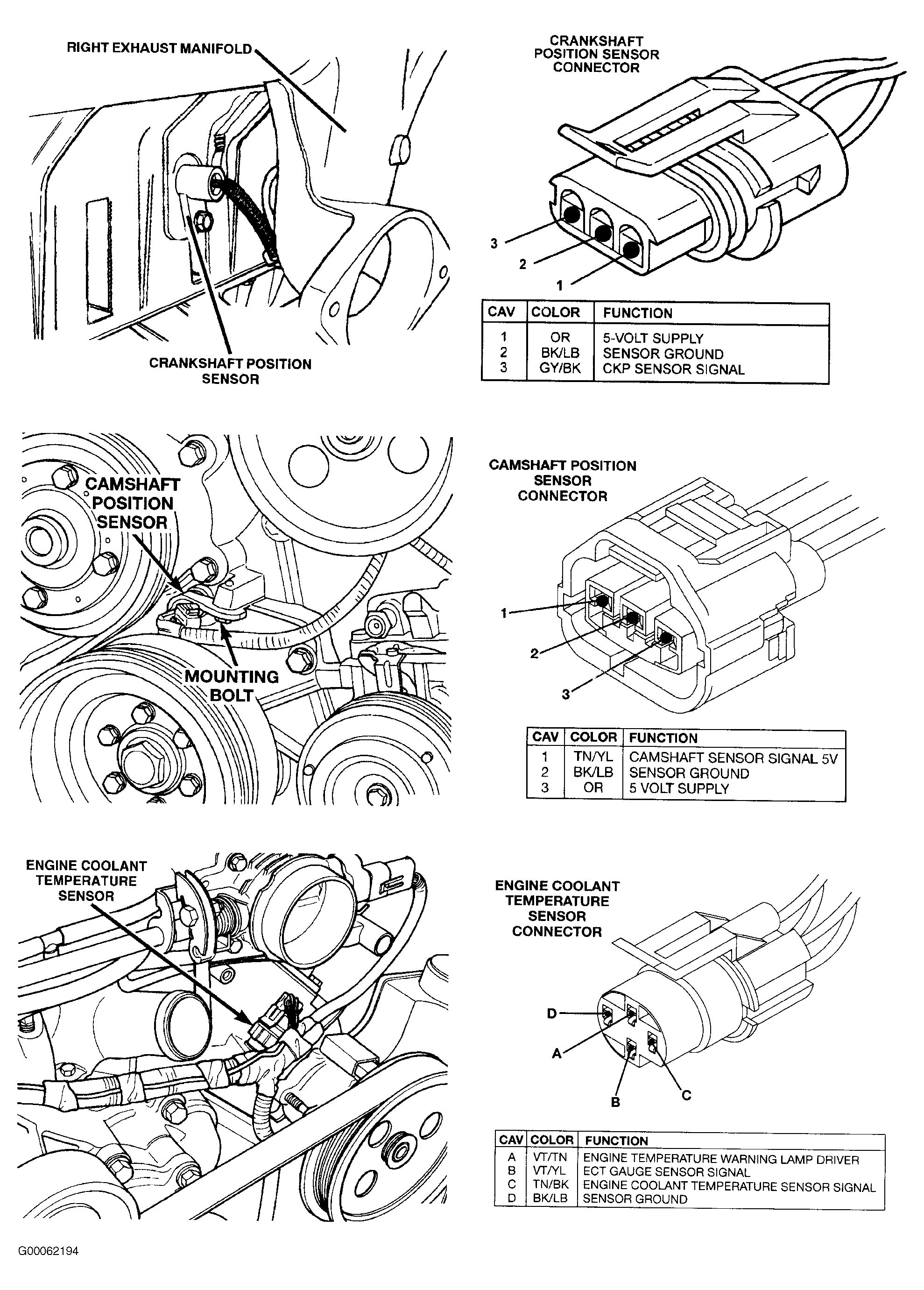

Fig 1: Sensor & Connector Identification (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Sensor & Connector Identification (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

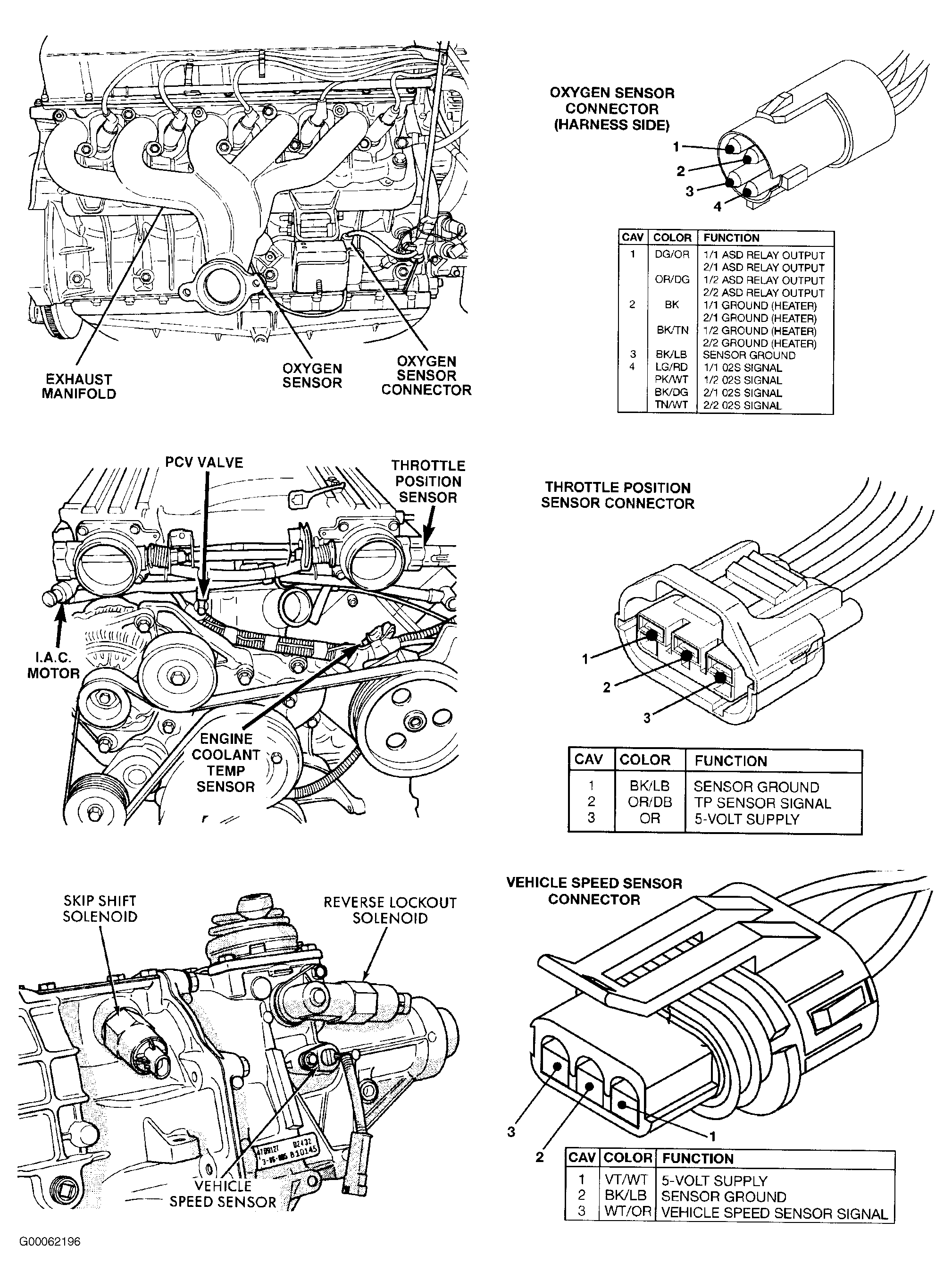

Fig 3: Sensor & Connector Identification (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

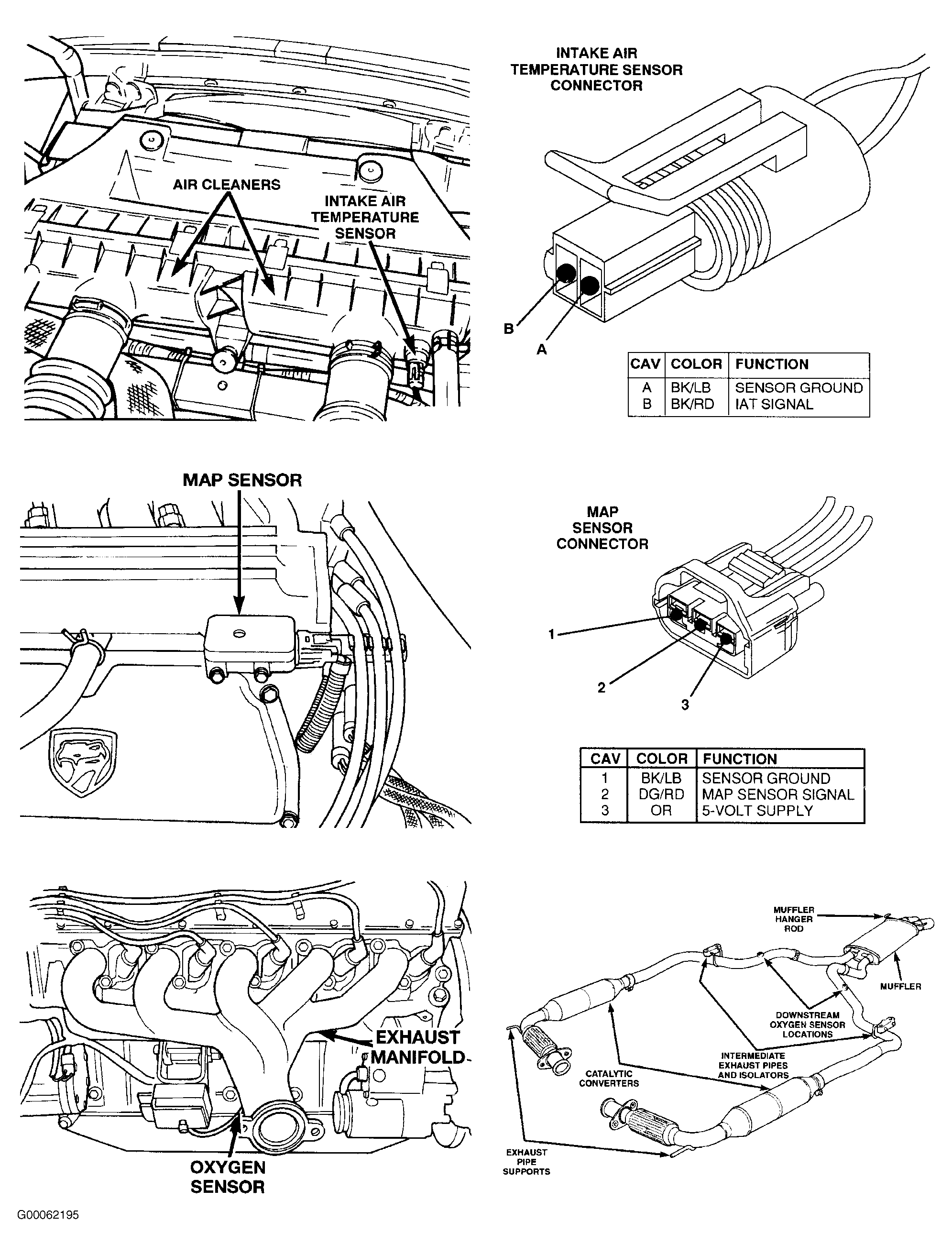

Fig 4: Sensor & Connector Identification (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
