Test NTC-16A: Checking Brake Switch

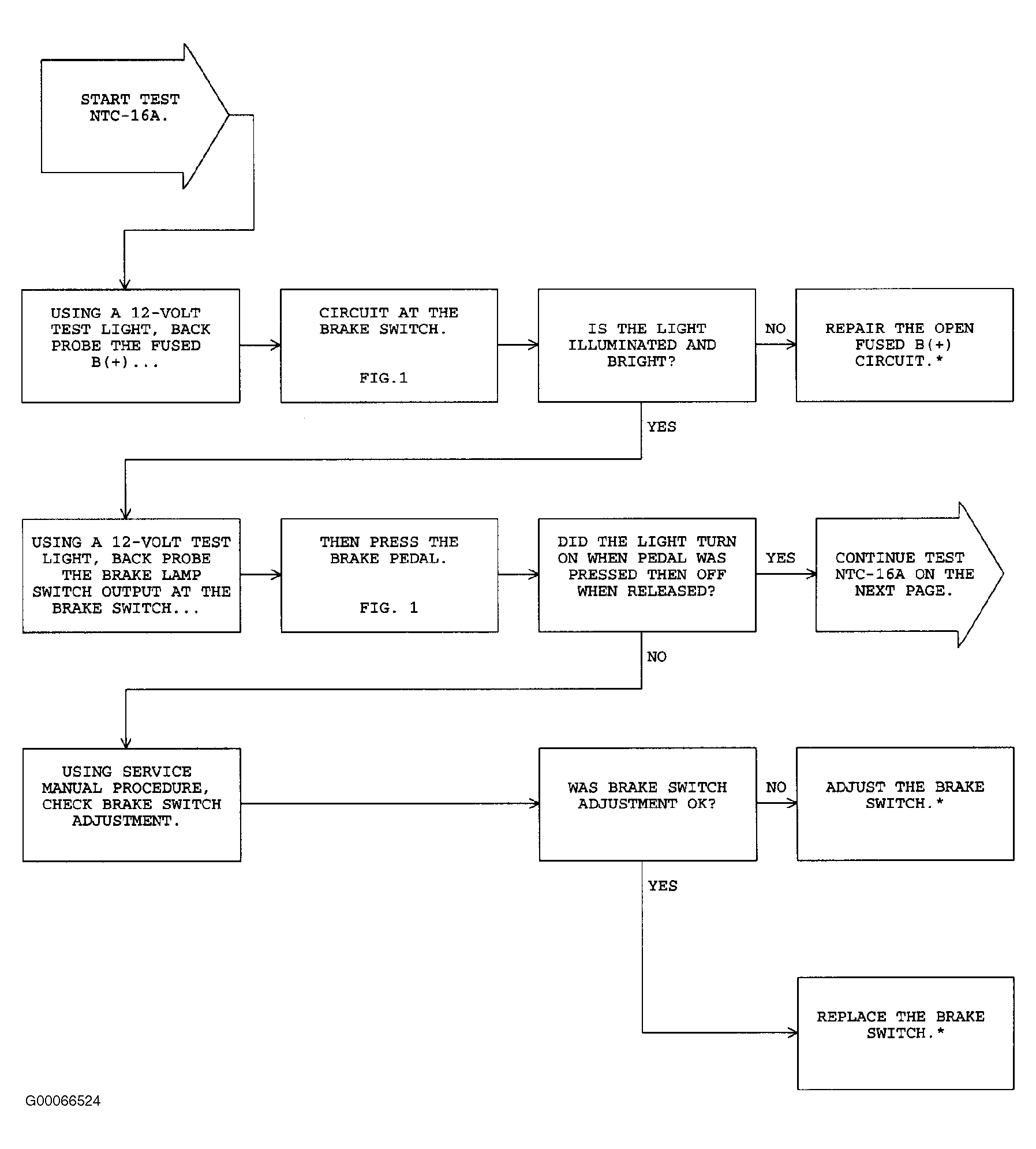

Fig 1: NTC-16A: Checking Brake Switch (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

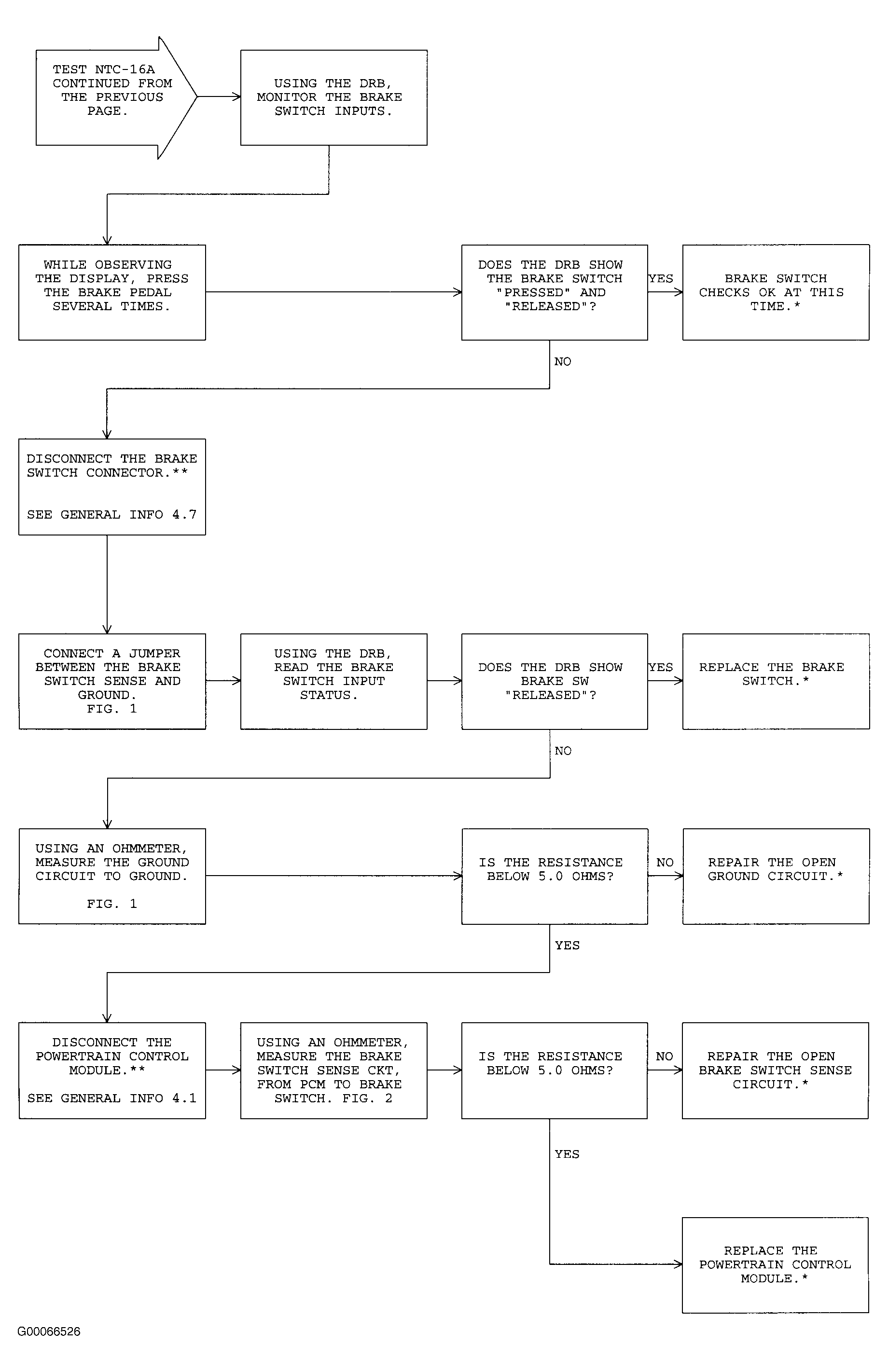

Fig 2: NTC-16A: Checking Brake Switch (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

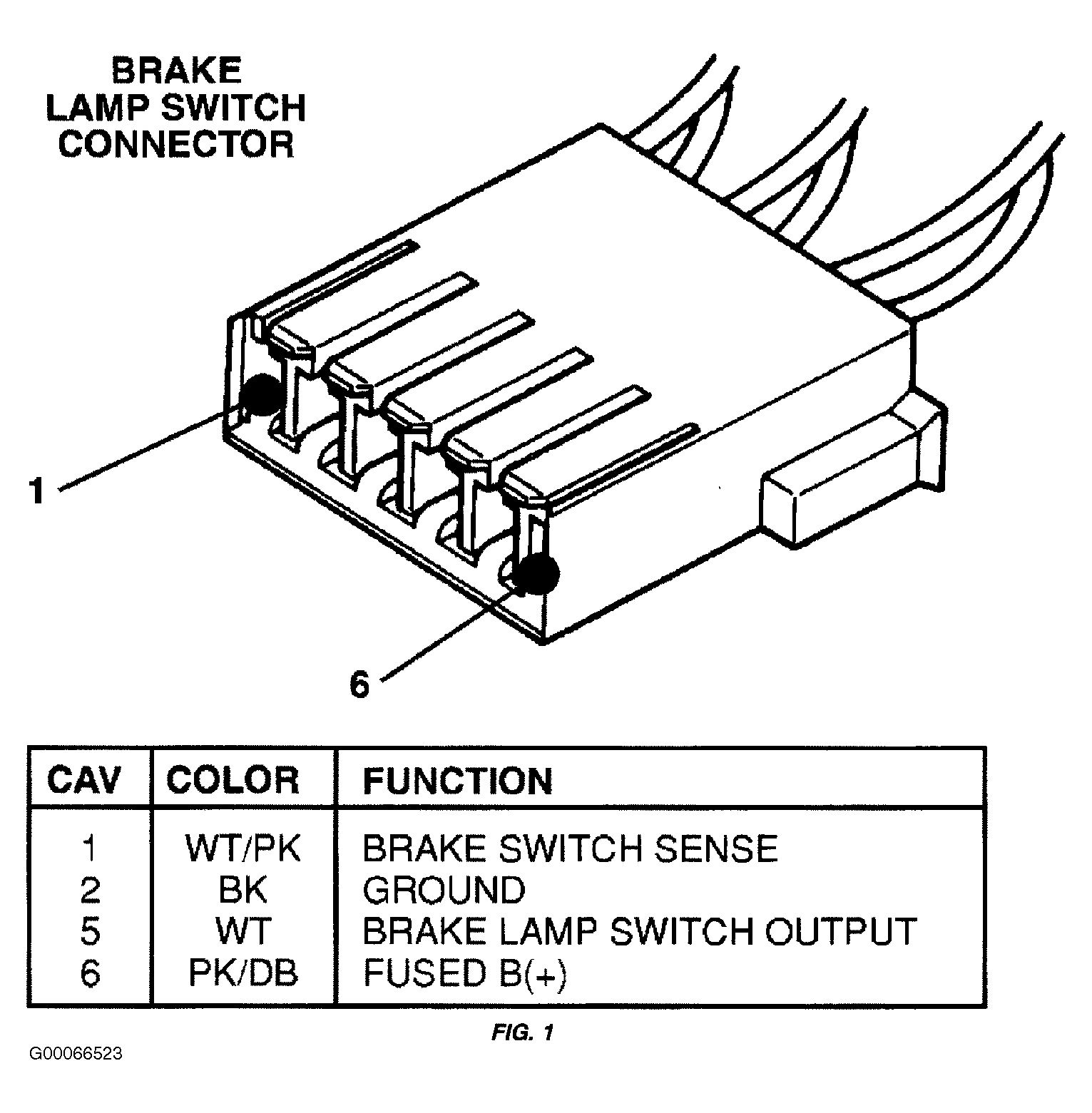

Fig 3: NTC-16A: Checking Brake Switch (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

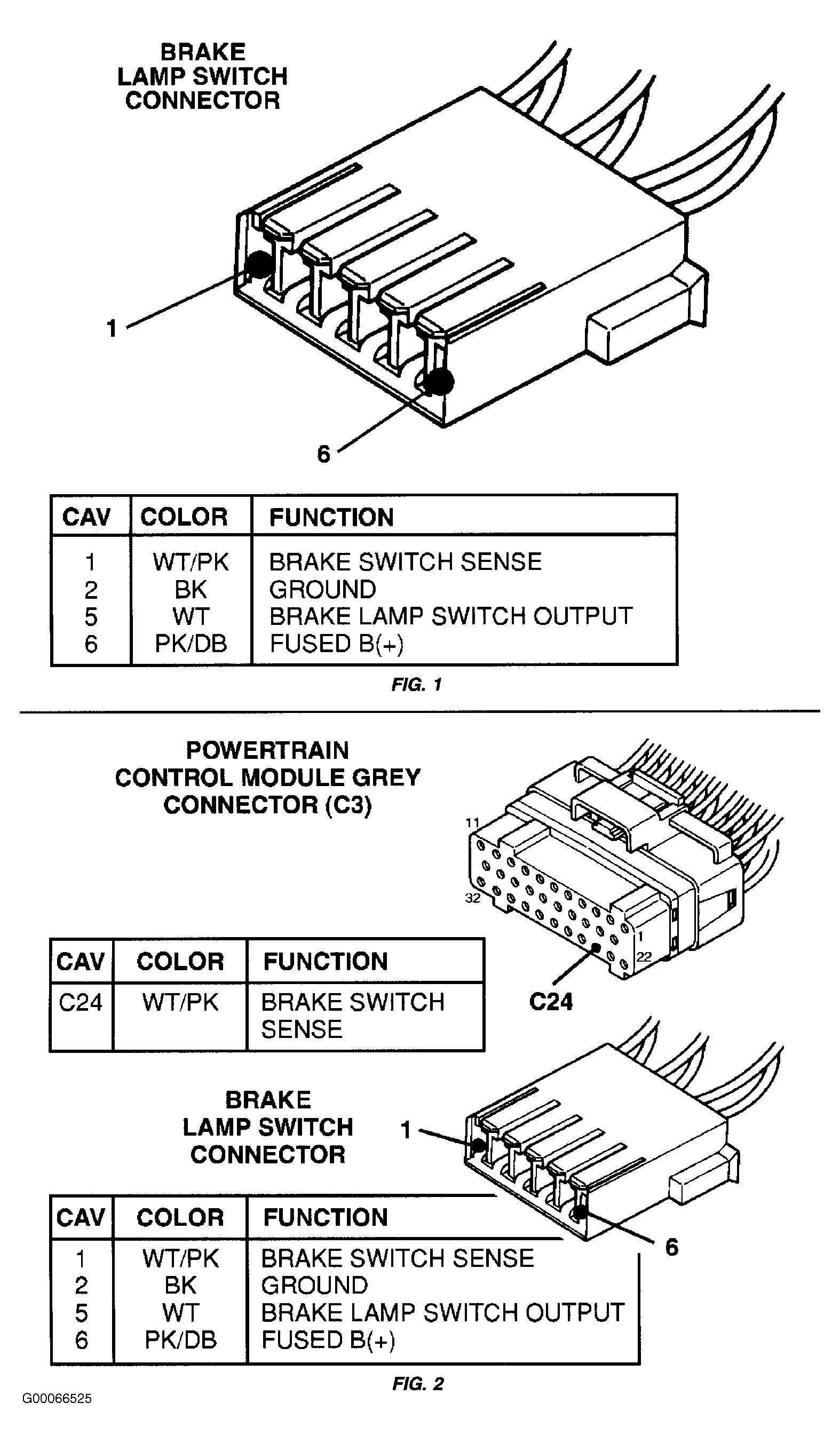

Fig 4: NTC-16A: Checking Brake Switch (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
