Diagnostic Trouble Code Definitions

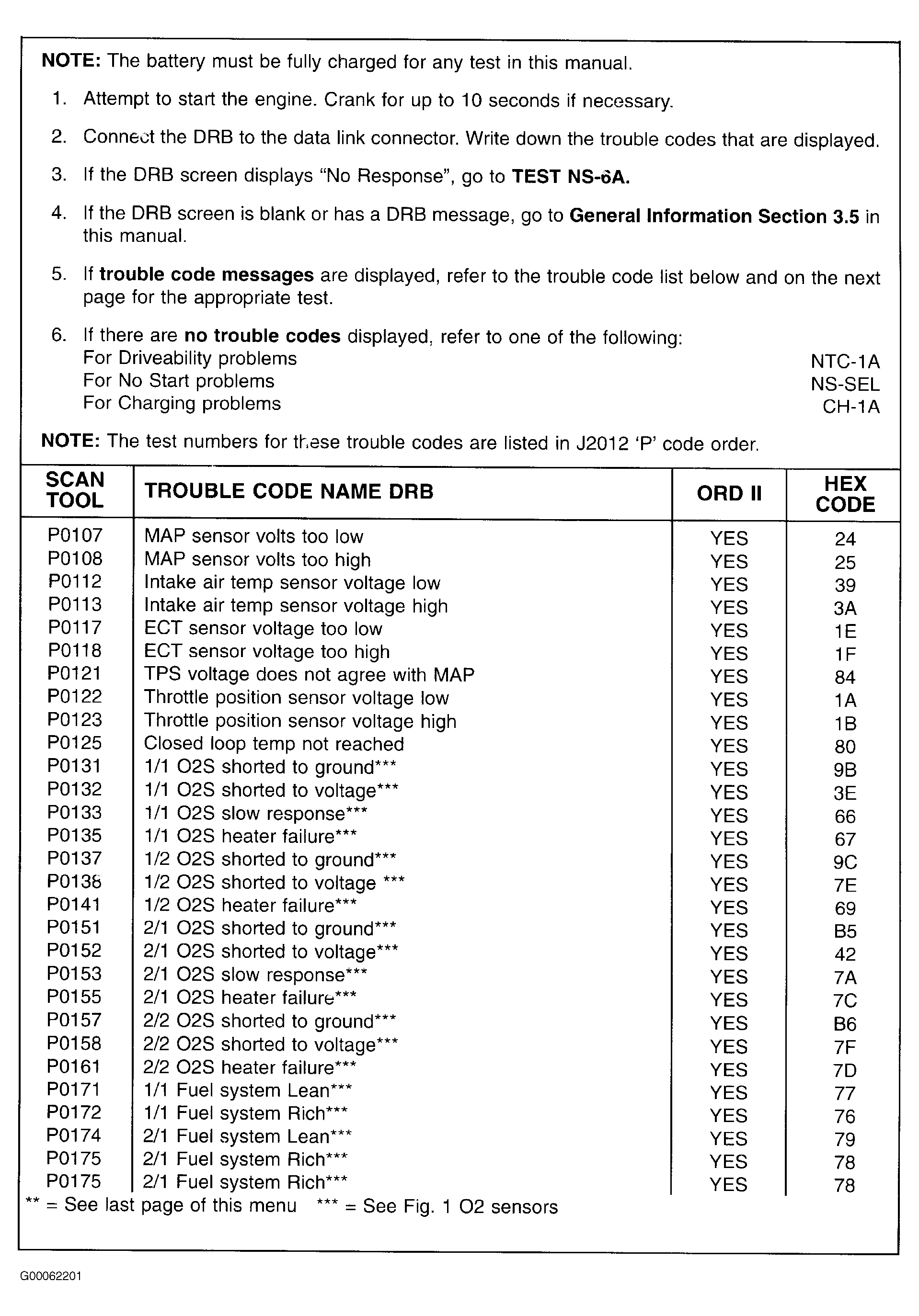

Fig 1: DTC Definitions (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

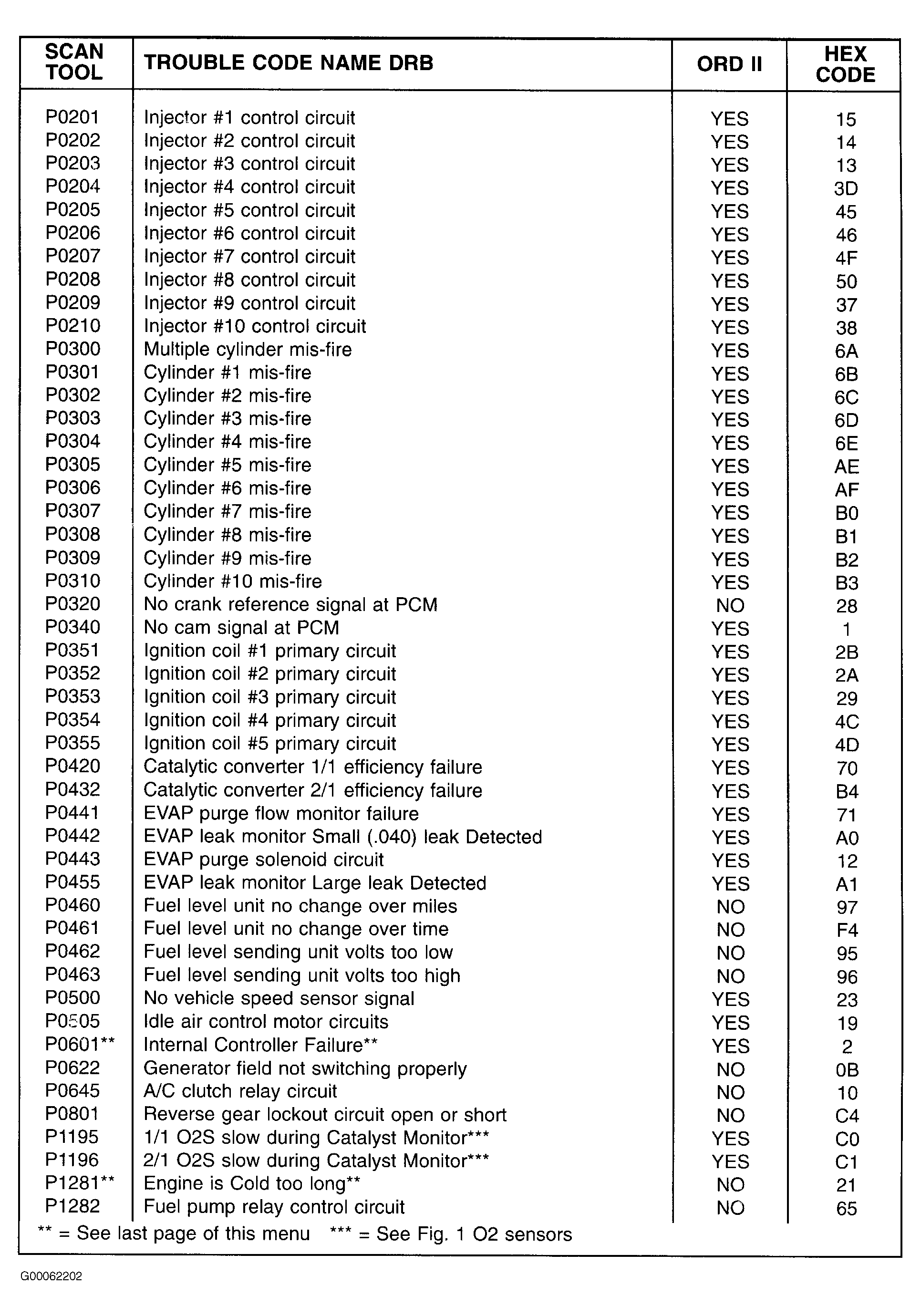

Fig 2: DTC Definitions (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

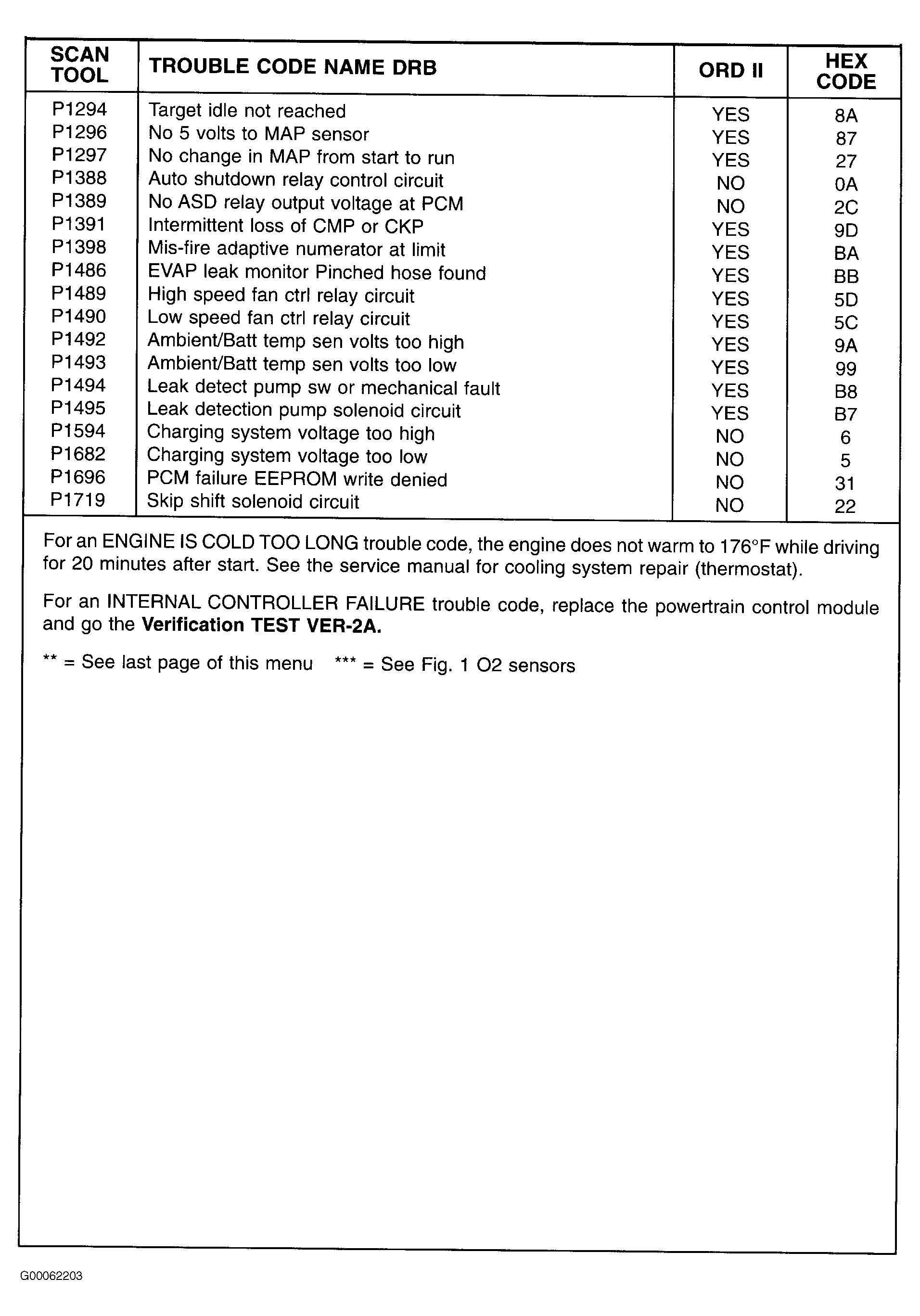

Fig 3: DTC Definitions (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION
