Test VER-3A: Charging Verification
Test VER-3A: Charging Verification

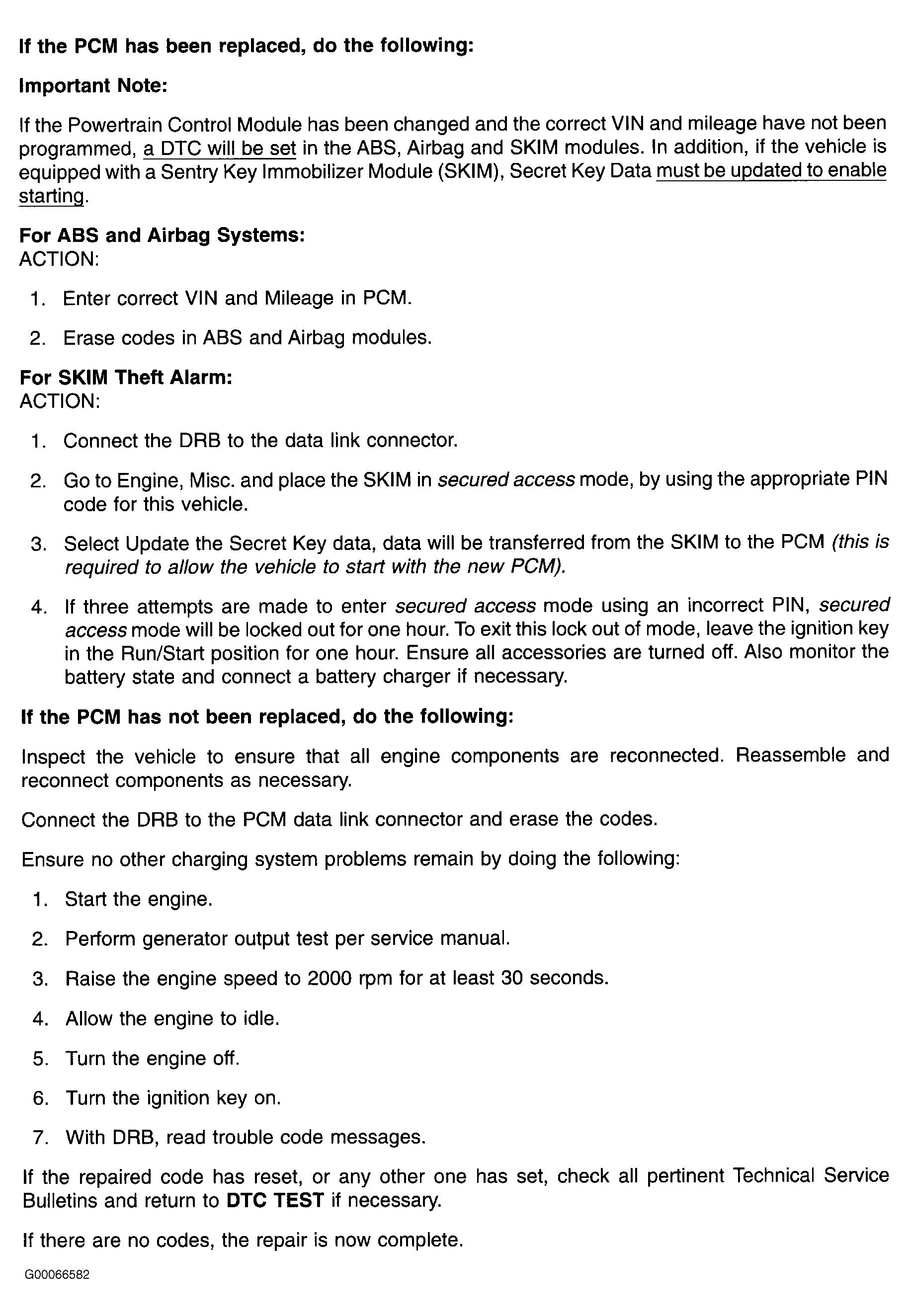

Fig 1: VER-3A: Charging Verification
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
