Engine Controls - Self-Diagnostics
›
Connector Identification
›
Controller Anti-Lock Brake (CAB) Module Connector C1 End View
Controller Anti-Lock Brake (CAB) Module Connector C1 End View

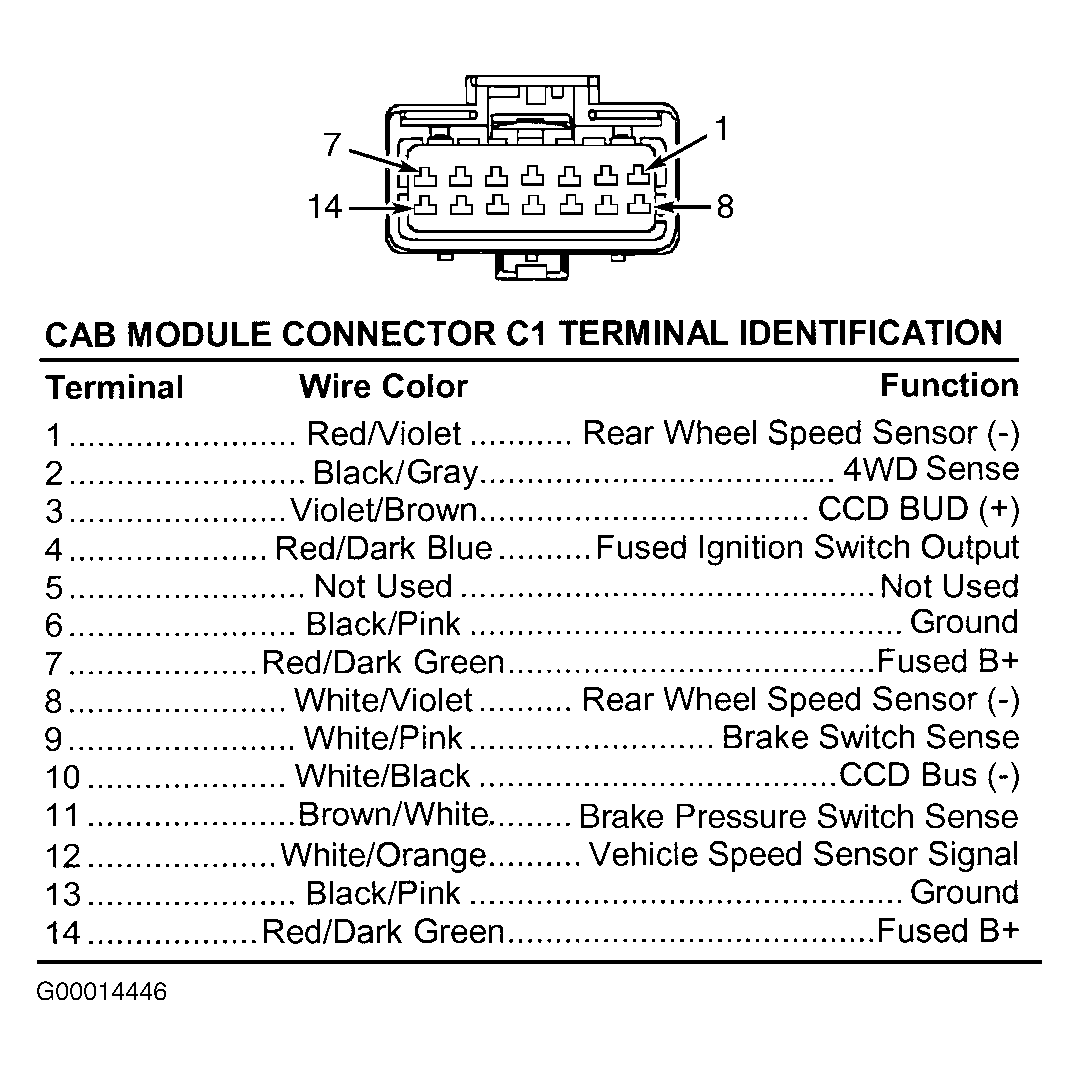

Fig 1: Identifying Controller Anti-Lock Brake (CAB) Module Connector C1 Terminals
Courtesy of DAIMLERCHRYSLER CORPORATION
