Connector Identification: Notes
CONNECTOR IDENTIFICATION DIRECTORY
| Connector | Illustration | |
|---|---|---|
| Battery Temperature Sensor | Figure | |

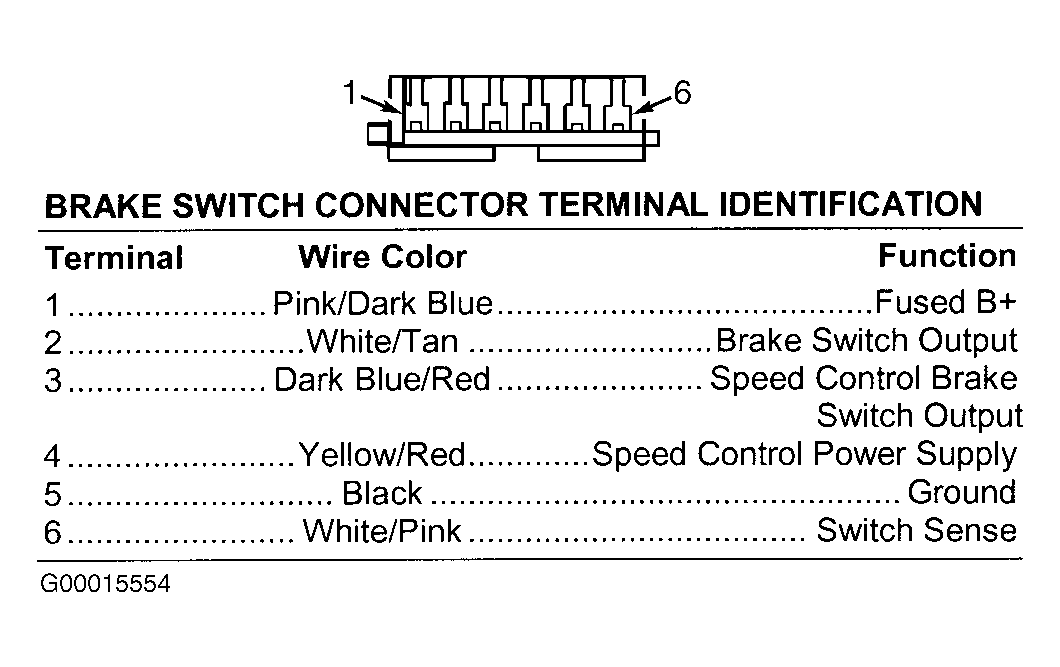

| Brake Switch | Figure | |
| Camshaft Position Sensor | Figure | |
| Coil On Plug (4.7L) | Figure | |
| Controller Anti-Lock Brake (CAB) Module Connector C1 | Figure | |
| Crankshaft Position Sensor | Figure | |
| Data Link Connector | Figure | |
| Engine Coolant Temperature Sensor | ||
| 2.5L | Figure | |
| 3.9L & 5.9L | Figure | |
| 4.7L | Figure | |
| Engine Oil Pressure Sensor | Figure | |
| EVAP Purge Solenoid | Figure | |
| Fuel Injector | ||
| 2.5L | Figure | |
| 3.9L, 4.7L & 5.9L | Figure | |
| Fuel Pump Module | Figure | |
| Idle Air Control Motor | Figure | |
| Ignition Coil (2.5L, 3.9L & 5.9L) | Figure | |
| Intake Air Temperature Sensor | Figure | |

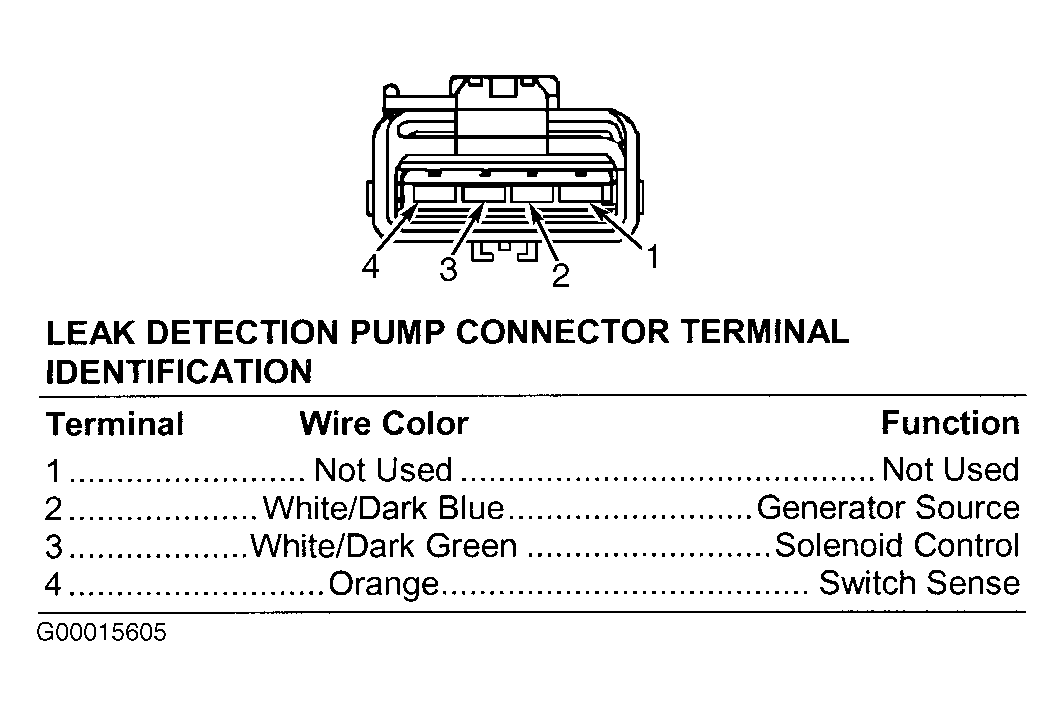

| Leak Detection Pump | Figure | |

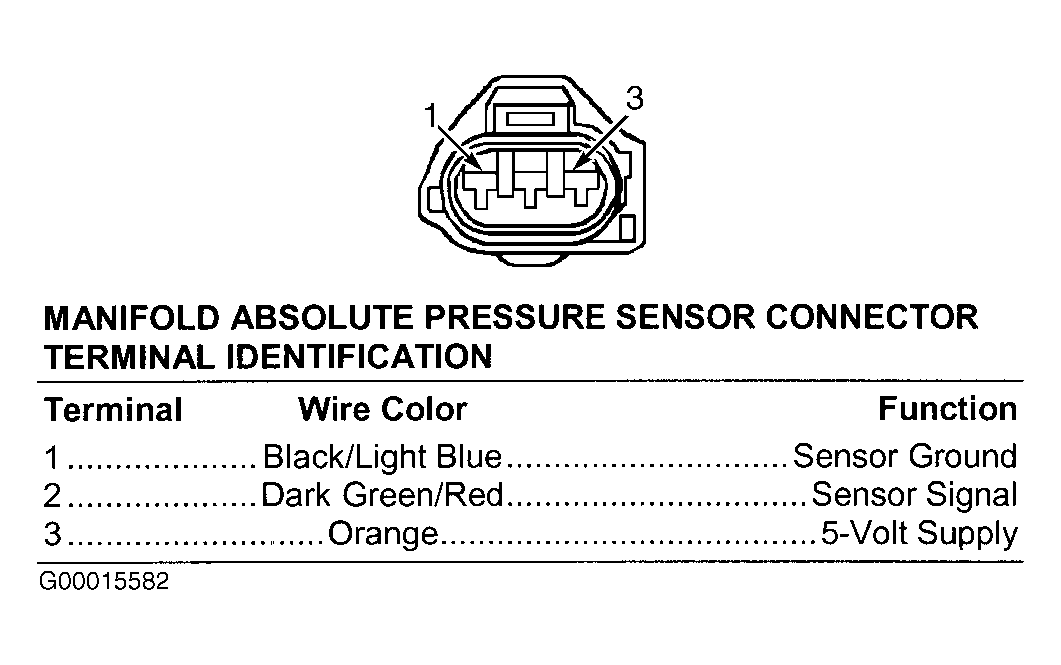

| Manifold Absolute Pressure Sensor | ||
| 2.5L, 3.9L & 5.9L | Figure | |
| 4.7L | Figure | |
| Oxygen Sensor | Figure | |
| Park/Neutral Switch (3.9L & 5.9L) | Figure | |
| Power Steering Pressure Switch | ||
| 2.5L | Figure | |
| 4.7L | Figure | |
| Powertrain Control Module Connectors | Figure | |
| Throttle Position Sensor | Figure | |
| Transmission Control Module (4.7L) | Figure | |
| Transmission Solenoid Assembly (3.9L & 5.9L) | Figure | |
| Transmission Solenoid Assembly (4.7L) | Figure | |
