| Air Injection Pump |
| Mounting Bolt |
30 (40) |
| Pulley Bolts |
|
| Crankshaft Position Sensor Bolt |
| 2.5L |
14 (19) |
| 3.9L, 5.2L & 5.9L |
|
| 4.7L |
21 (28) |
| 8.0L |
|
| Downstream Oxygen Sensor |
22 (30) |
| Distributor Hold-Down Bolt |
17 (23) |
| Engine Coolant Temperature Sensor |
| Except 8.0L |
8 (11) |
| 8.0L |
|
| Fuel Pump Module Lock Nut |
| Dakota |
40 (54) |
| Ram Pickup |
18-32 (24-44) |
| Ram Van & Ram Wagon |
40 (54) |
| Fuel Rail Bolt |
| 2.5L |
|
| 3.9L, 5.2L & 5.9L |
17 (23) |
| 4.7L |
20 (27) |
| 8.0L |
|
| Fuel Tank Strap Nut |
| Dakota & Durango |
30-40 (27-54) |
| Ram Pickup |
30 (41) |
| Ram Van & Ram Wagon |
|
| IAT Sensor |
| Except 8.0L |
20 (27) |
| 8.0L |
|
| Park/Neutral Switch |
25 (34) |
| Spark Plug |
30 (41) |

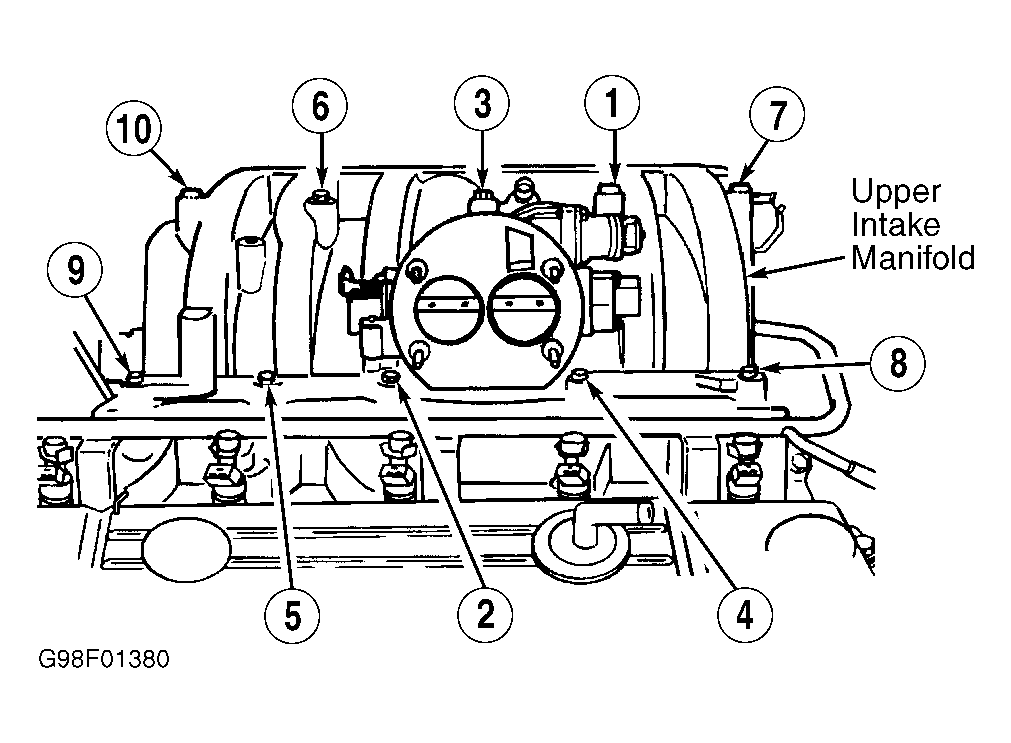

| Upper Intake Manifold Bolt (8.0L) |
16 (22) |
| Upstream Oxygen Sensor |
22 (30) |
| Wheel Lug Nut (Dakota & Durango) |
100 (136) |
| INCH Lbs. (N.m) |
| Air Cleaner Housing-To-Throttle Body Clamp (Except Ram Pickup 8.0L) |
96 (10.8) |
| Air Cleaner Housing-To-Throttle Body Nut (Ram Pickup 8.0L) |
96 (10.8) |
| Camshaft Position Sensor Bolt |
| 4.7L |
106 (12) |
| 8.0L |
50 (6) |
| EVAP Canister Mounting Bracket-To Body Nut (Ram Van & RamWagon) |
95 (10.7) |
| EVAP Canister-To-Mounting Bracket Nut |
| Dakota & Durango |
17 (23) |
| Ram Pickup |
|
| Ram Van & Ram Wagon |
|
| EVAP Leak Detection Pump Bolt |
65 (7) |
| EVAP Purge Solenoid Nut (Dakota & Durango) |
75 (8.5) |
| IAC Motor Bolt |
60 (7) |
| Ignition Coil Bolt/Nut |
| Dakota, Durango, Ram Van & Ram Wagon |
| 2.5L, 3.9L, 5.2L & 5.9L |
|
| 4.7L |
70 (8) |
| Ram Pickup |
| 3.9L, 5.2L & 5.9L |
|
| 8.0L |
90 (10.2) |
| MAP Sensor Bolt |
| 8.0L |
20 (2.3) |
| Except 8.0L |
25 (2.8) |
| PCM Bolt |
35 (4.0) |
| Power Steering Pressure Switch (2.5L & 4.7L) |
124-195 (14-22) |
| Throttle Body Bolt |
| 2.5L & 4.7L |
100 (11) |
| 3.9L, 5.2L & 5.9L |
200 (23) |
| Throttle Body Nut (8.0L) |
192 (22) |
| TP Sensor Bolt |
60 (7) |
