Removal & Installation

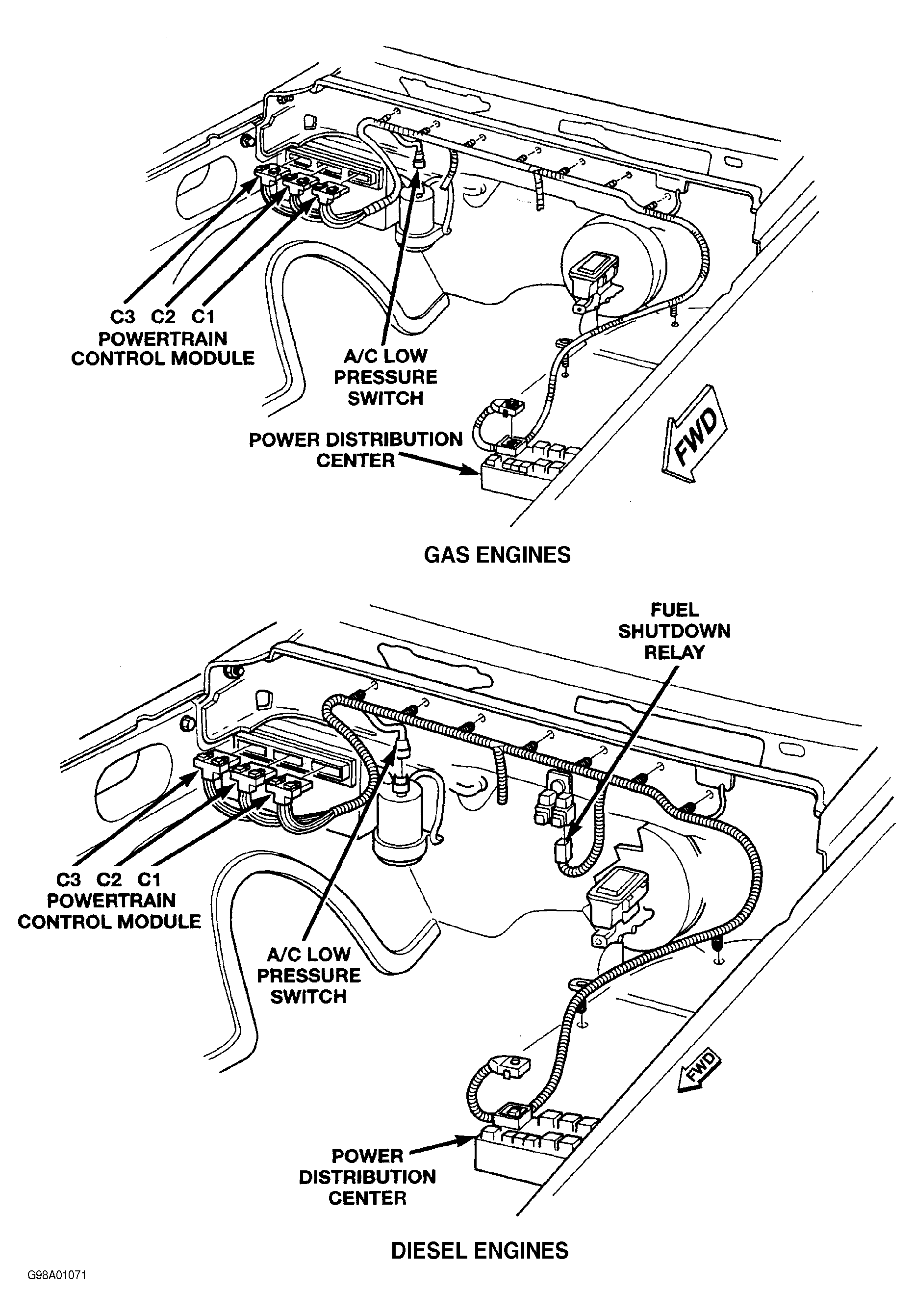

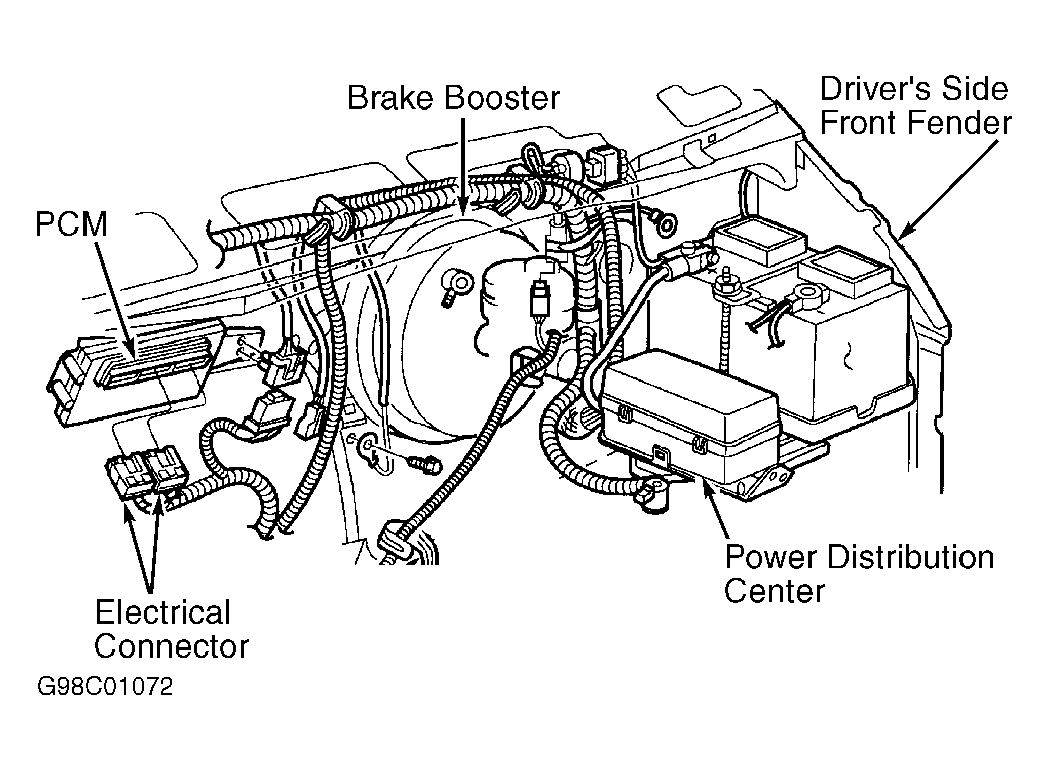

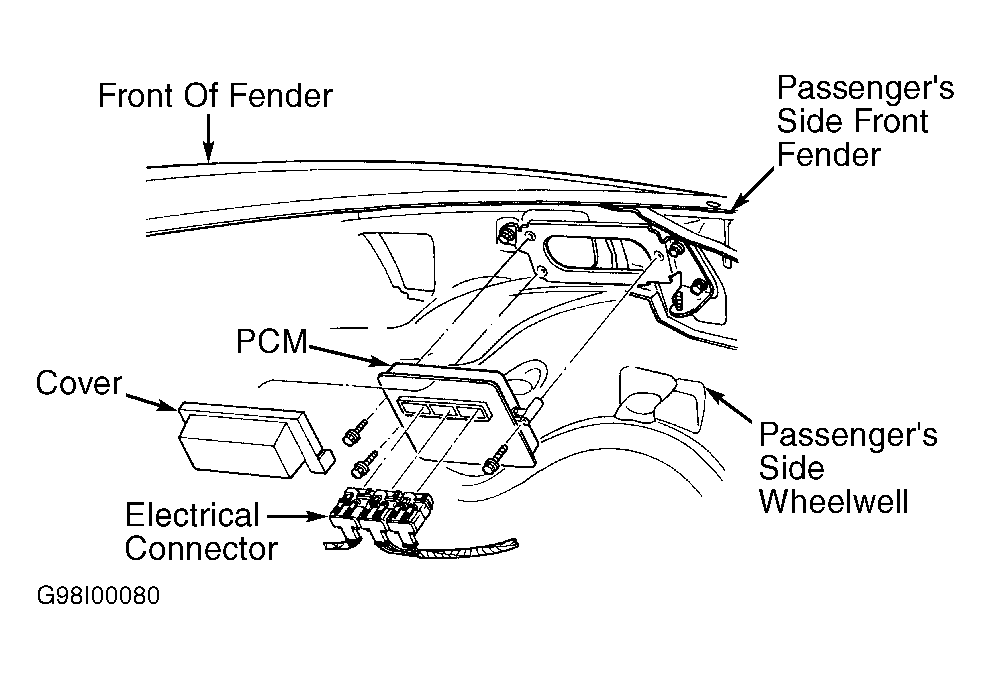

- PCM is located in the engine compartment. See Fig 1-Fig 3 for location. Turn ignition off and disconnect negative battery cable. Remove cover for access to electrical connectors at PCM. Disconnect electrical connectors from PCM. Remove PCM retaining bolts and PCM.
- To install, reverse removal procedure. Tighten PCM retaining bolts to specification. See TORQUE SPECIFICATIONS .
