DTC 1282: Fuel Pump/System Relay Control Circuit

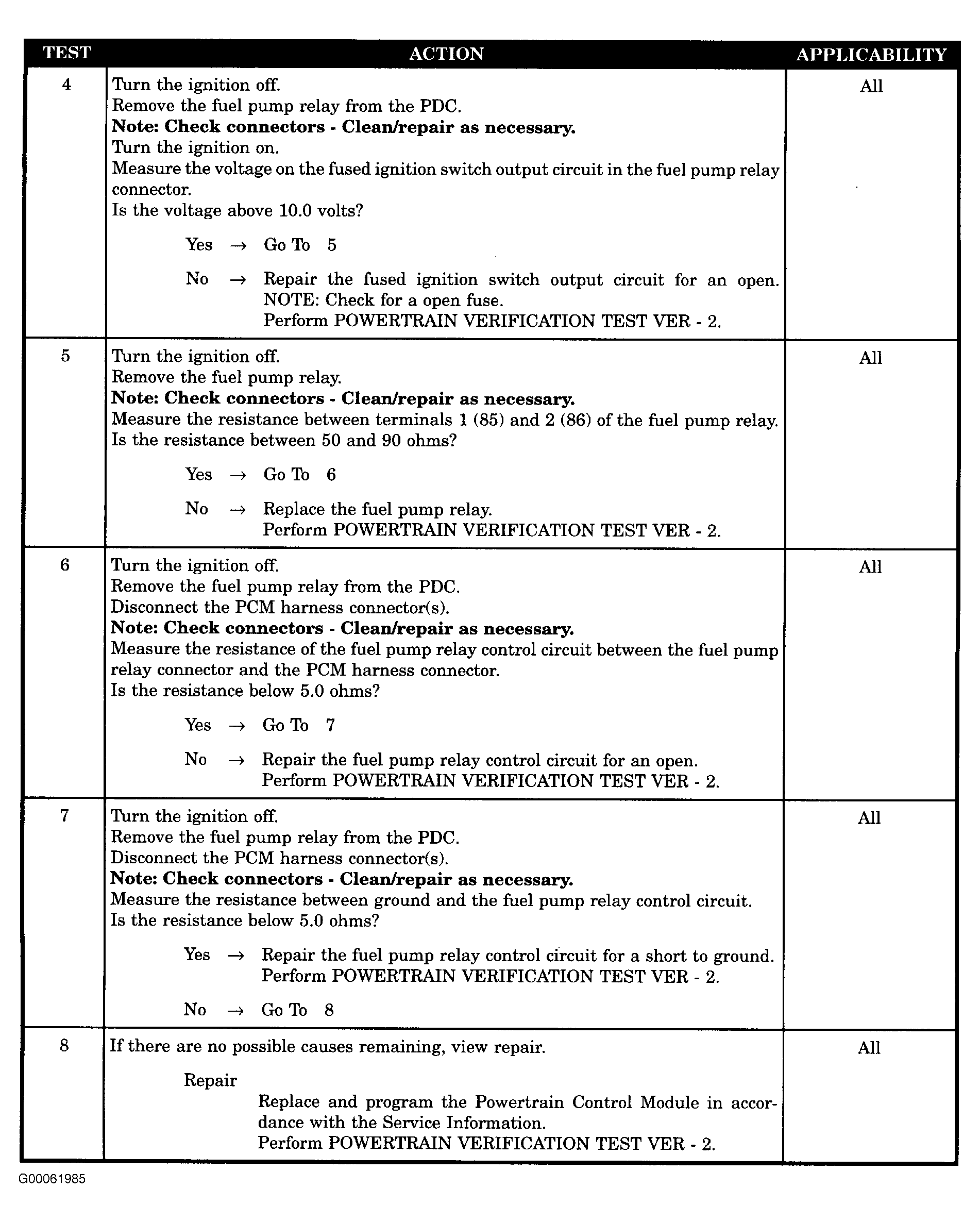

Fig 1: DTC P1282: Fuel Pump/System Relay Control Circuit (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

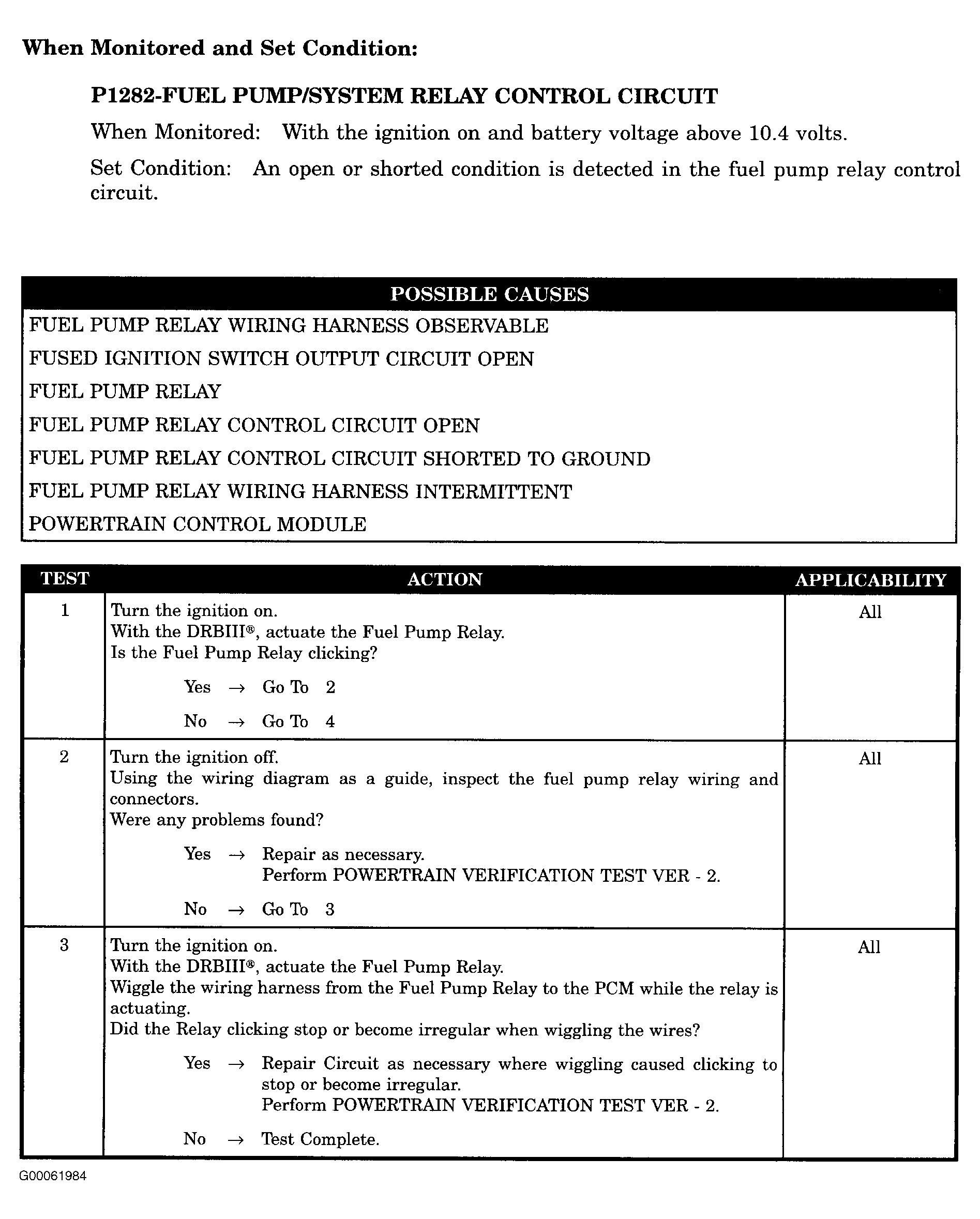

Fig 2: DTC P1282: Fuel Pump/System Relay Control Circuit (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
