Warning Lamp Open/Short (Active): Testing

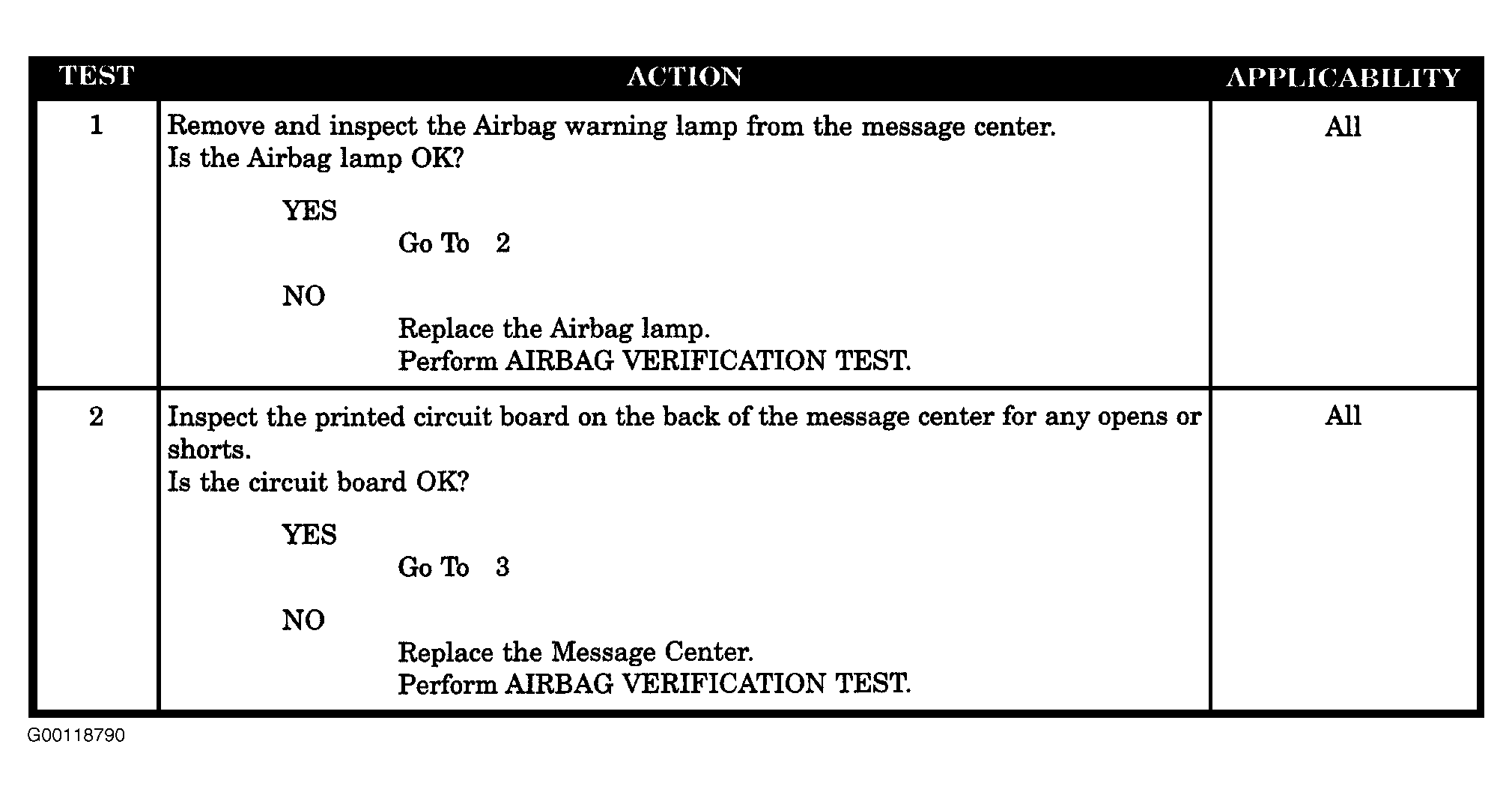

Fig 1: Warning Lamp Open/Short (Active) Test (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

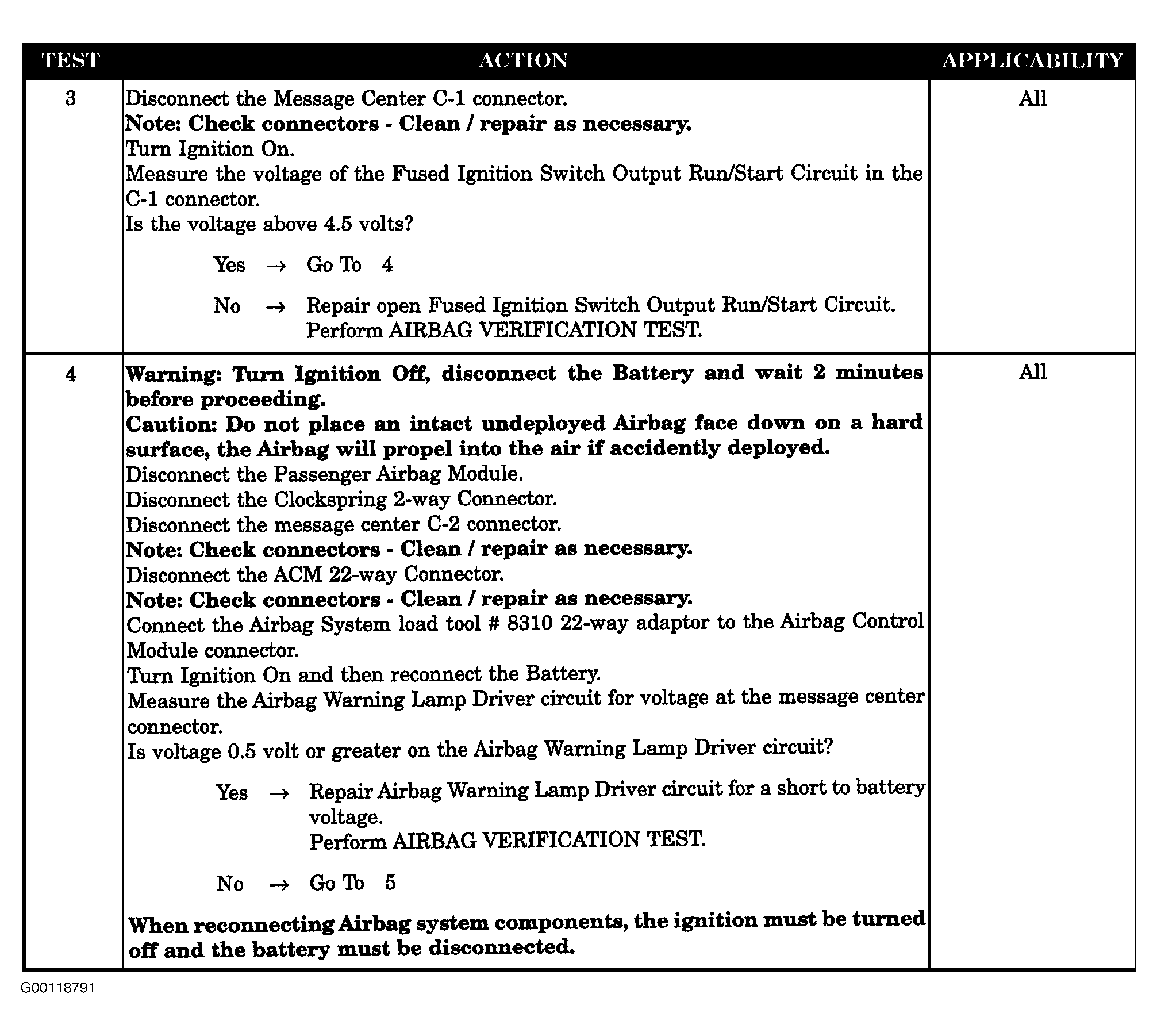

Fig 2: Warning Lamp Open/Short (Active) Test (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

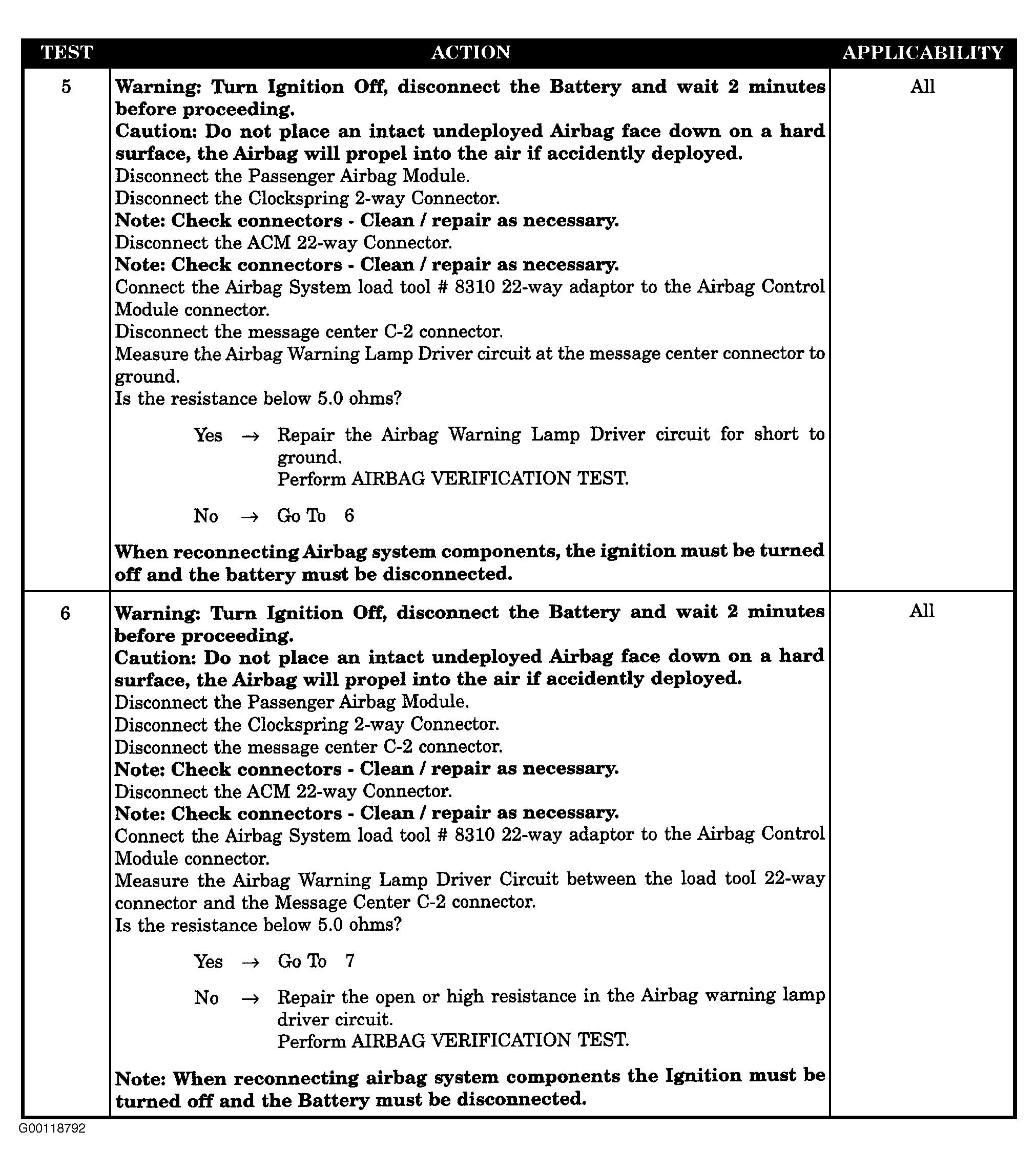

Fig 3: Warning Lamp Open/Short (Active) Test (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

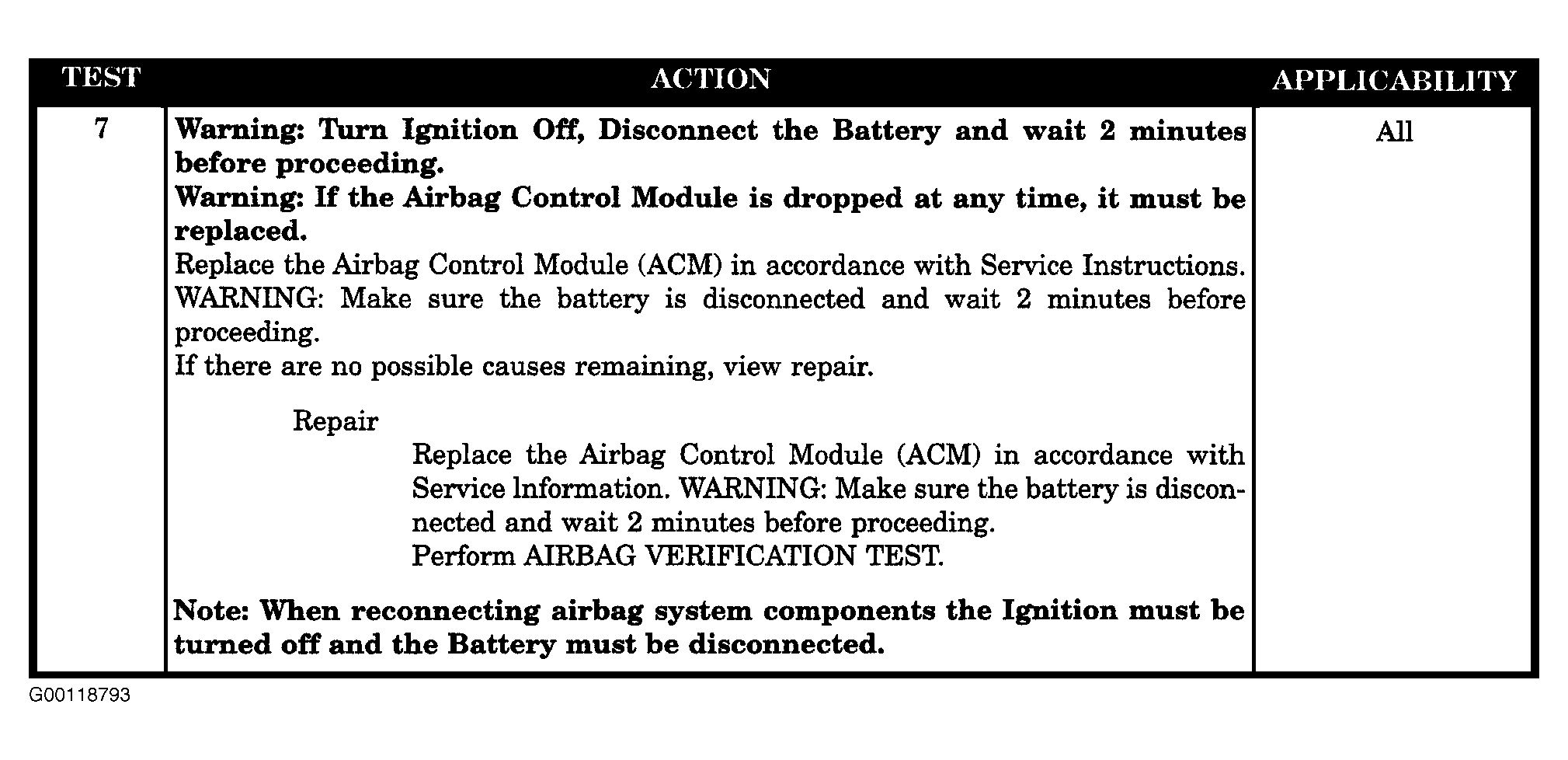

Fig 4: Warning Lamp Open/Short (Active) Test (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.
