Bus Failure Message - Short To Battery

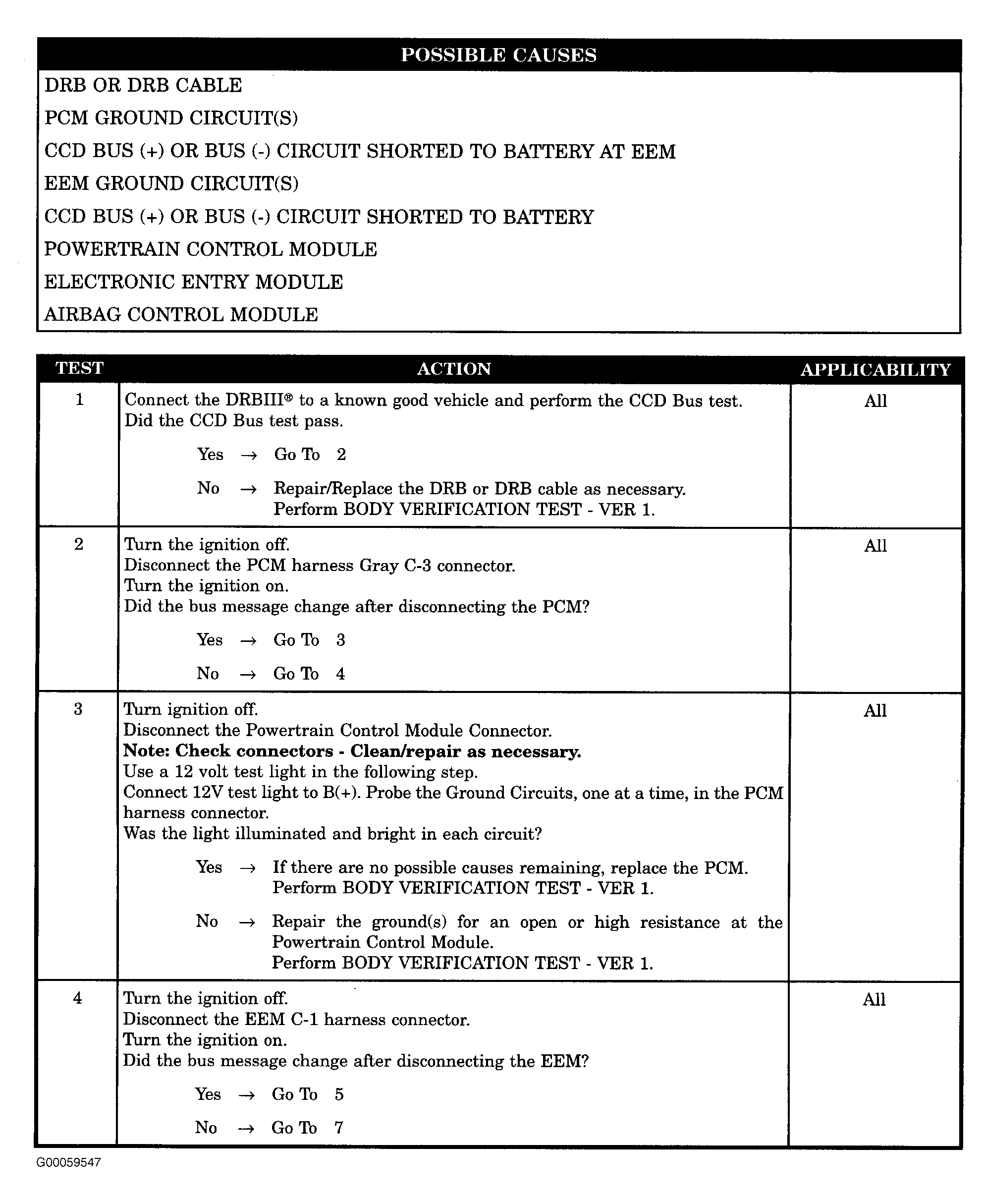

Fig 1: Short To Battery (1 Of 2)
G00059547Courtesy of DAIMLERCHRYSLER CORPORATION

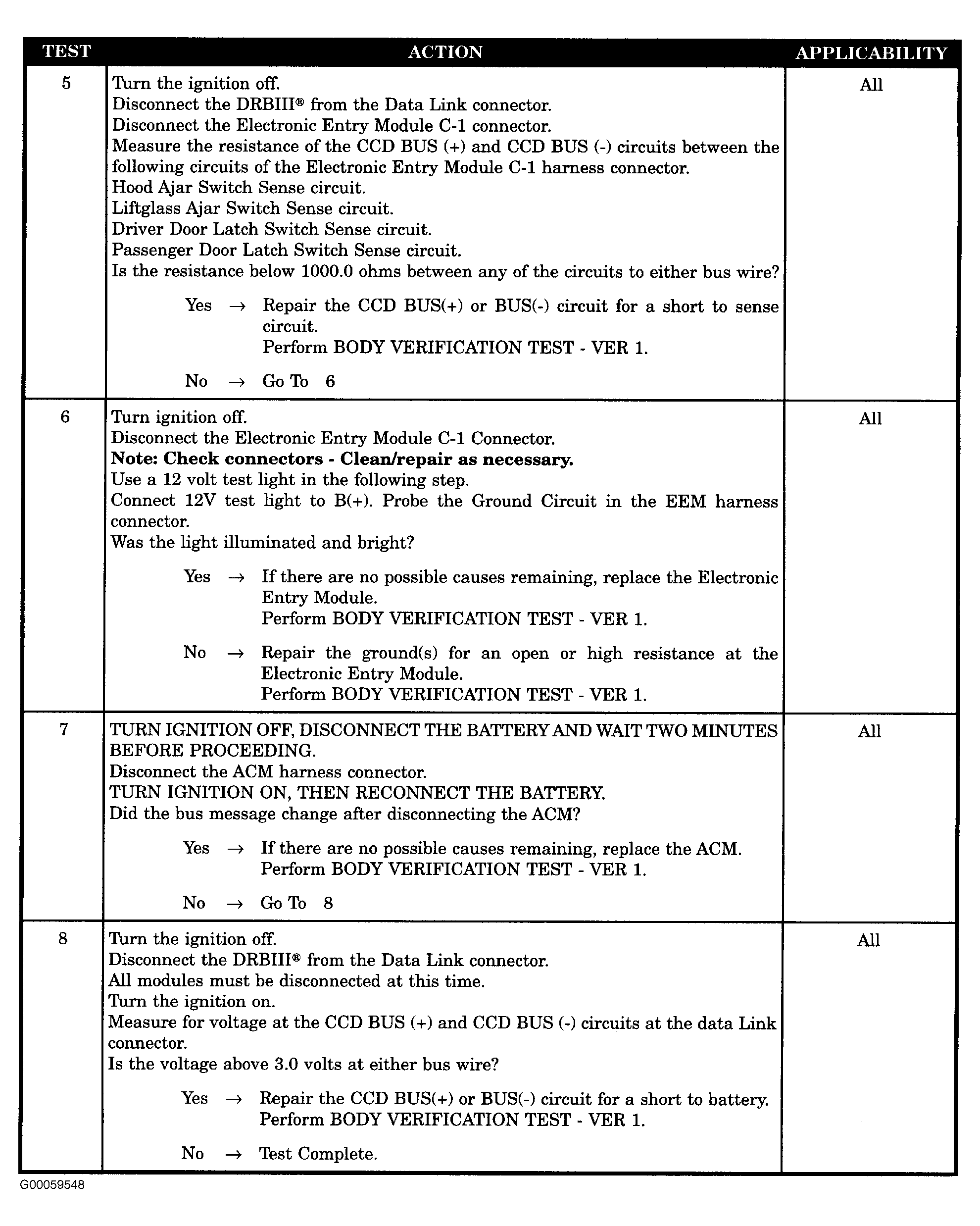

Fig 2: Short To Battery (2 Of 2)
G00059548Courtesy of DAIMLERCHRYSLER CORPORATION
