Checking Fuel Delivery

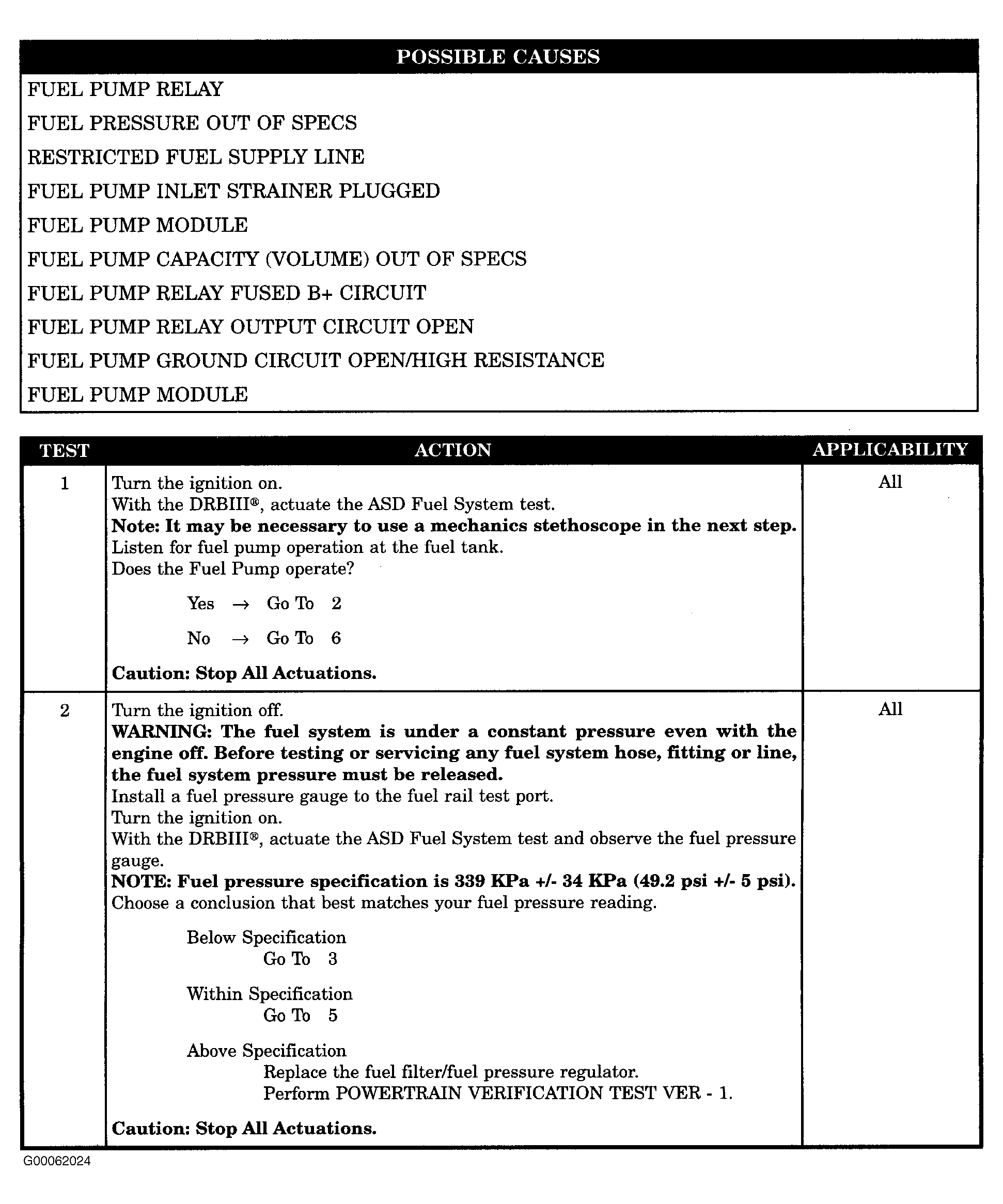

Fig 1: Checking Fuel Delivery (1 Of 3)
G00062024Courtesy of DAIMLERCHRYSLER CORPORATION

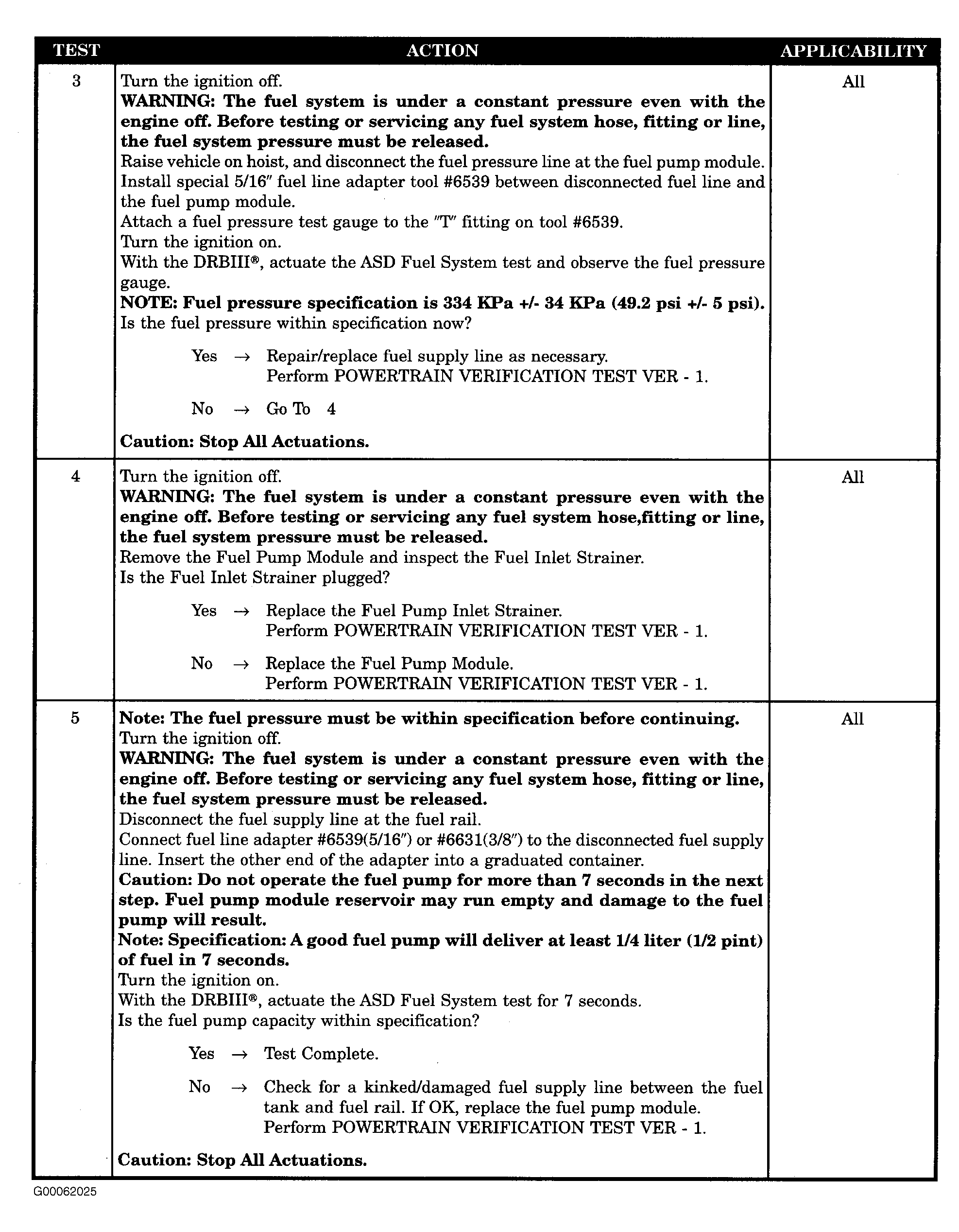

Fig 2: Checking Fuel Delivery (2 Of 3)
G00062025Courtesy of DAIMLERCHRYSLER CORPORATION

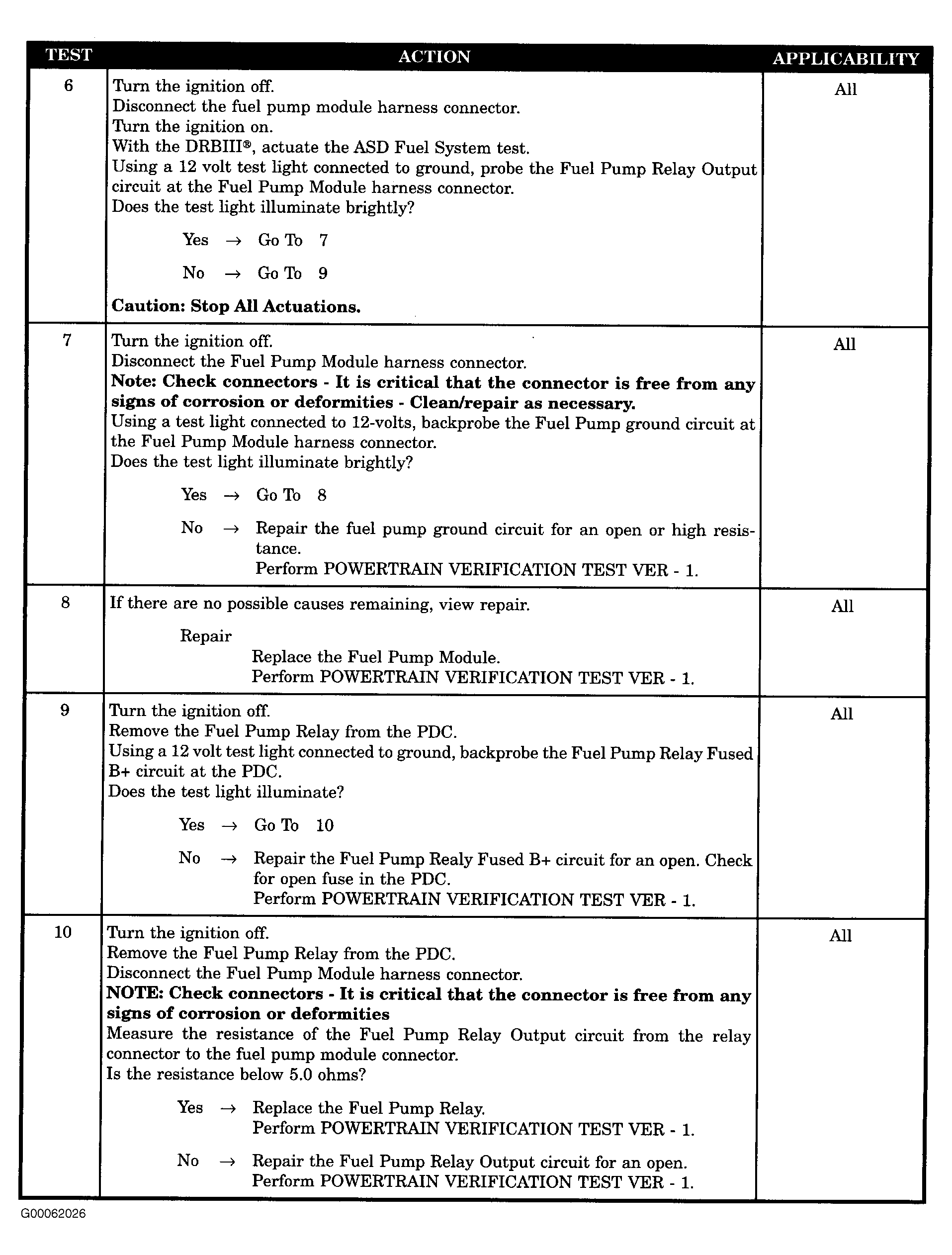

Fig 3: Checking Fuel Delivery (3 Of 3)
G00062026Courtesy of DAIMLERCHRYSLER CORPORATION
