No Bus Bias

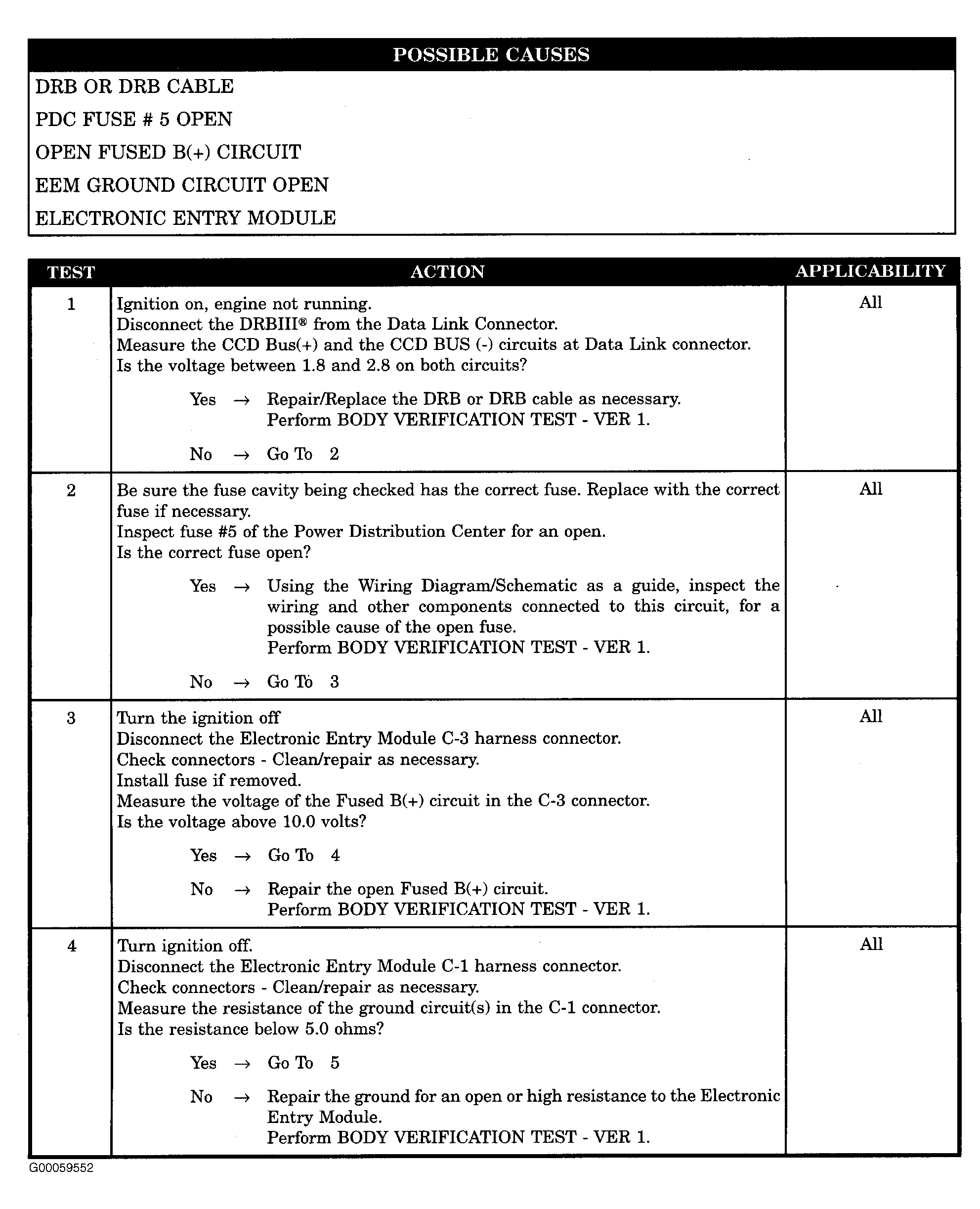

Fig 1: No BUS Bias (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORPORATION

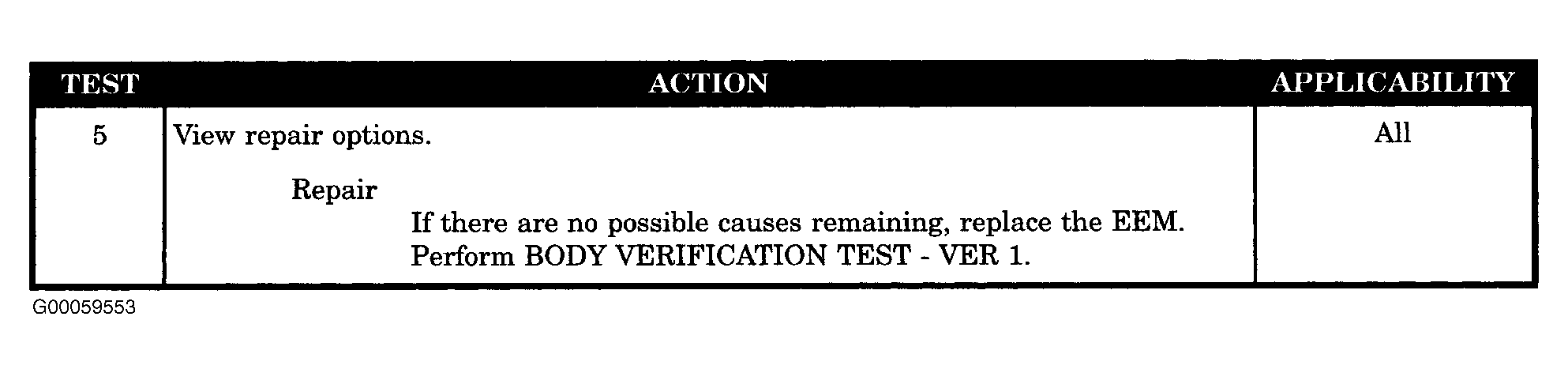

Fig 2: No BUS Bias (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
