Engine Control Self-Diagnostics
›
Symptom Testing
›
Not Receiving Bus Messages Correctly
Not Receiving Bus Messages Correctly

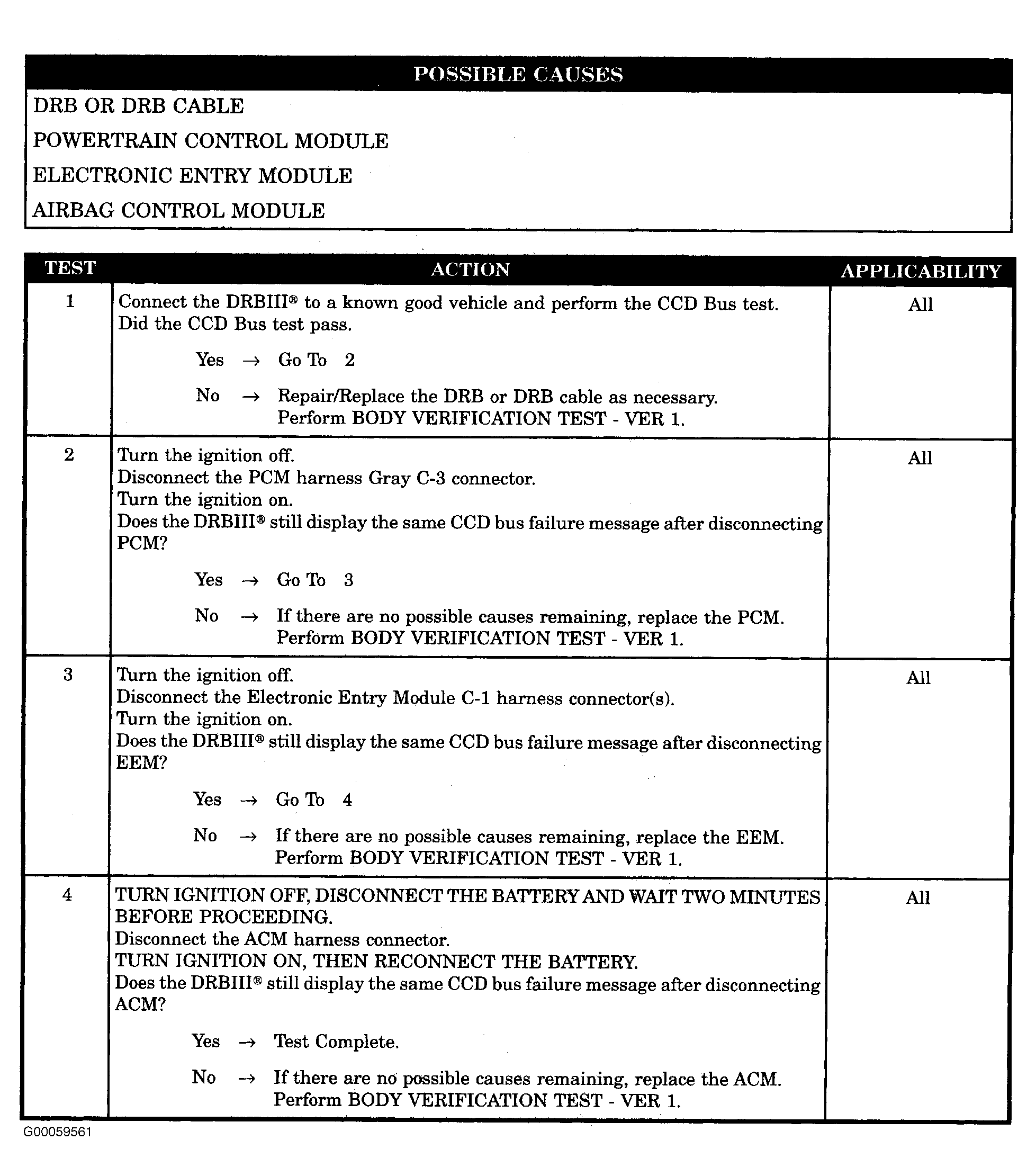

Fig 1: Not Receiving BUS Messages Correctly
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
