Start & Stall Condition
Start & Stall Condition

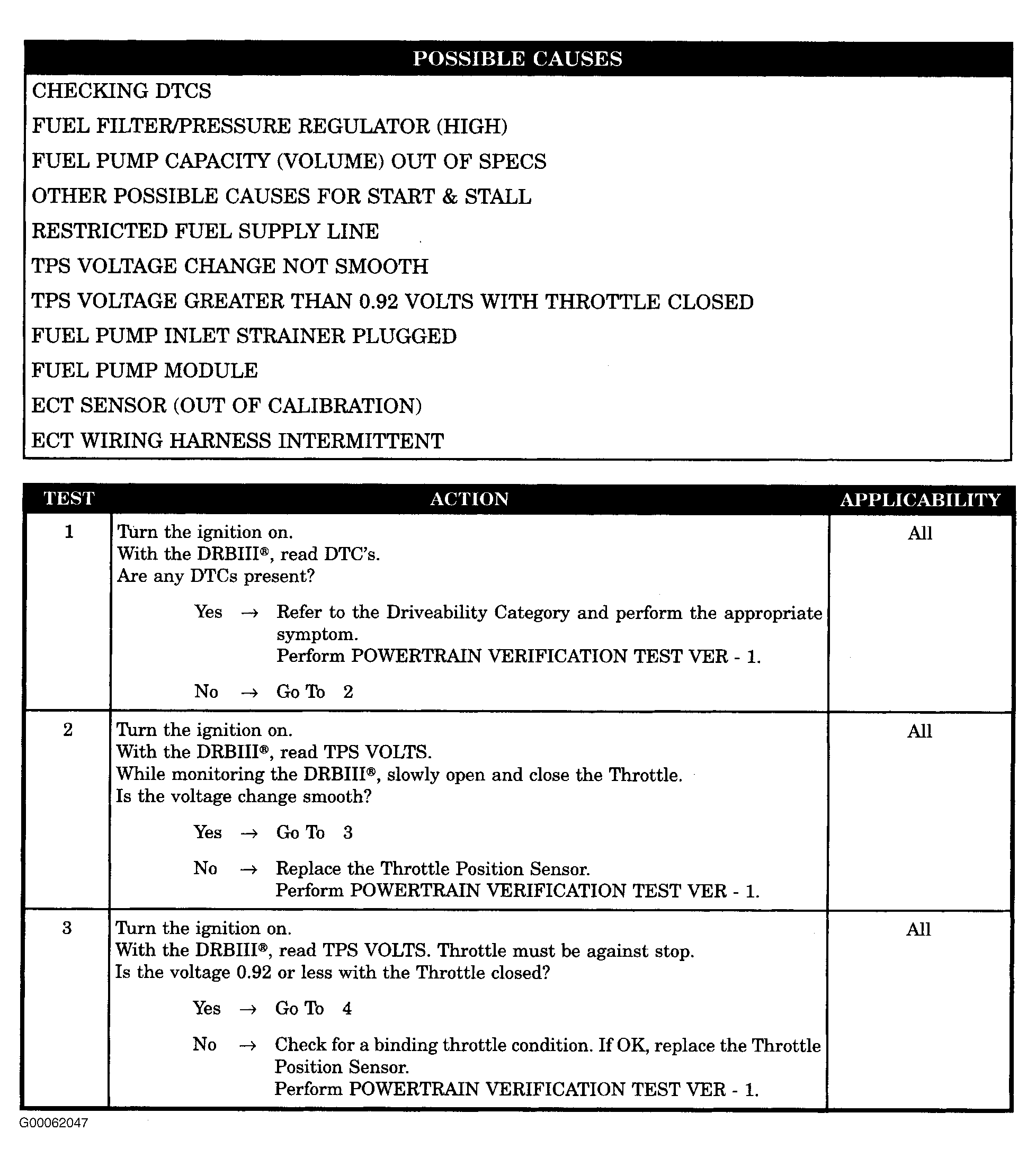

Fig 1: Start & Stall Condition (1 Of 4)
Courtesy of DAIMLERCHRYSLER CORPORATION

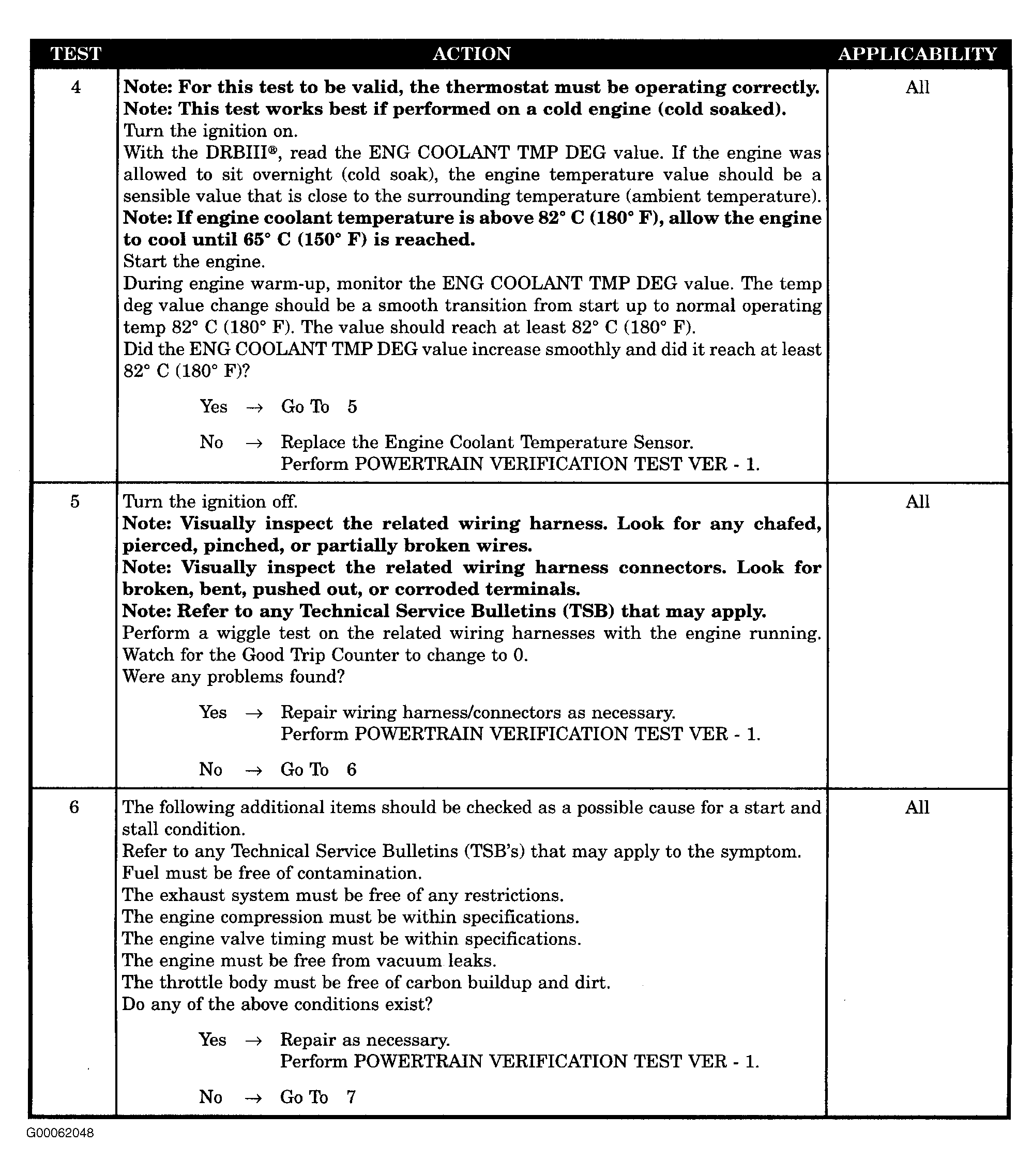

Fig 2: Start & Stall Condition (2 Of 4)
Courtesy of DAIMLERCHRYSLER CORPORATION

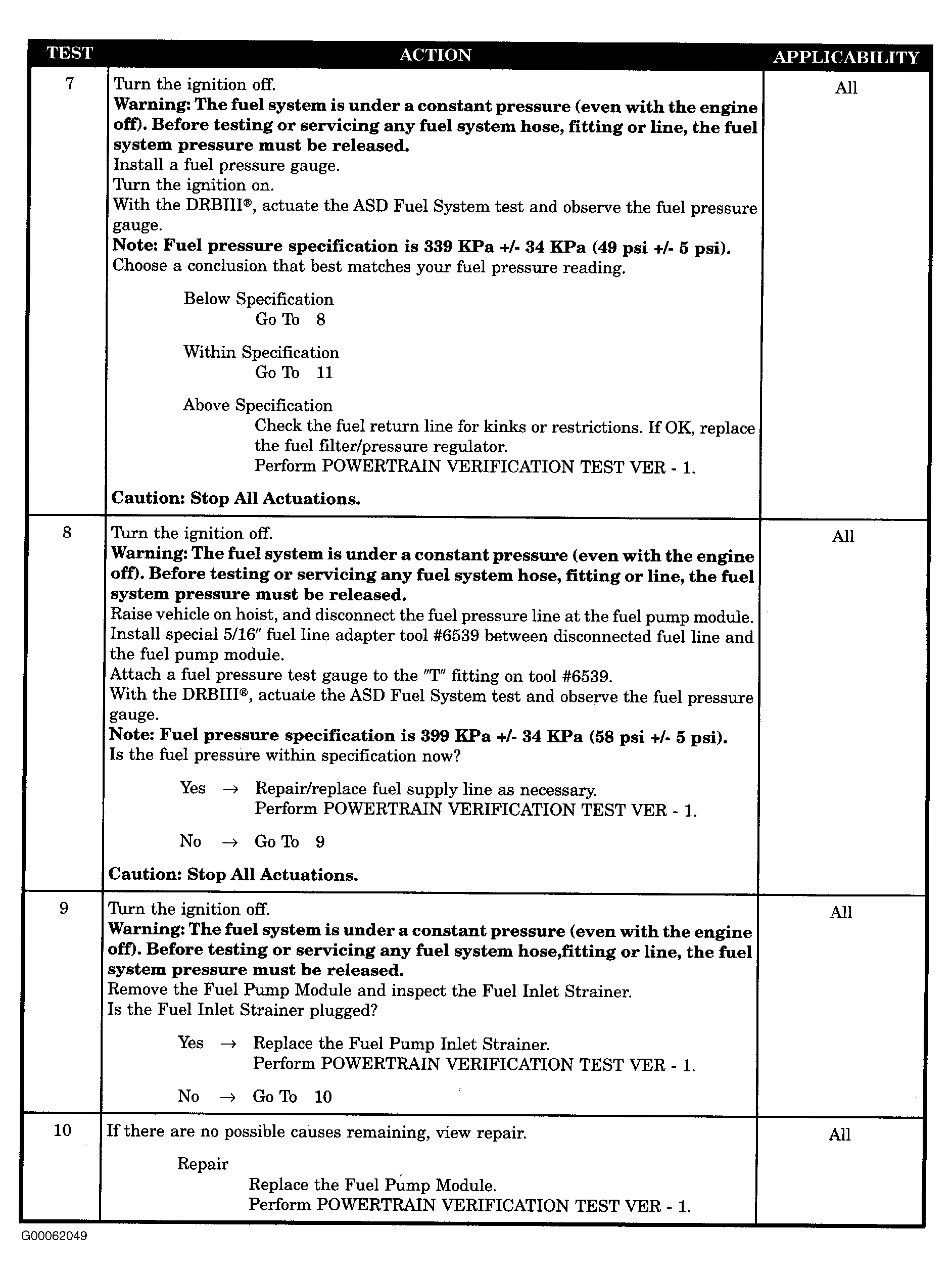

Fig 3: Start & Stall Condition (3 Of 4)
Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 4: Start & Stall Condition (4 Of 4)
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
