Fuel Injectors

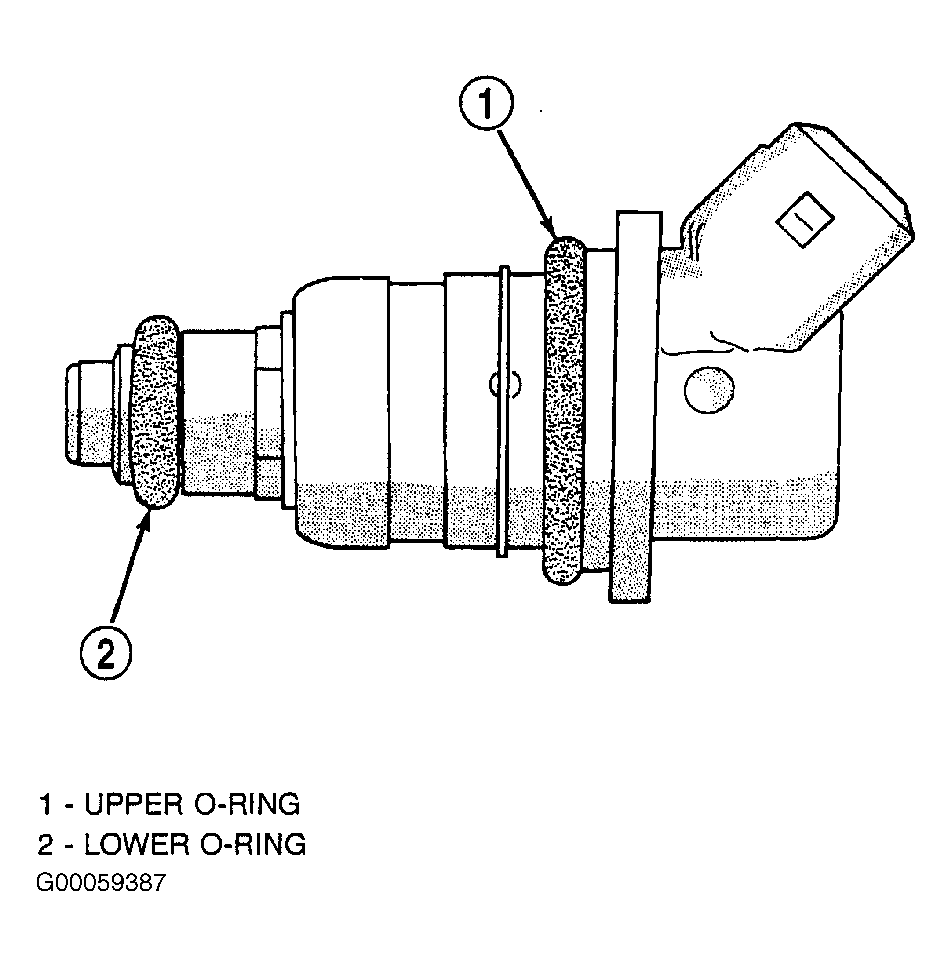

Fig 1: Fuel Injector

Courtesy of DAIMLERCHRYSLER CORPORATION

The fuel injectors are electrical solenoids. See Fig 1 . The injectors are positioned in intake manifold with nozzle ends directly above intake valve port.
