Home › Dodge and Ram › 2000 › Viper RT/10 › Repair and Diagnosis › Body & Frame › Body, Cab Control Systems › Body Control Computer › Symptoms (Communication) › Bus Failure Message - No Termination › Testing

Bus Failure Message - No Termination: Testing

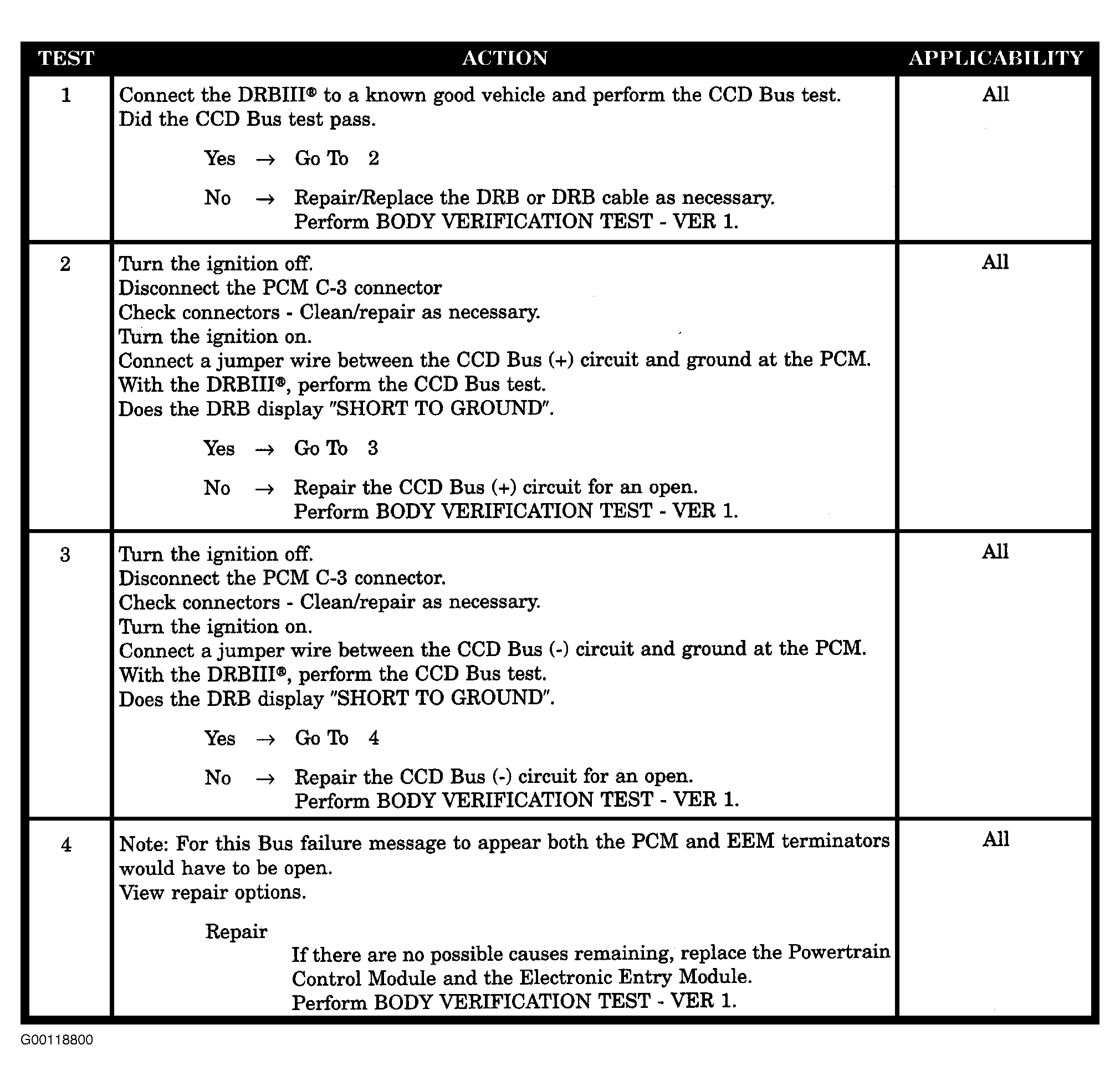

Fig 1: BUS Failure Message - No Termination Test
G00118800Courtesy of DAIMLERCHRYSLER CORP.
