Unable To Arm VTSS: Testing

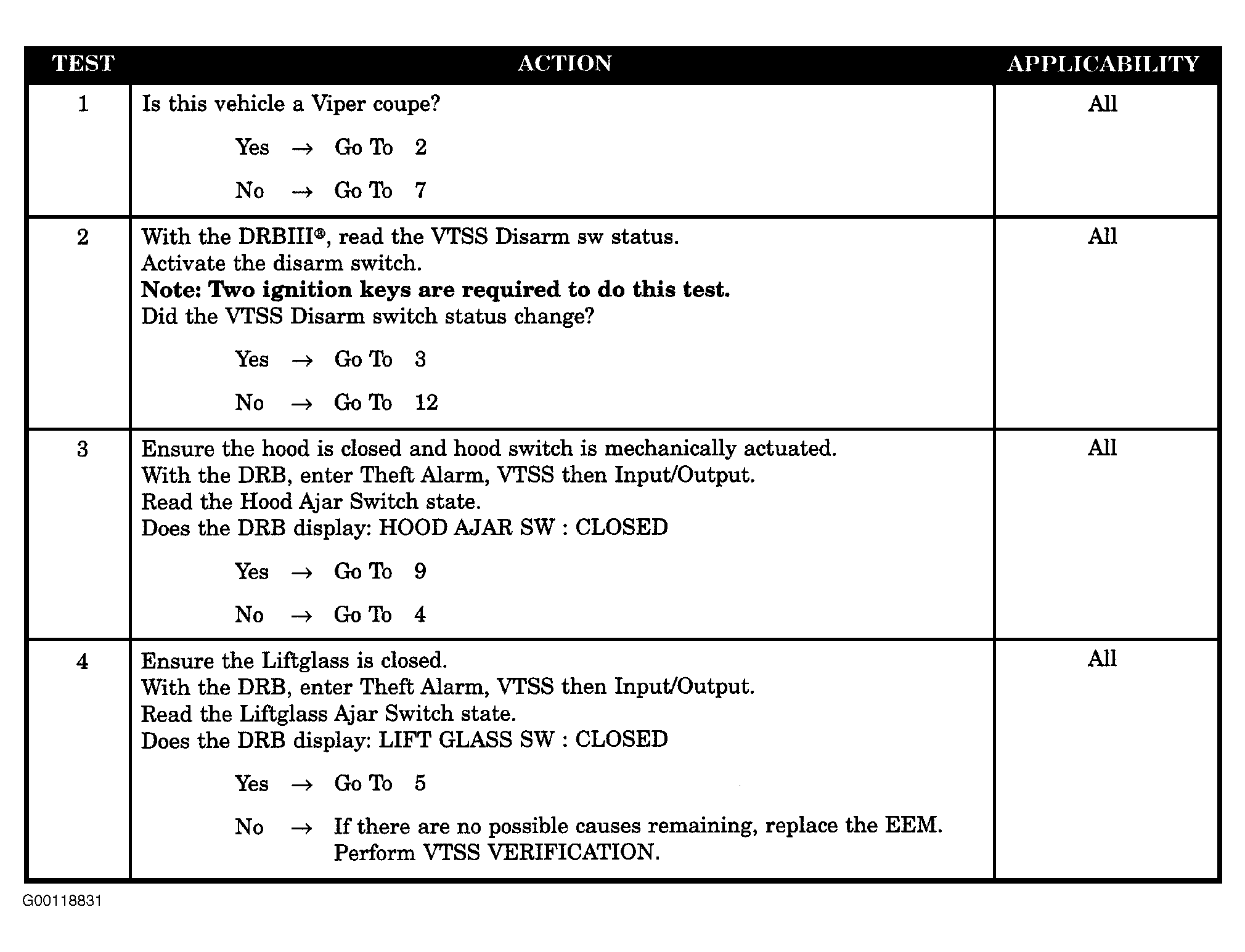

Fig 1: Unable To Arm VTSS Test (1 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

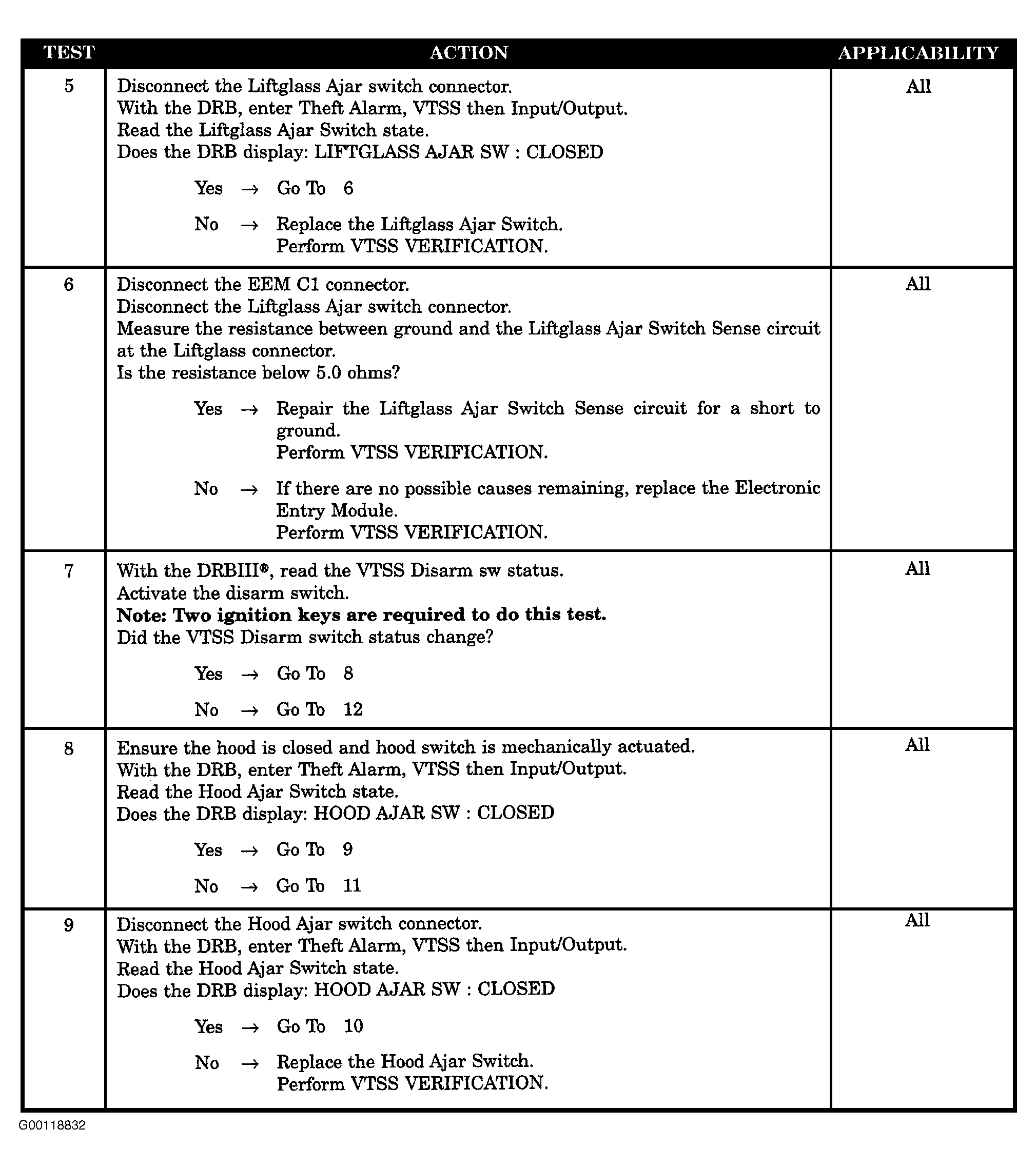

Fig 2: Unable To Arm VTSS Test (2 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

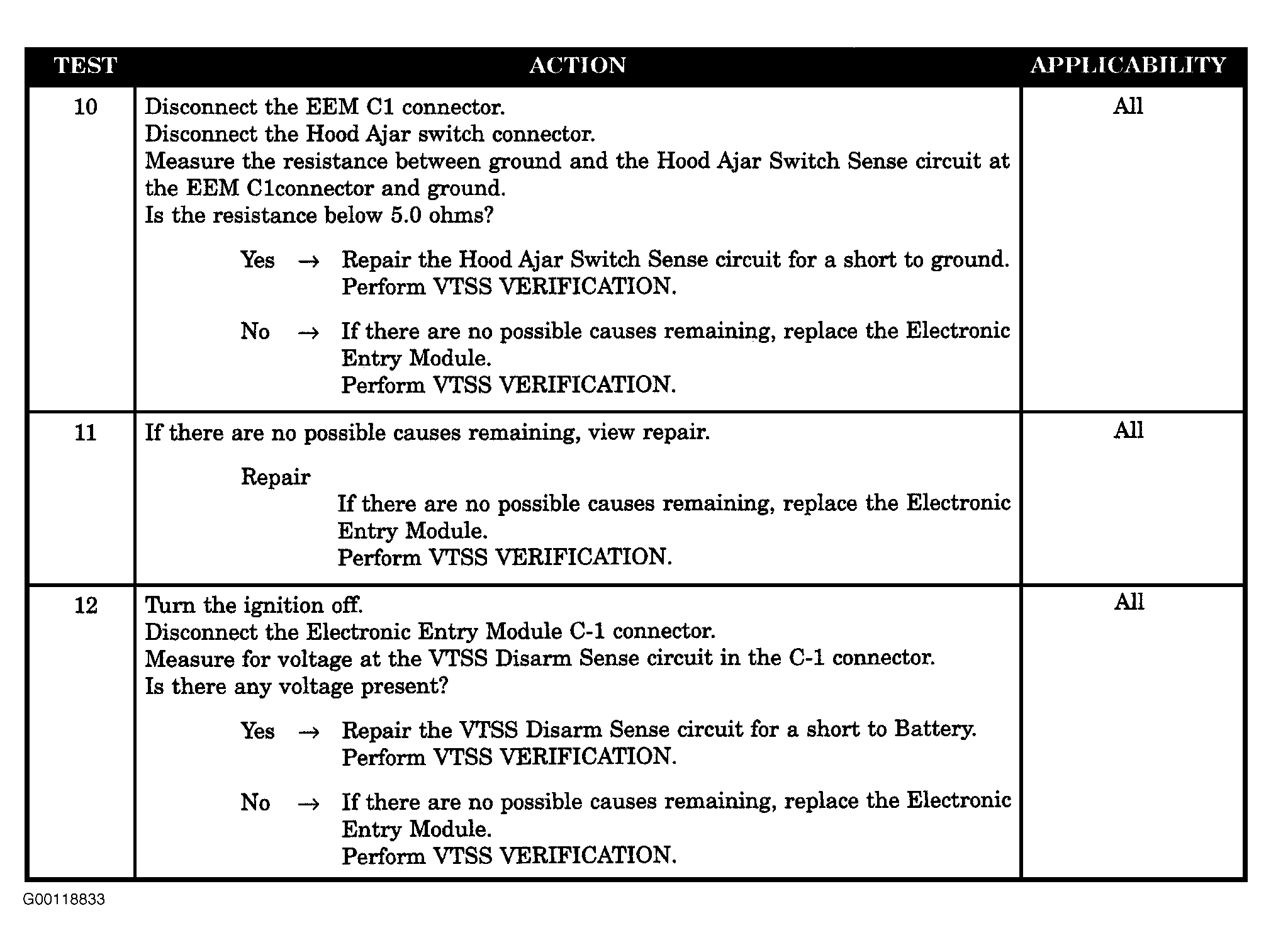

Fig 3: Unable To Arm VTSS Test (3 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
