Passenger Side Window Switch Continuity Test
Passenger Side Window Switch Continuity Test

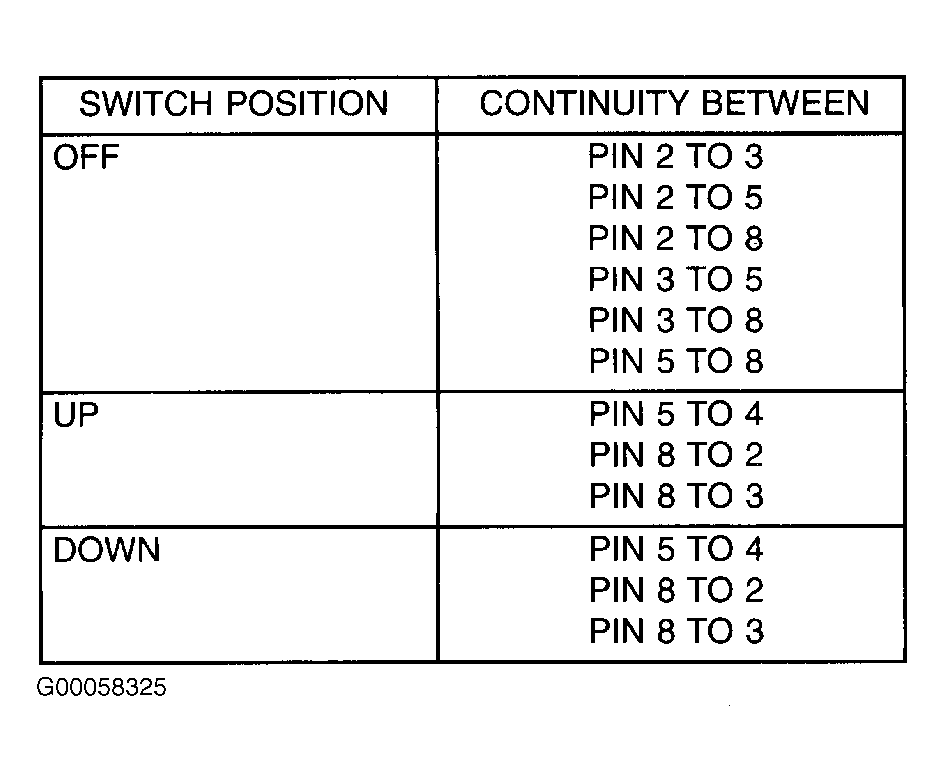

Fig 1: Passenger's Side Window Switch Continuity Test Table
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
