Connector Identification

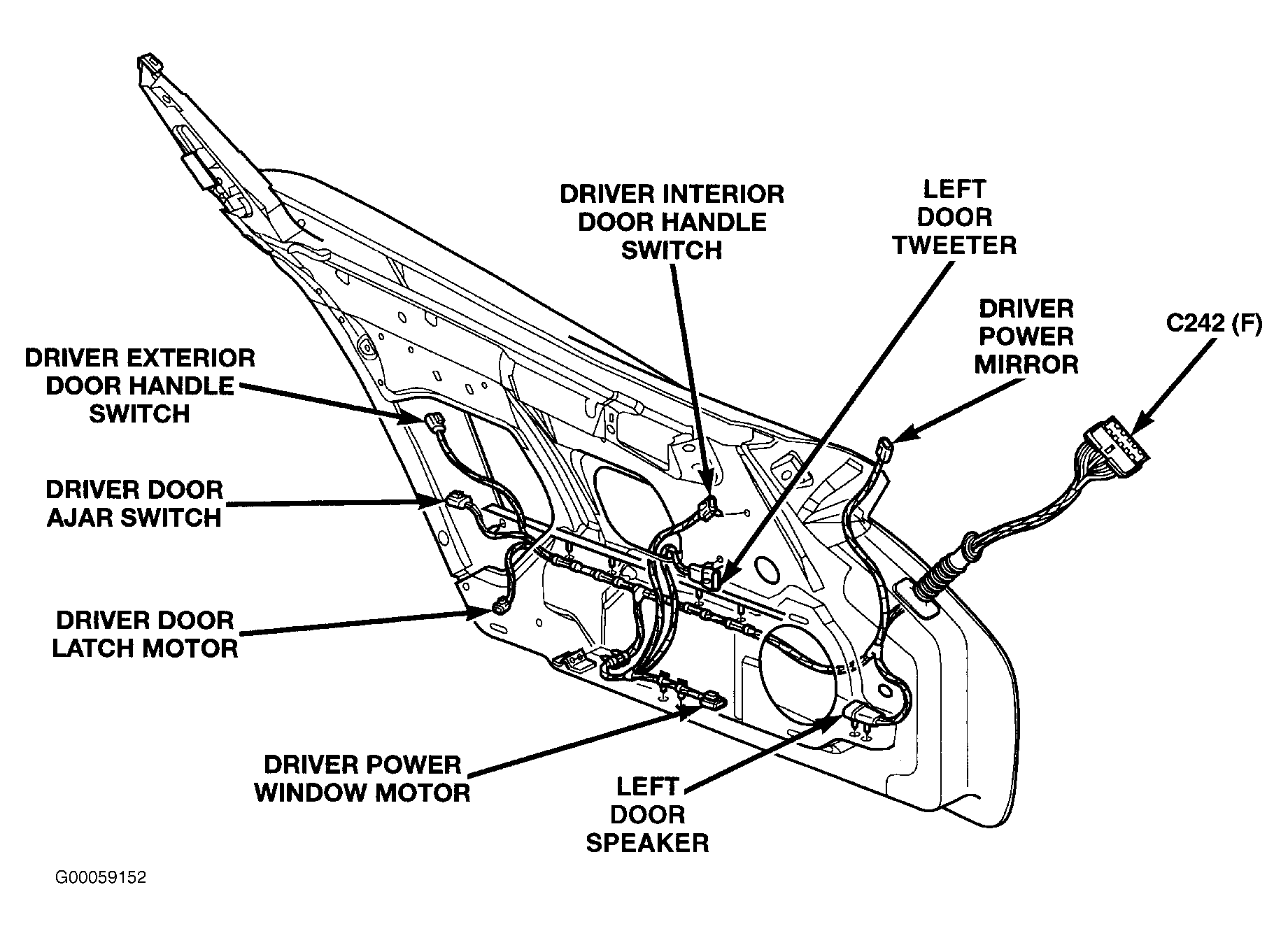

Fig 1: Driver Door Connections (2000-01)
G00059152Courtesy of DAIMLERCHRYSLER CORPORATION

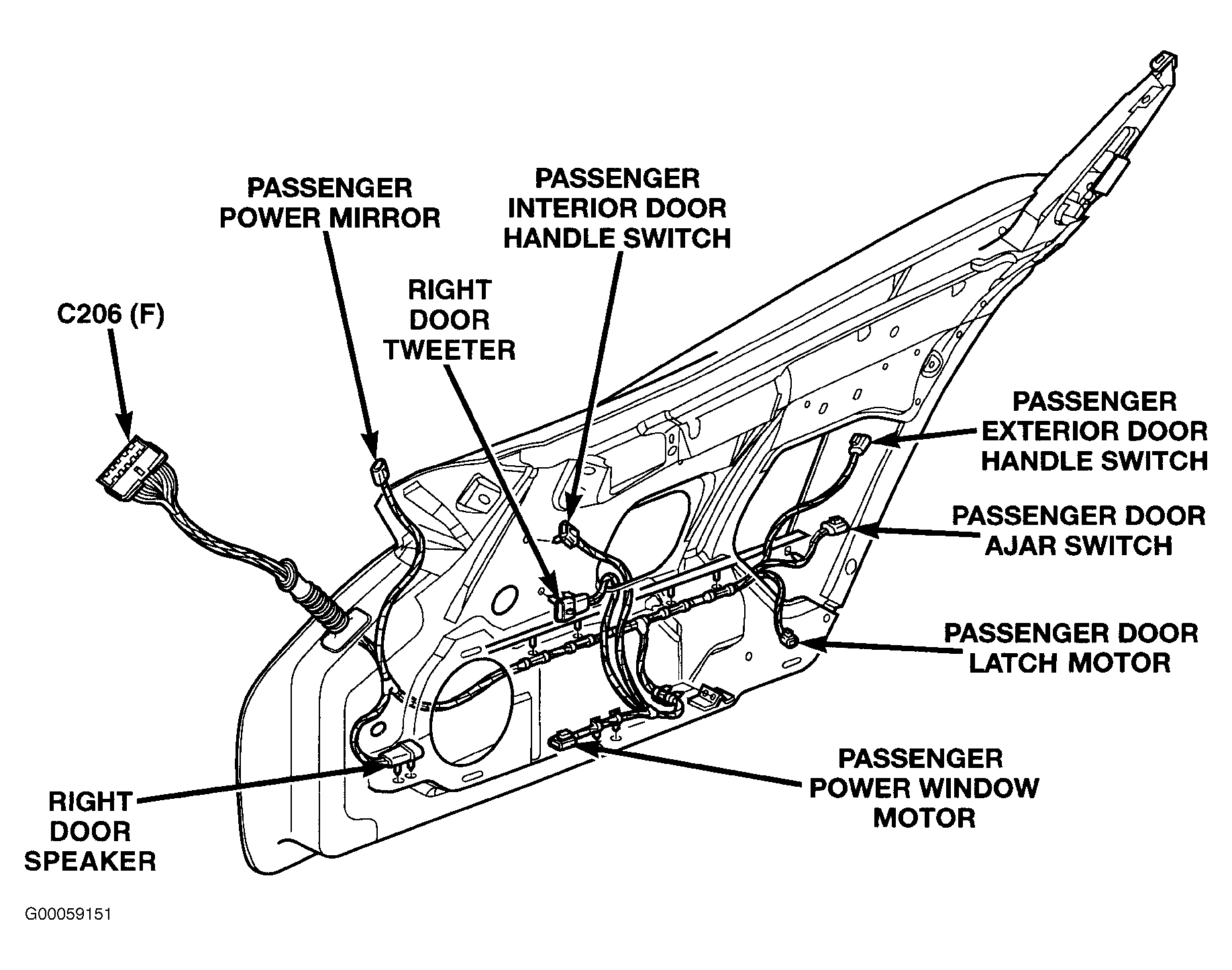

Fig 2: Passenger Door Connections (2000-01)
G00059151Courtesy of DAIMLERCHRYSLER CORPORATION
