DTC P0071: Ambient Temp Sensor Performance

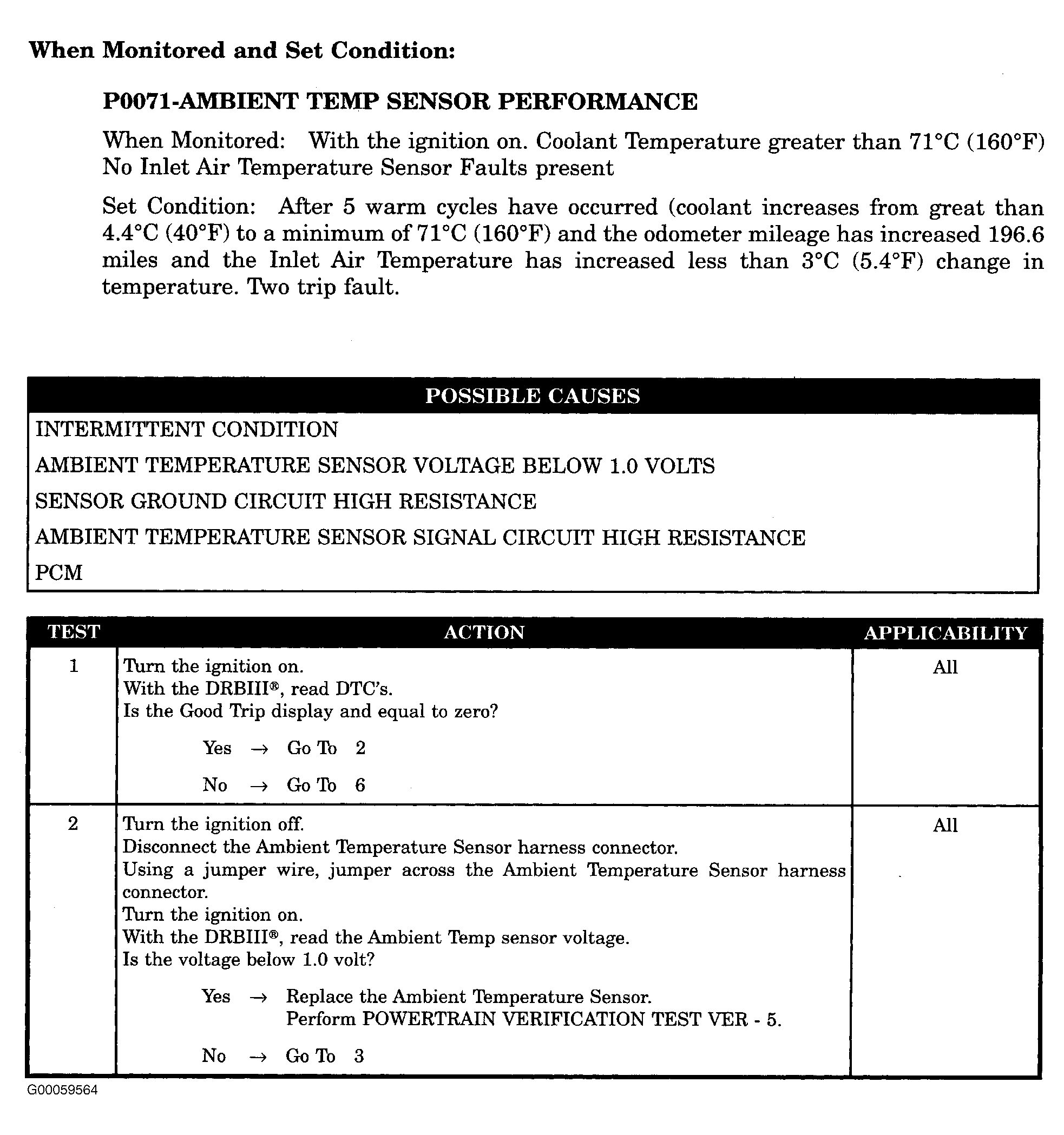

Fig 1: DTC P0071: Ambient Temp Sensor Performance (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

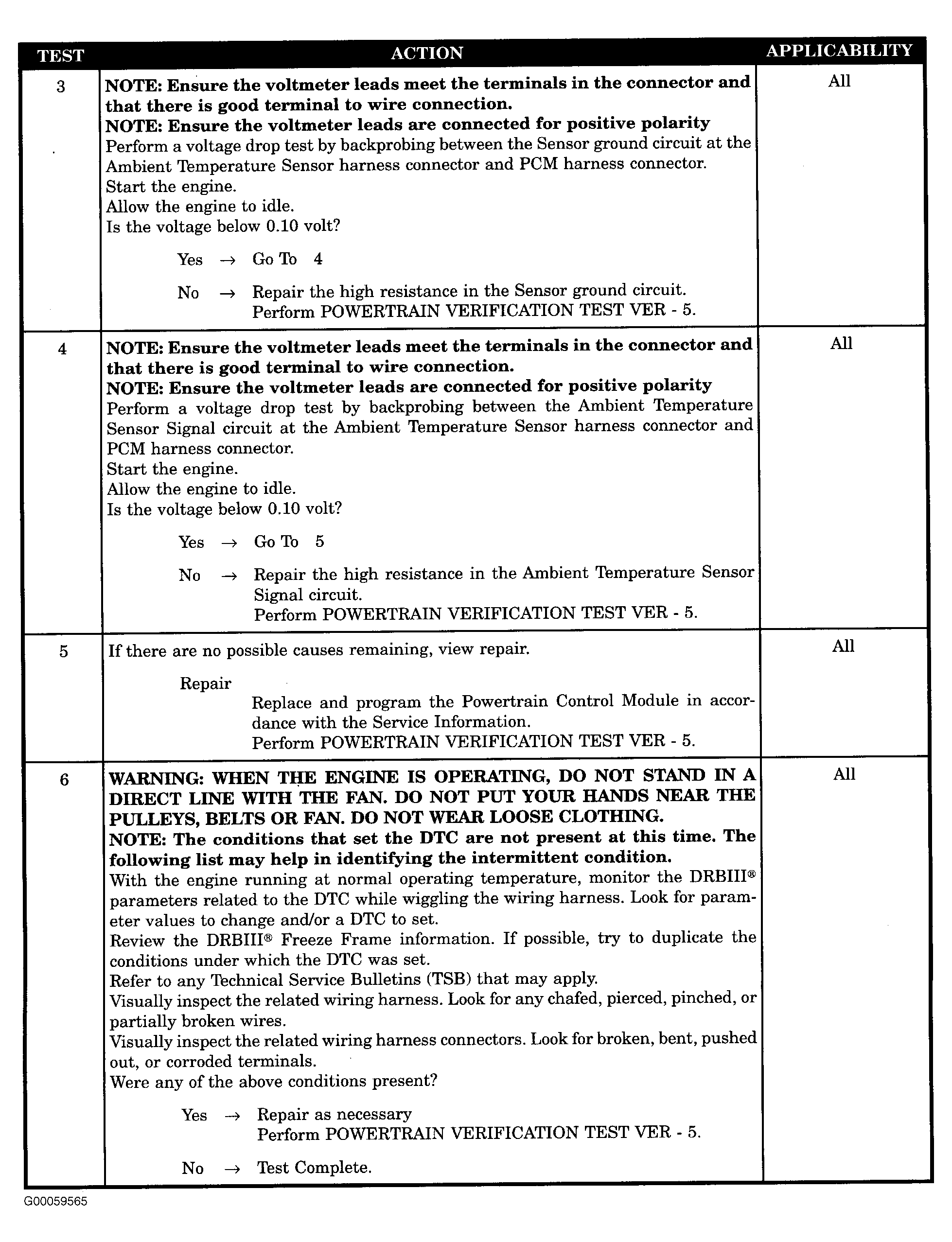

Fig 2: DTC P0071: Ambient Temp Sensor Performance (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
