DTC P0111: Intake Air Temp Performance

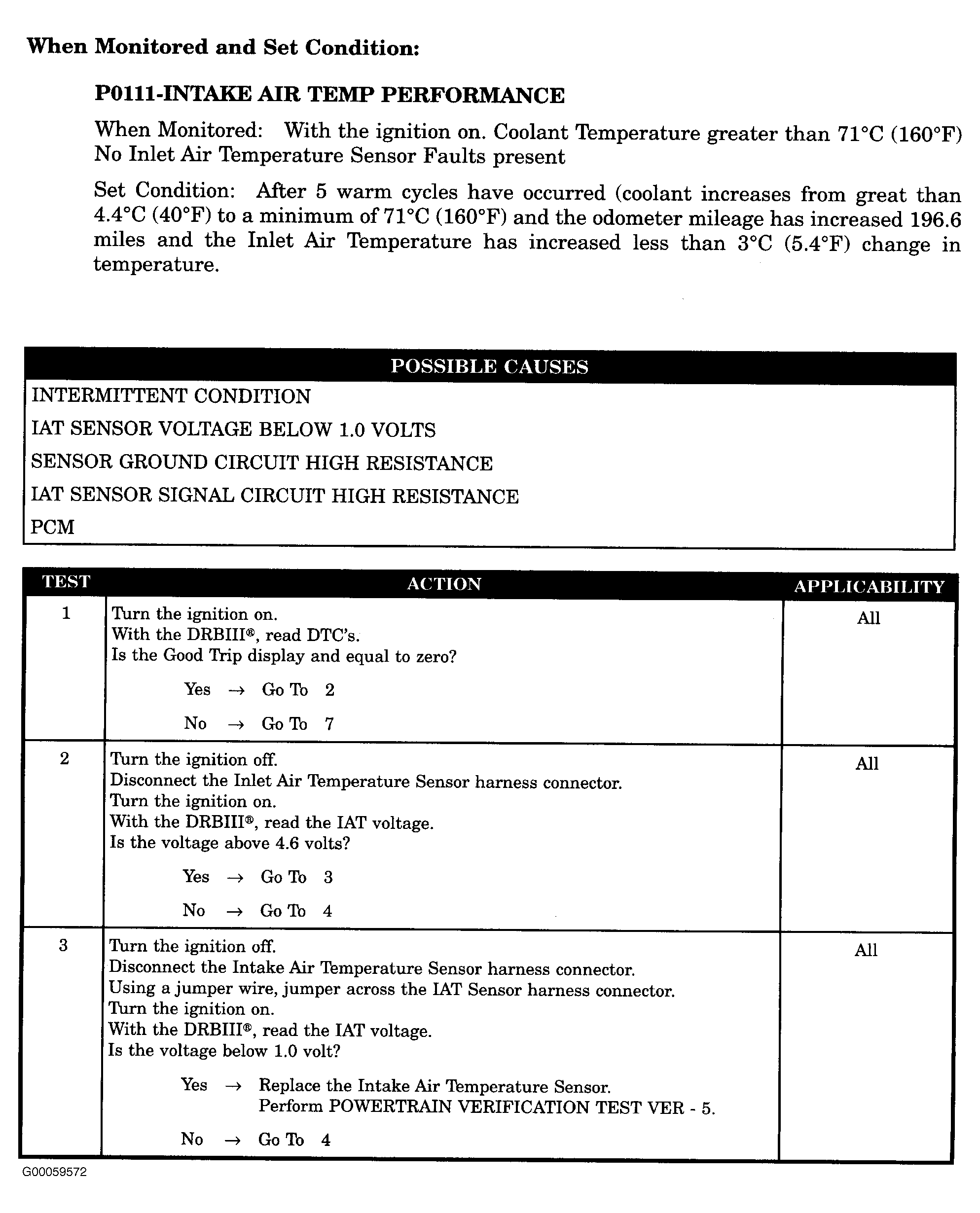

Fig 1: DTC P0111: Intake Air Temp Performance (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

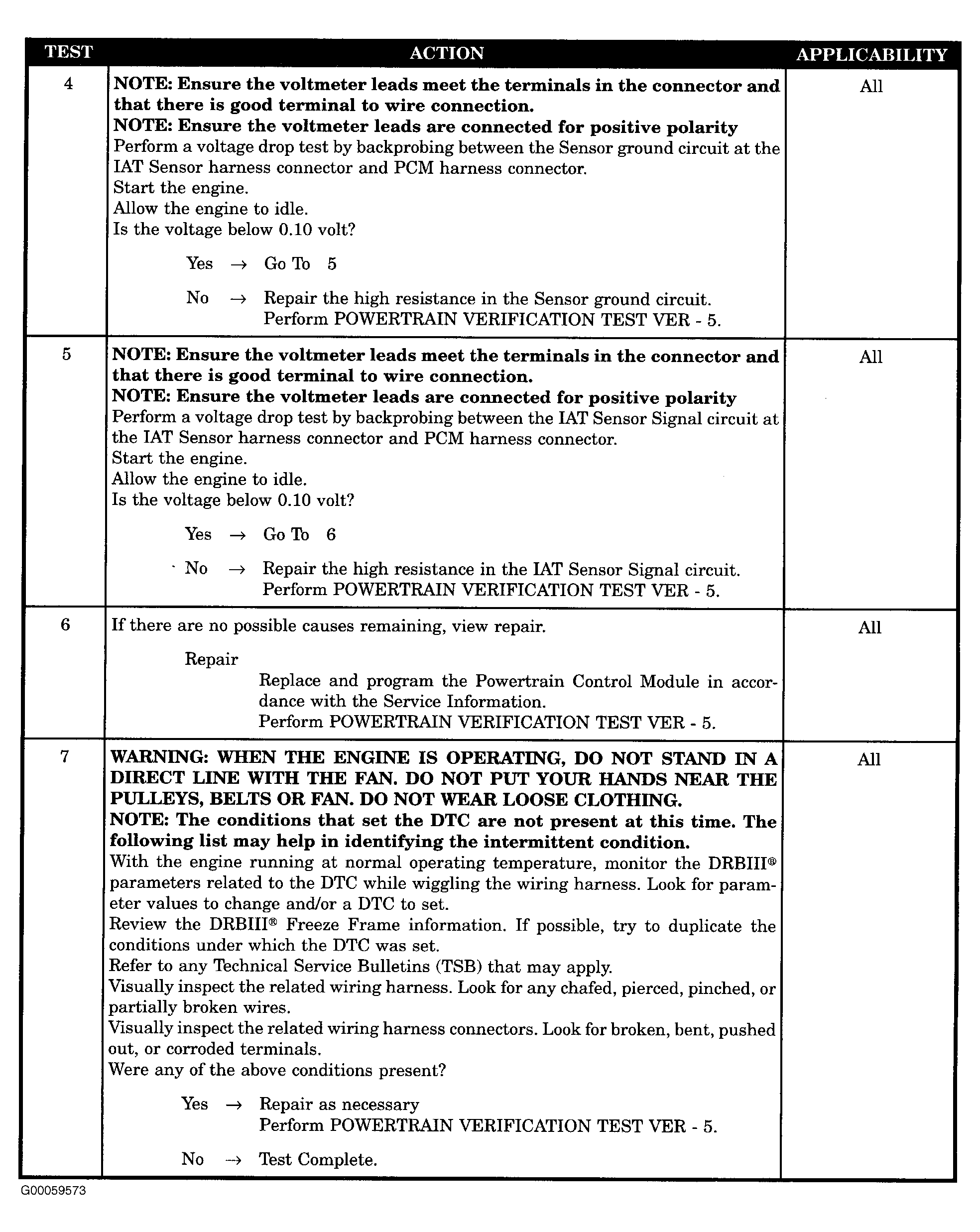

Fig 2: DTC P0111: Intake Air Temp Performance (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
