Brake Switch Connector End View

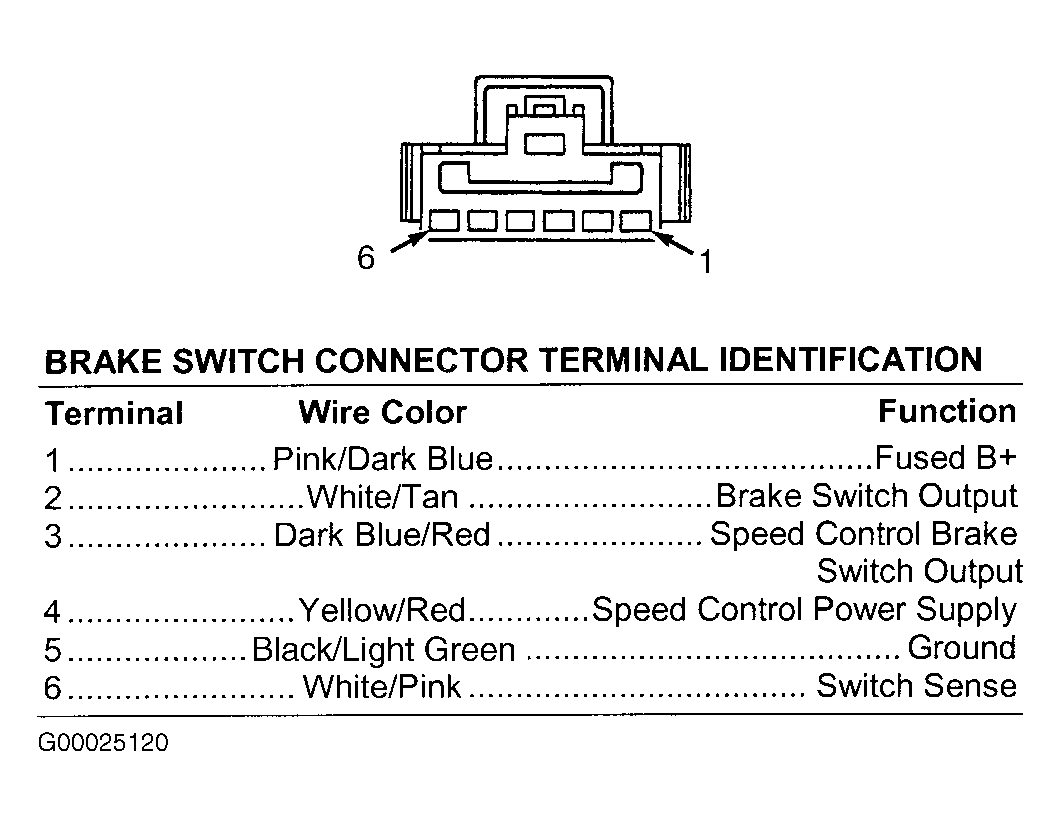

Fig 1: Identifying Brake Switch Connector Terminals
G00025120Courtesy of DAIMLERCHRYSLER CORPORATION
