Alignment Specifications

NOTE: All specifications are given in degrees. All wheel alignments are to be set with vehicle at its proper curb height.

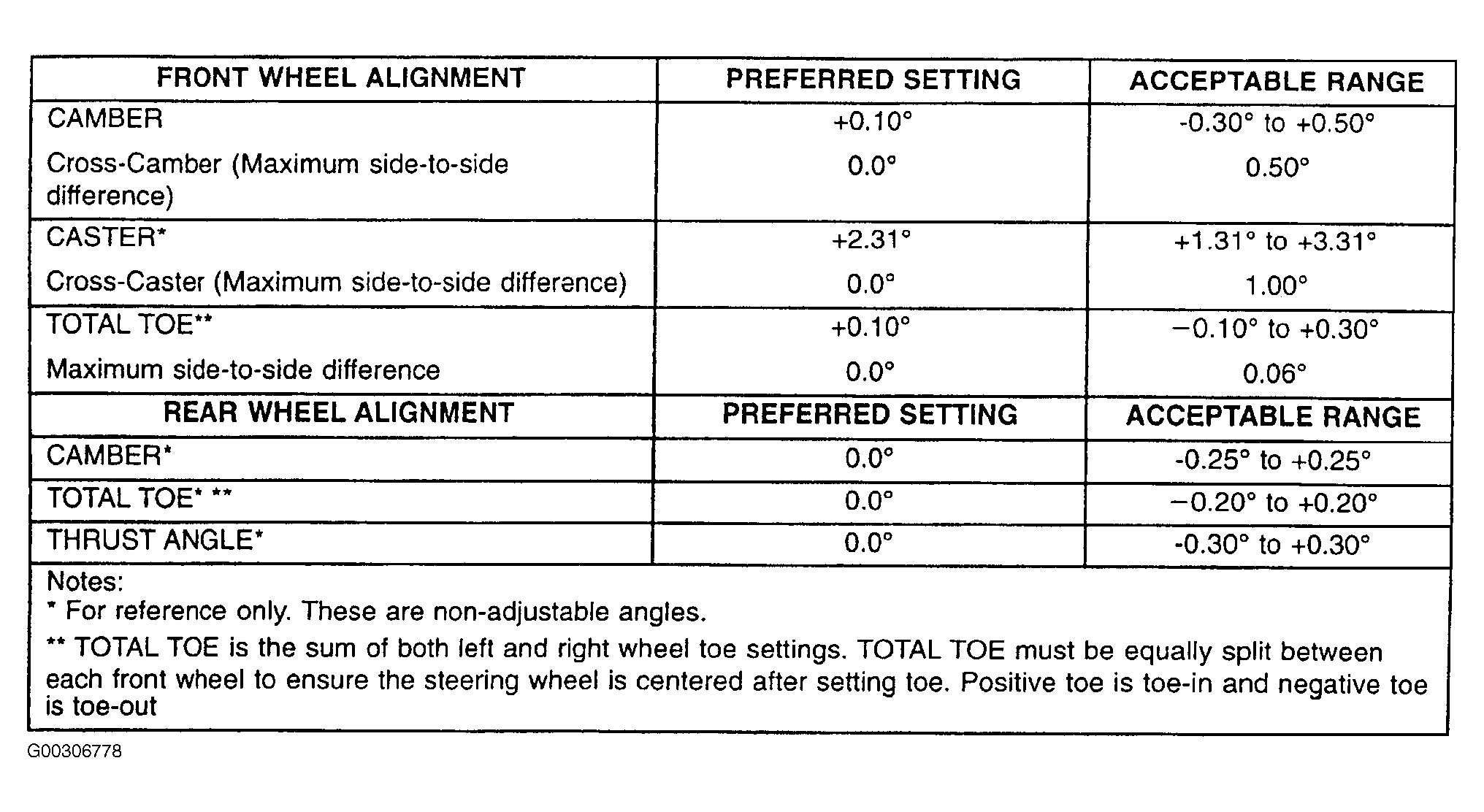

Fig 1: Wheel Alignment Specifications
G00306778Courtesy of CHRYSLER CORP.

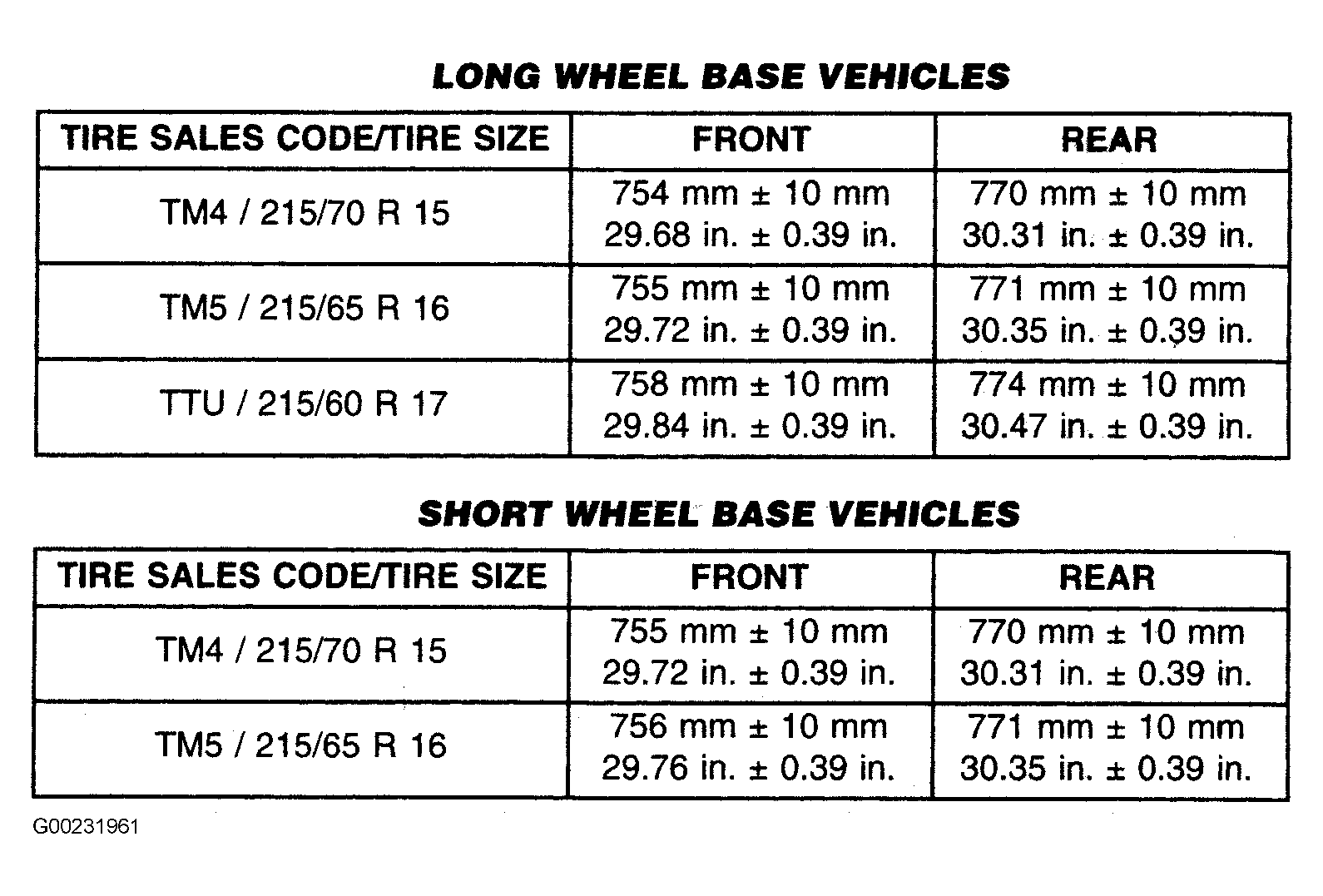

Fig 2: Curb Height Specifications (2002)
G00231961Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 3: Curb Height Specifications (2003-04)
G00231962Courtesy of DAIMLERCHRYSLER CORPORATION
