Controller Anti-Lock Brake Harness Connector C1 End View

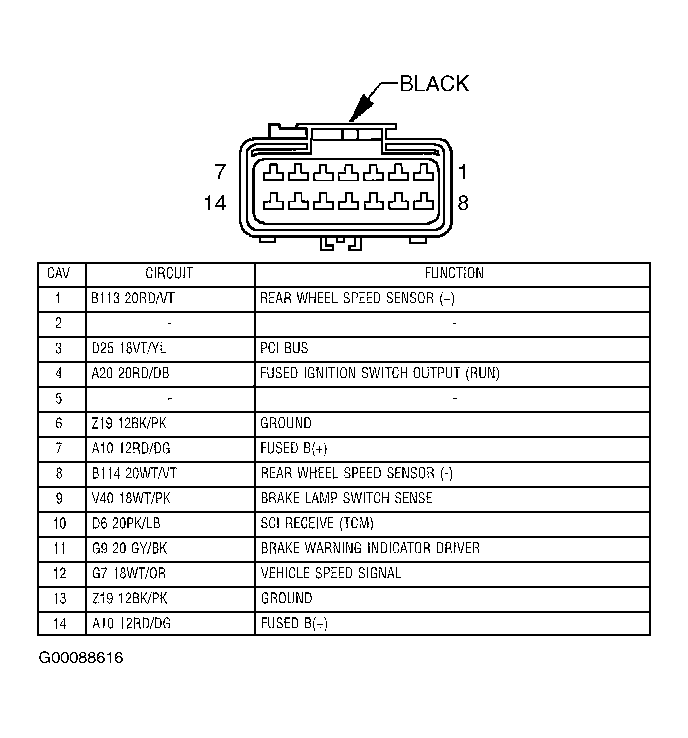

Fig 1: Identifying Controller Anti-Lock Brake Harness Connector C1 Terminals
G00088616Courtesy of DAIMLERCHRYSLER
