Engine Performance
›
System
›
Engine Controls - Self-Diagnostics
›
Connector Identification
›
Ignition Switch Harness Connector End View
Ignition Switch Harness Connector End View

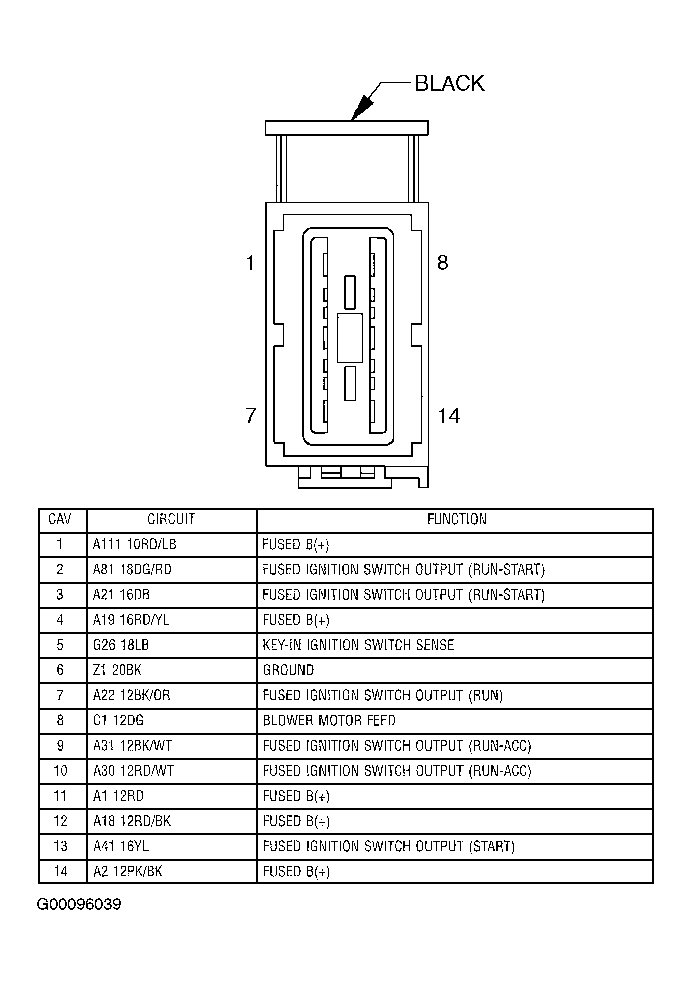

Fig 1: Identifying Ignition Switch Harness Connector Terminals
Courtesy of DAIMLERCHRYSLER
Courtesy of DAIMLERCHRYSLER
