Junction Block Components & Circuits

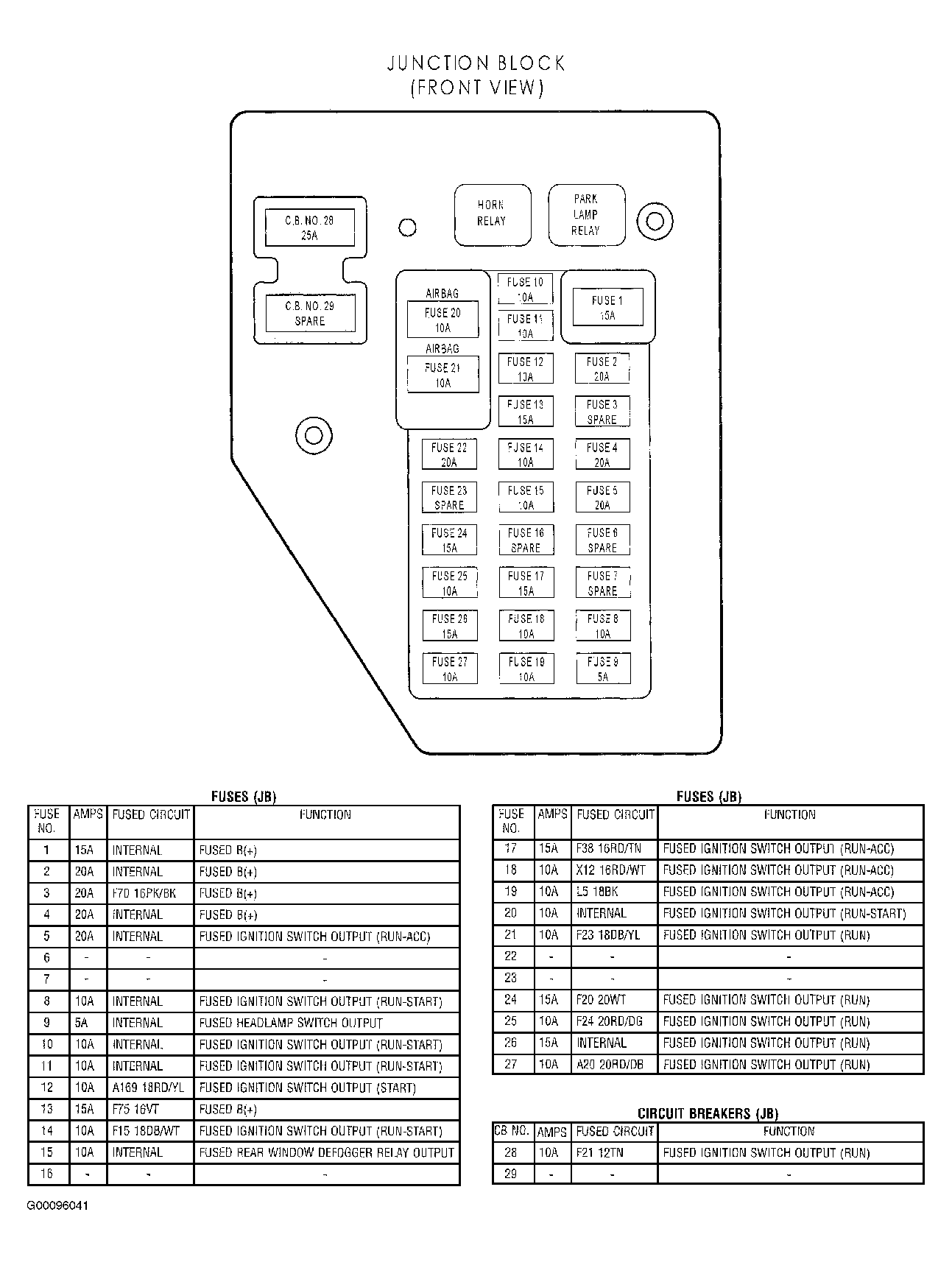

Fig 1: Identifying Junction Block Components & Circuits

G00096041

Courtesy of DAIMLERCHRYSLER
