Powertrain Control Module Harness Connector End View

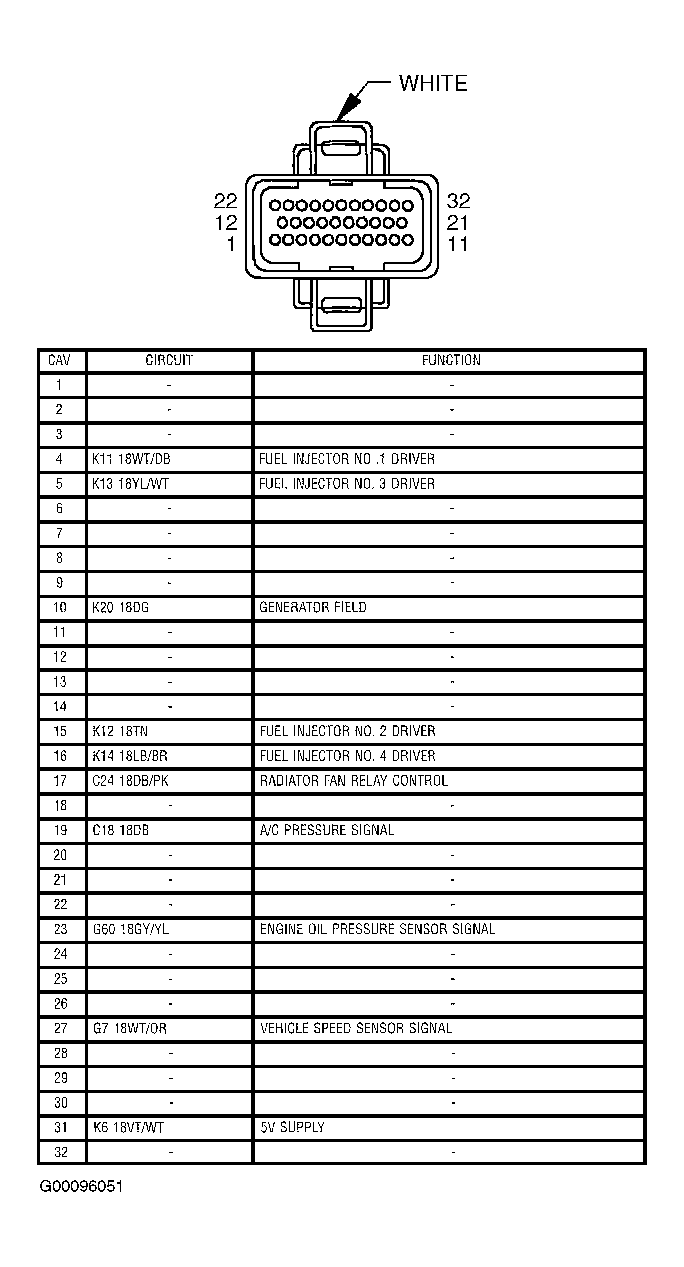

Fig 1: Identifying Powertrain Control Module Harness Connector C1 Terminals (2.5L)

Courtesy of DAIMLERCHRYSLER

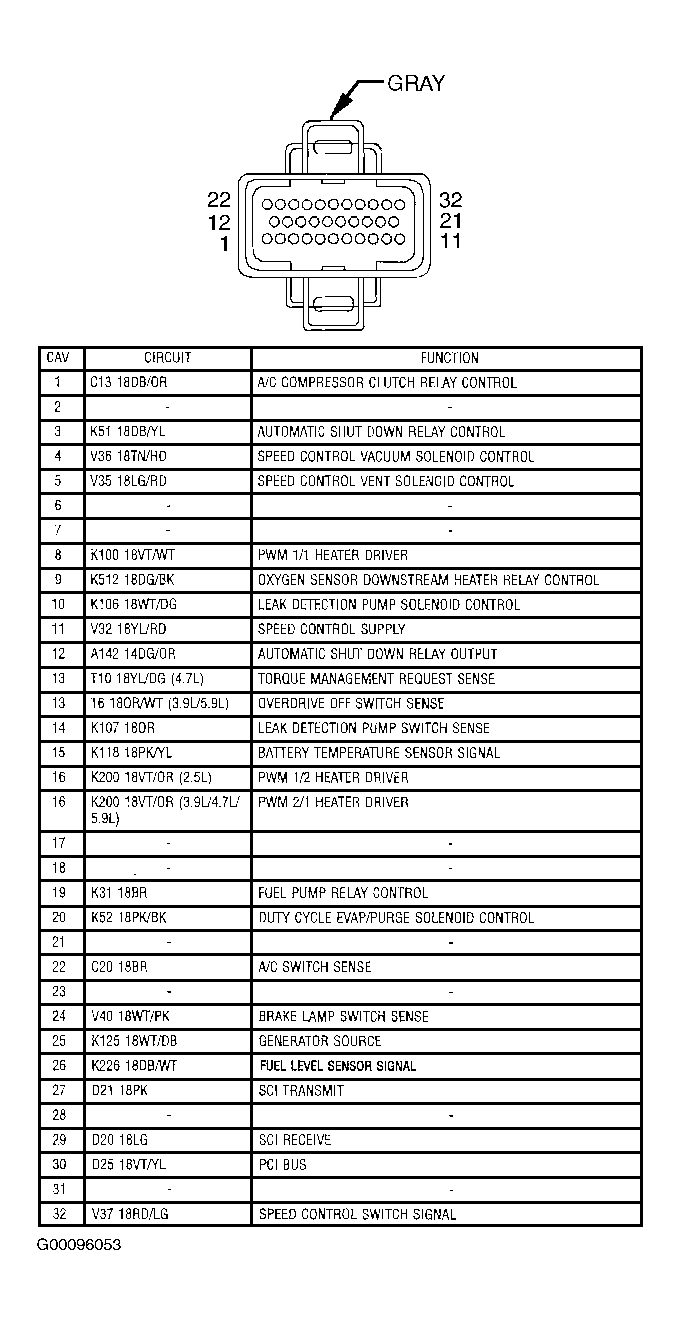

Fig 2: Identifying Powertrain Control Module Harness Connector C1 Terminals (3.9L, 4.7L & 5.9L)

Courtesy of DAIMLERCHRYSLER

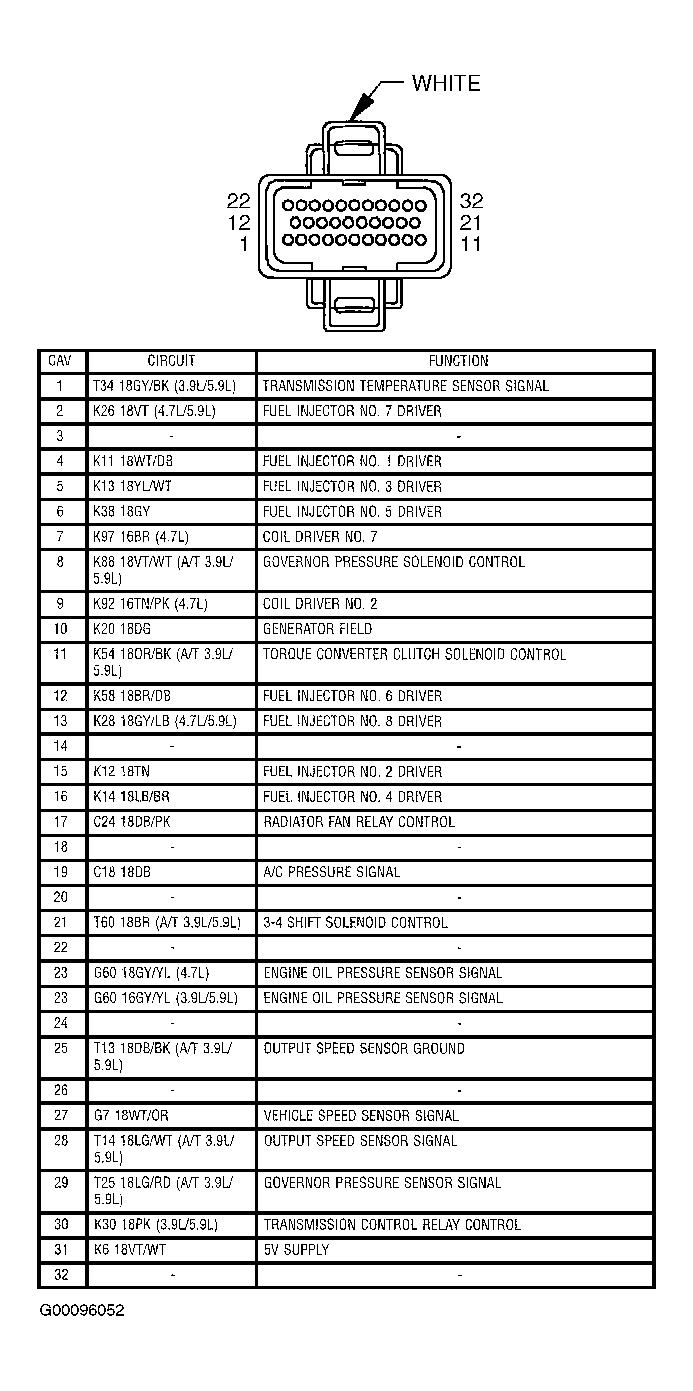

Fig 3: Identifying Powertrain Control Module Harness Connector C2 Terminals (2.5L)

Courtesy of DAIMLERCHRYSLER

Fig 4: Identifying Powertrain Control Module Harness Connector C2 Terminals (3.9L, 4.7L & 5.9L)

Courtesy of DAIMLERCHRYSLER

Fig 5: Identifying Powertrain Control Module Harness Connector C3 Terminals

Courtesy of DAIMLERCHRYSLER
