Transmission Control Module Harness Connector End View (4.7L)

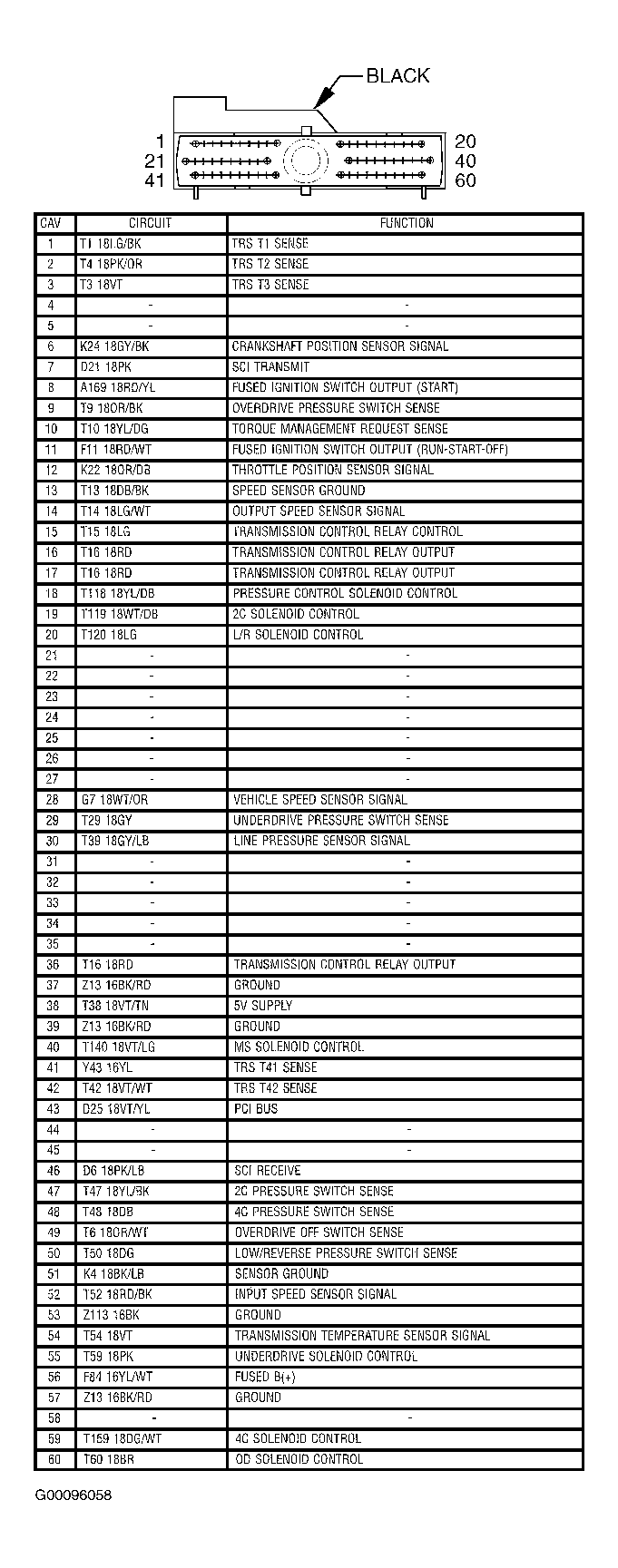

Fig 1: Identifying Transmission Control Module Harness Connector Terminals (4.7L)
G00096058Courtesy of DAIMLERCHRYSLER
