Verification Tests

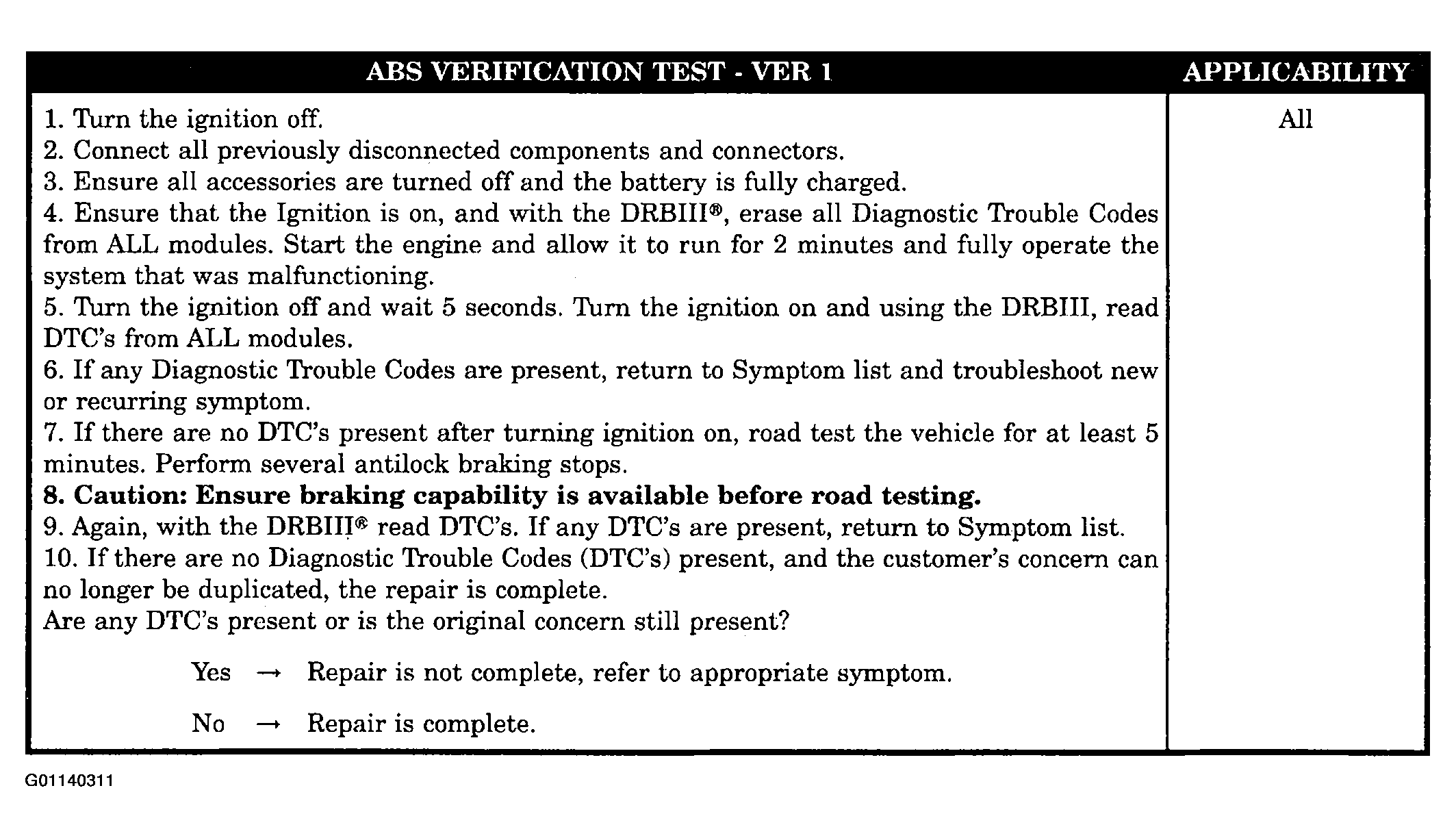

Fig 1: Verification Tests (1 Of 2)
G01140311Courtesy of DAIMLERCHRYSLER CORP.

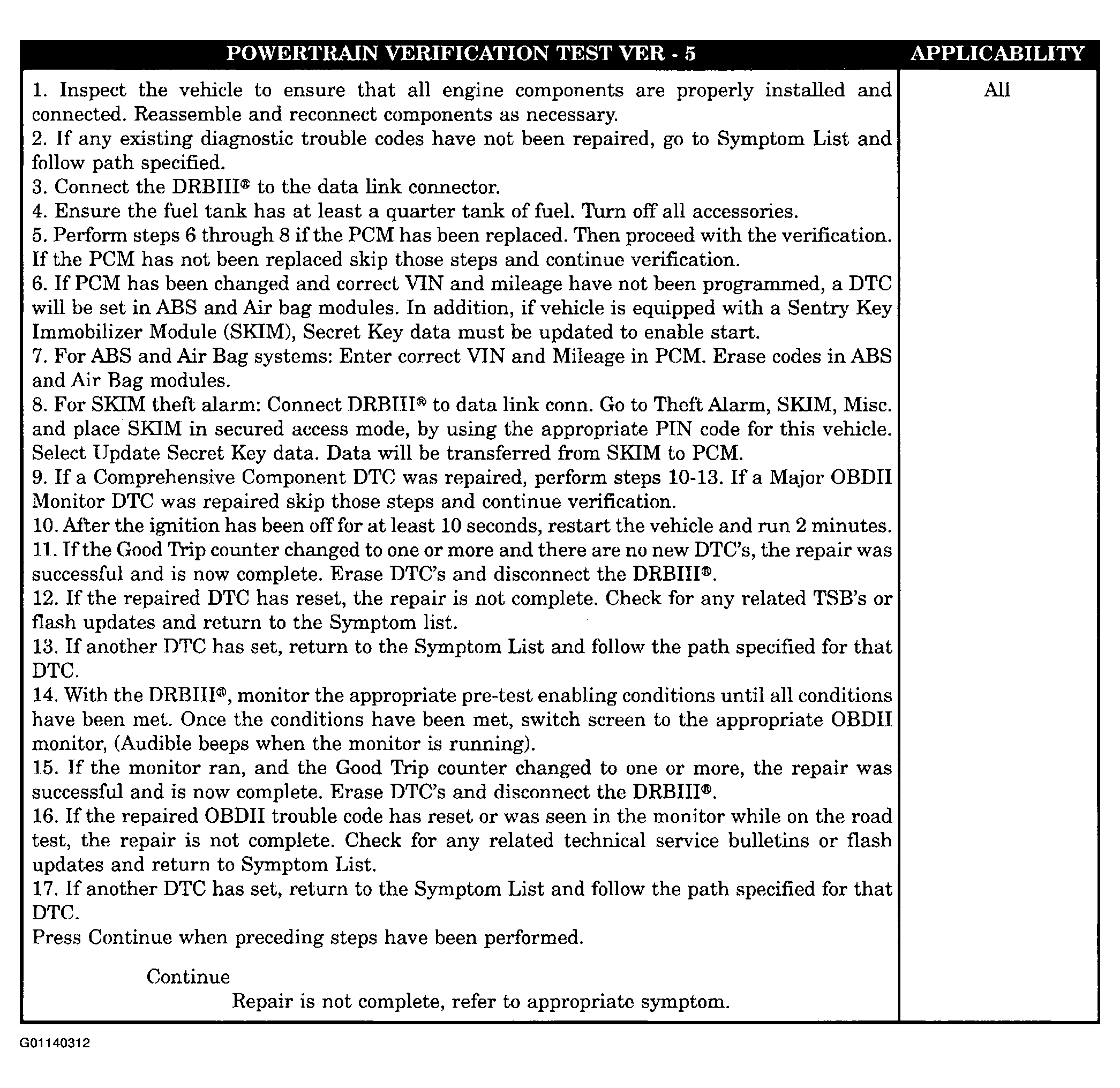

Fig 2: Verification Tests (2 Of 2)
G01140312Courtesy of DAIMLERCHRYSLER CORP.
