Component Locations: Relays

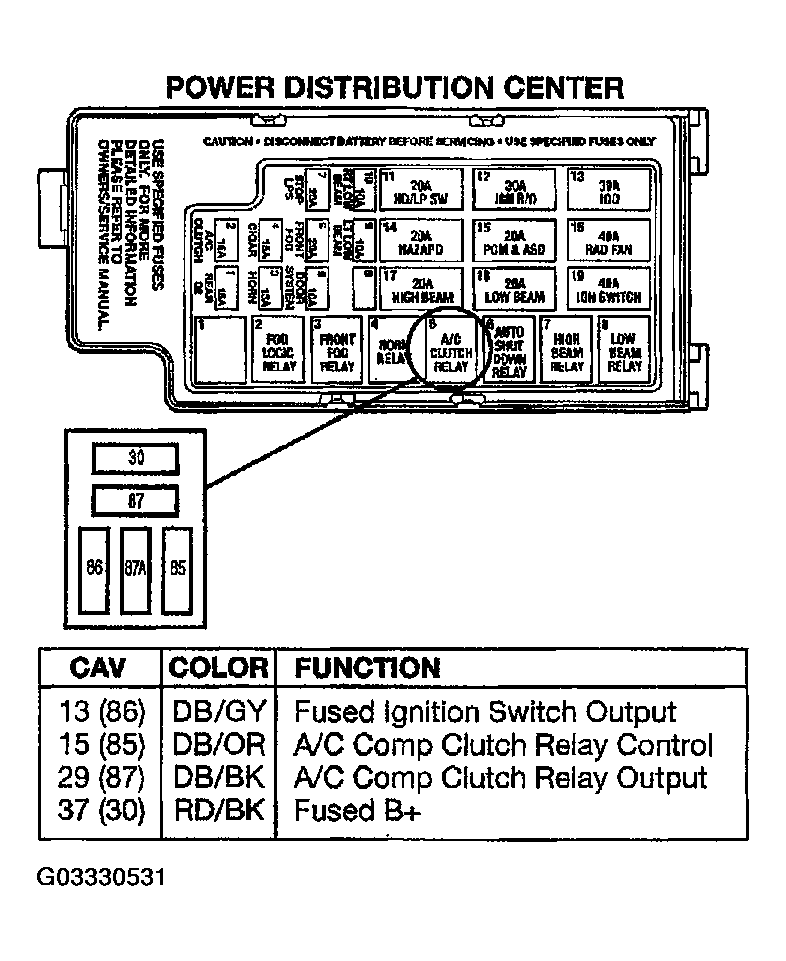

Fig 1: Identifying Components - Relays (1 Of 6)

Courtesy of DAIMLERCHRYSLER CORP.

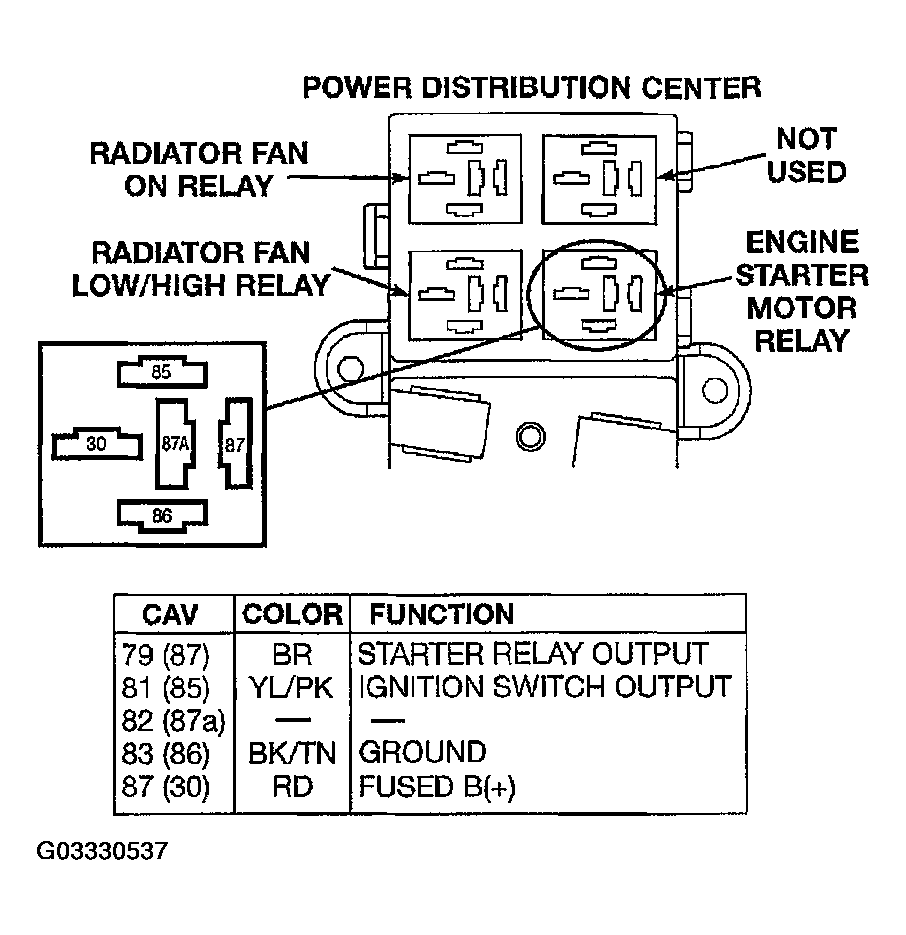

Fig 2: Identifying Components - Relays (2 Of 6)

Courtesy of DAIMLERCHRYSLER CORP.

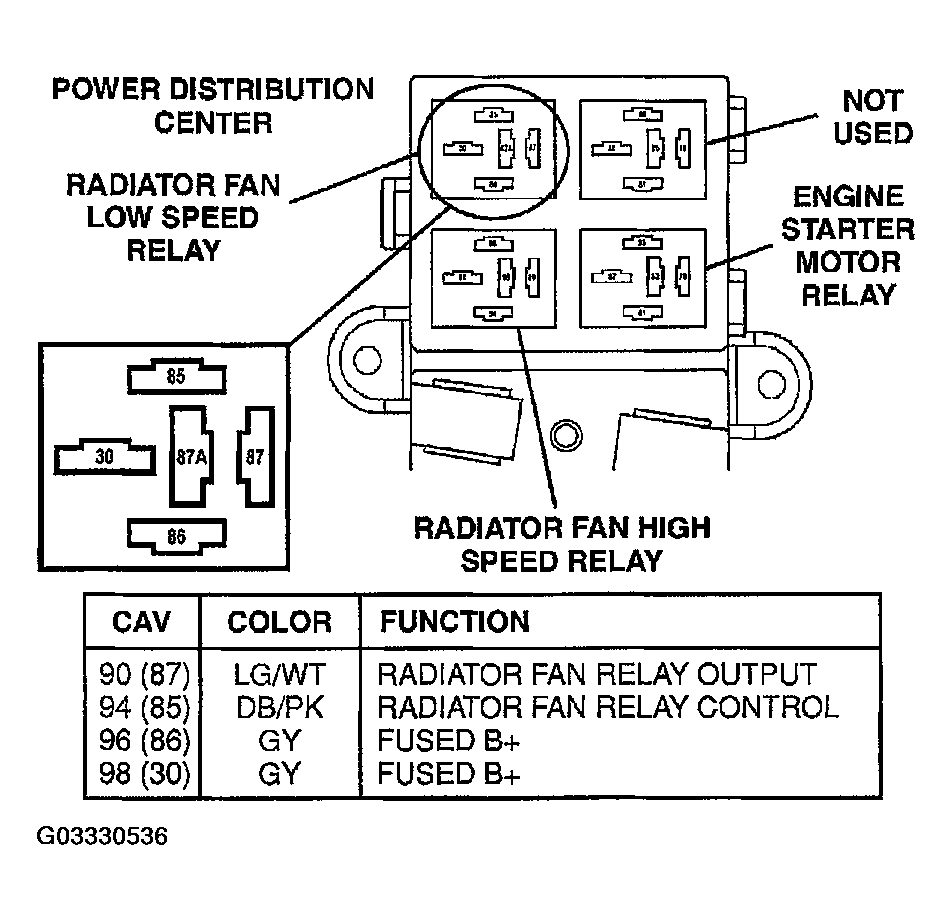

Fig 3: Identifying Components - Relays (3 Of 6)

Courtesy of DAIMLERCHRYSLER CORP.

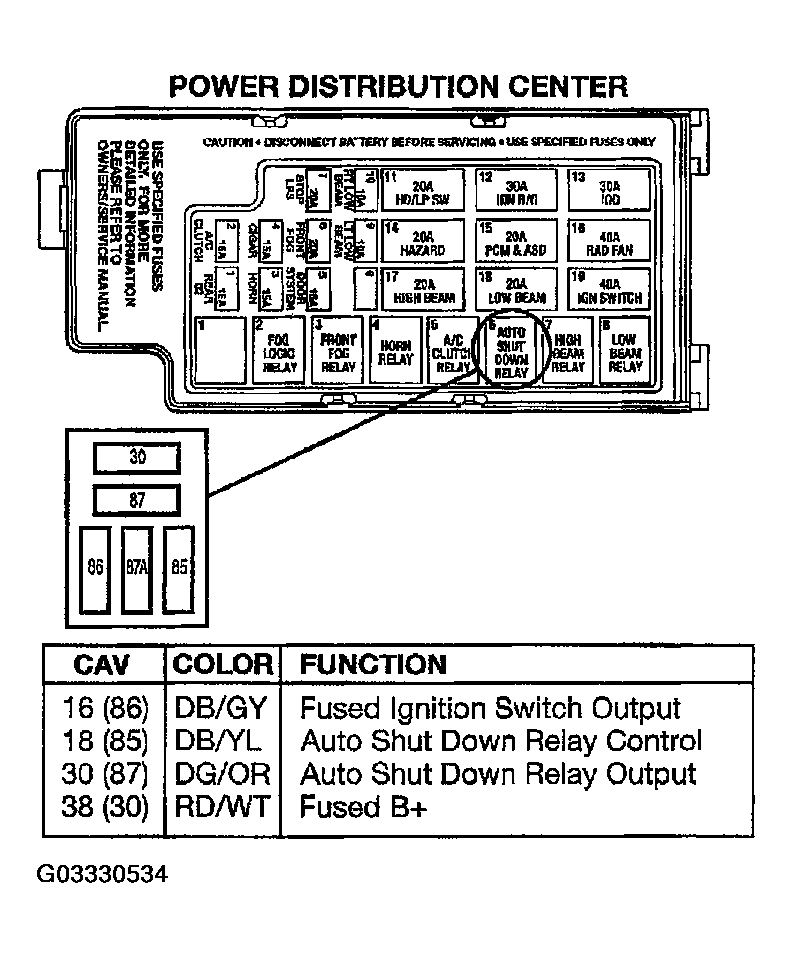

Fig 4: Identifying Components - Relays (4 Of 6)

Courtesy of DAIMLERCHRYSLER CORP.

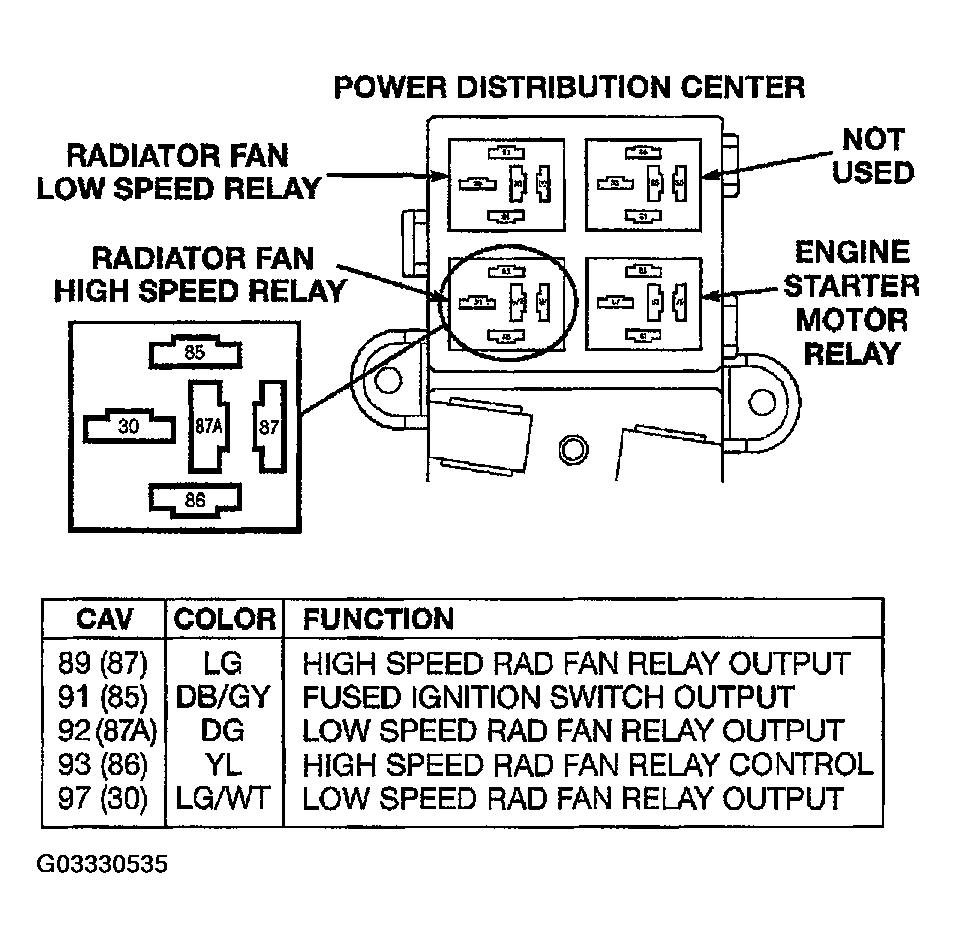

Fig 5: Identifying Components - Relays (5 Of 6)

Courtesy of DAIMLERCHRYSLER CORP.

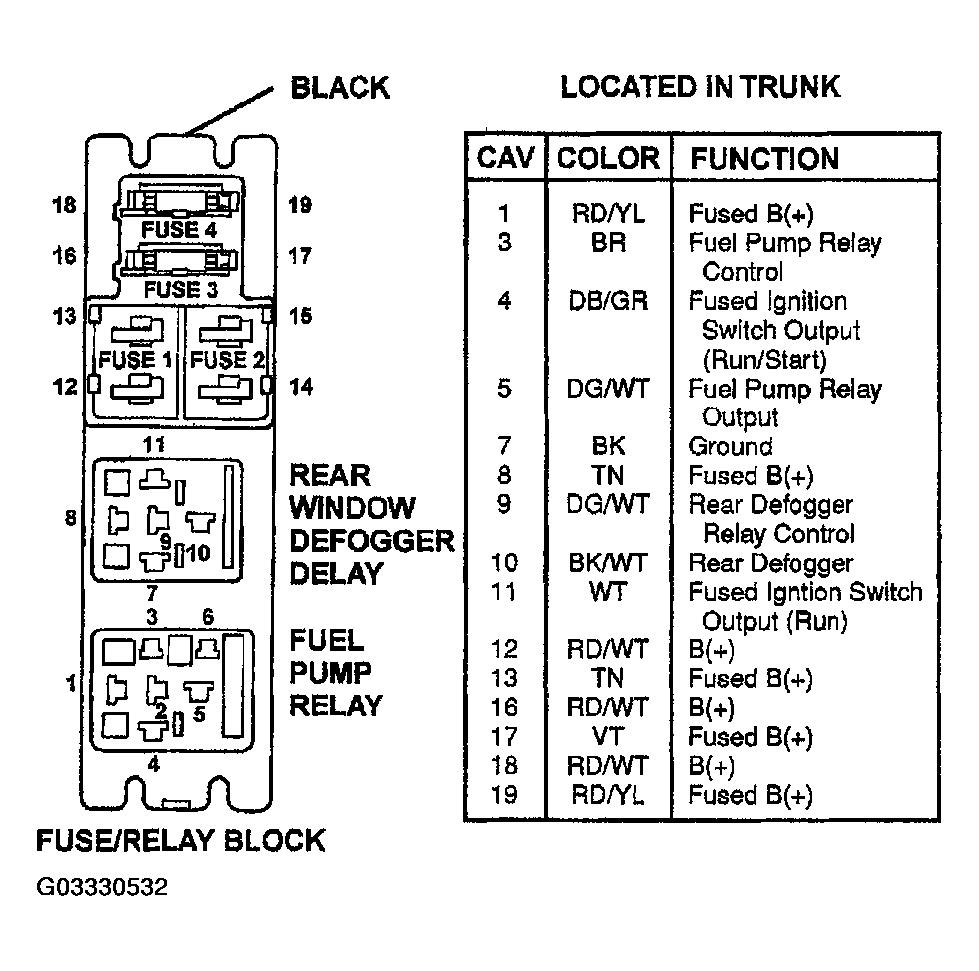

Fig 6: Identifying Components - Relays (6 Of 6)

Courtesy of DAIMLERCHRYSLER CORP.
