Starter Motor: Removal

Disconnect battery negative cable (Fig 1 ).

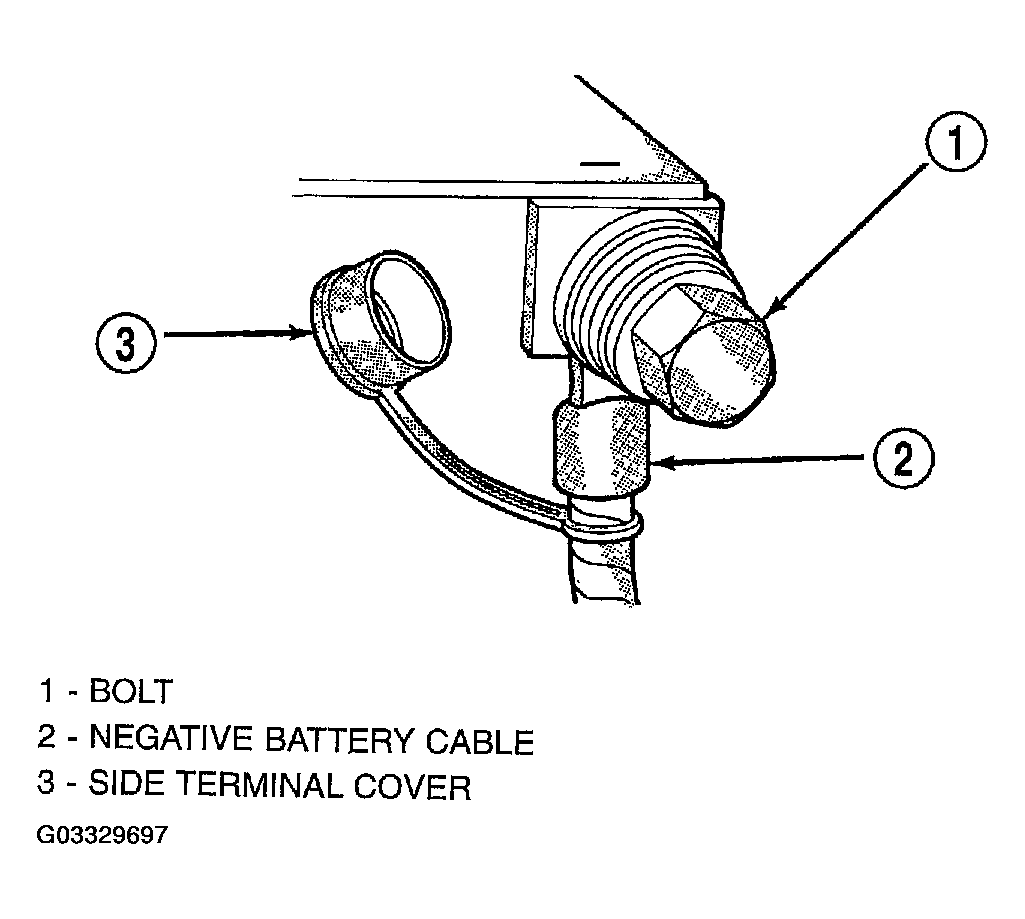

Fig 1: Disconnecting Battery Negative Cable
Courtesy of DAIMLERCHRYSLER CORP.
Raise vehicle on hoist.
Remove battery cable and solenoid wire from starter.
Remove two starter attaching bolts from engine (Fig 2 ).

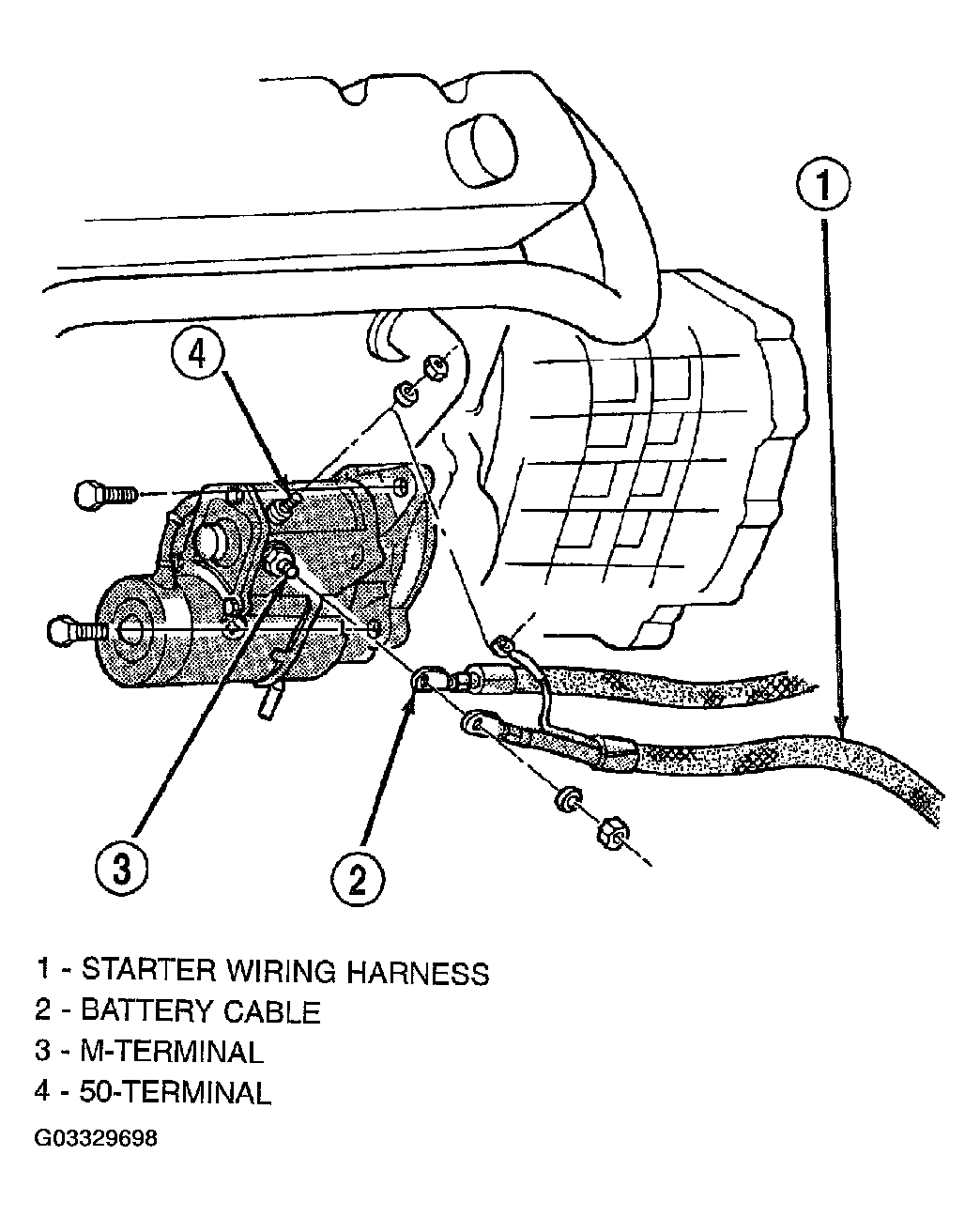

Fig 2: Removing Starter
Courtesy of DAIMLERCHRYSLER CORP.
Remove starter from vehicle.
