Power Door Lock System/Remote Keyless Entry
Power Door Lock System/Remote Keyless Entry

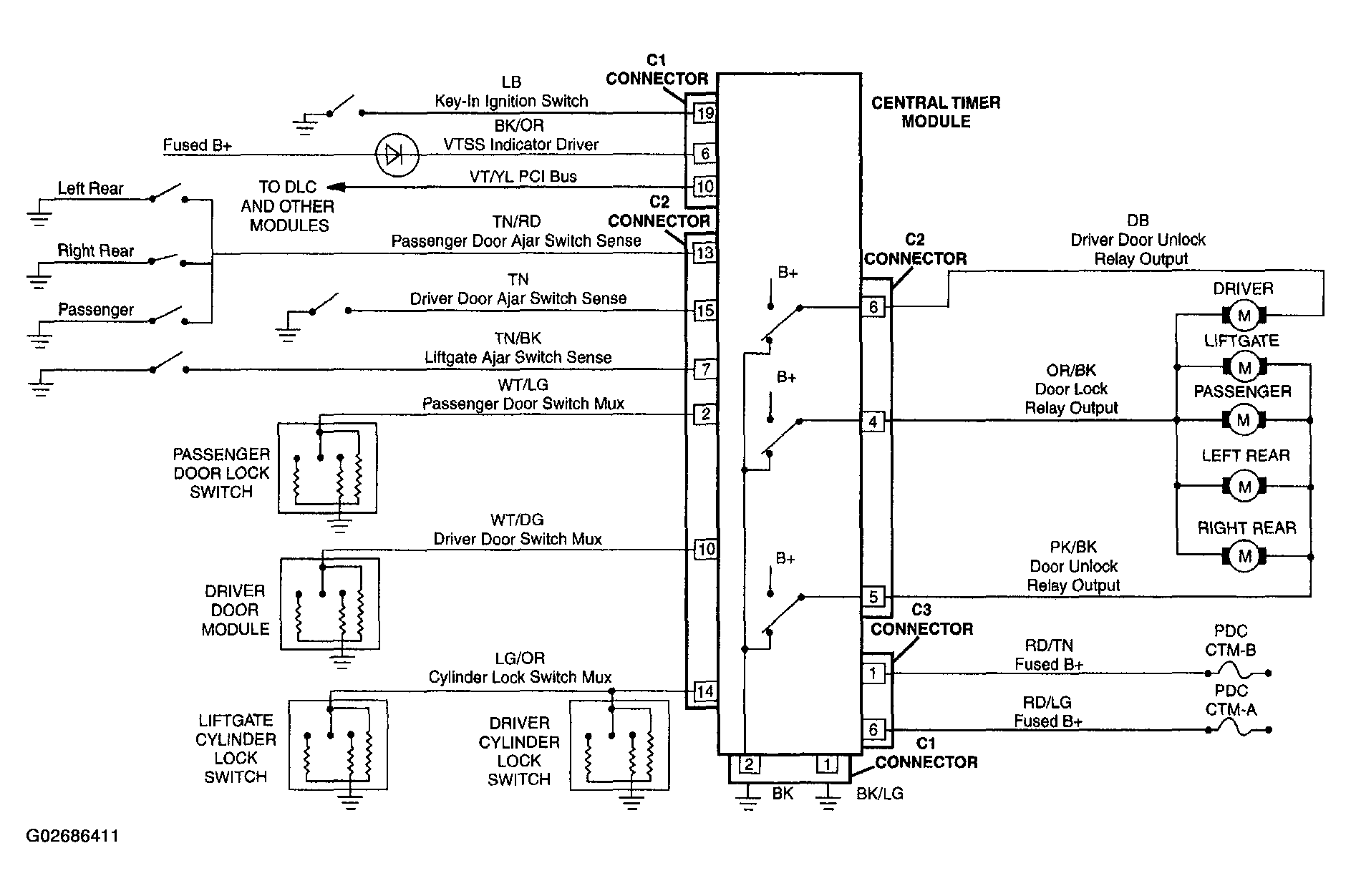

Fig 1: Power Door Lock System/Remote Keyless Entry Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
