Airbag Control Module Connector End View
Airbag Control Module Connector End View

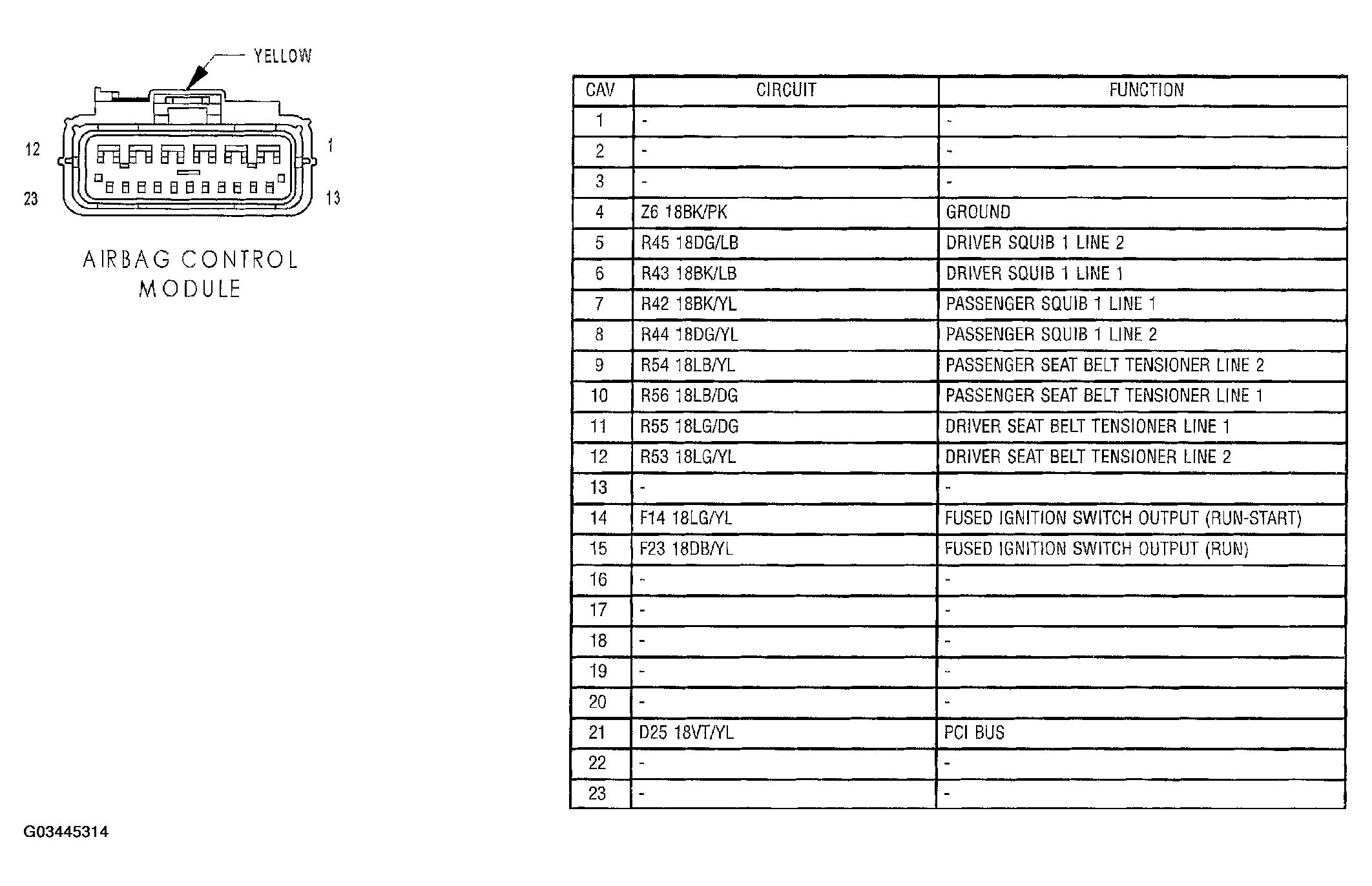

Fig 1: Airbag Control Module Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
