Central Timer Module Connector End View (C2)

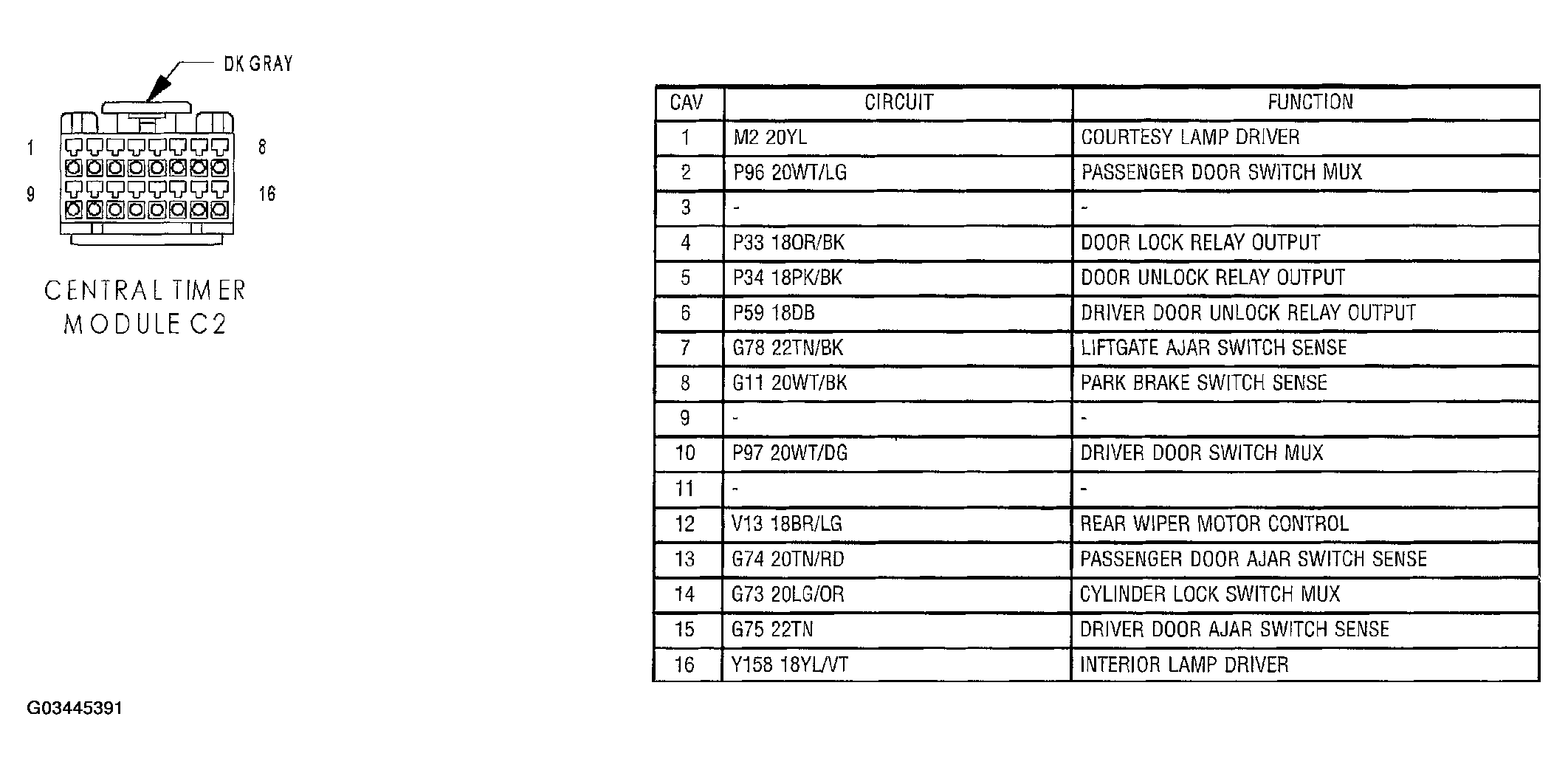

Fig 1: Central Timer Module Connector End View (C2)
G03445391Courtesy of DAIMLERCHRYSLER CORP.
