Left Speed Control Switch Connector End View
Left Speed Control Switch Connector End View

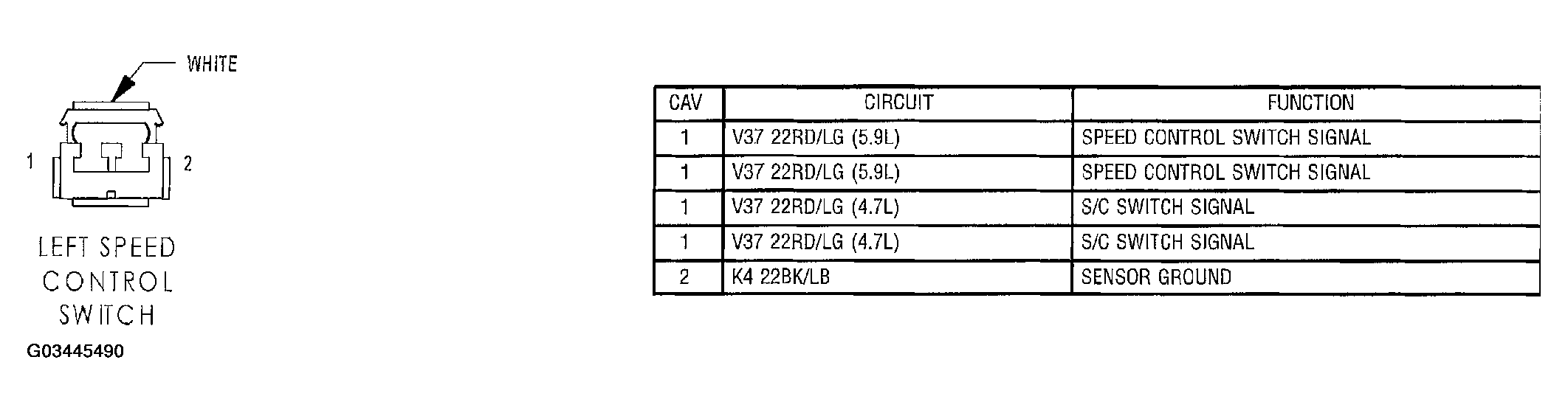

Fig 1: Left Speed Control Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
