Powertrain Control Module (4.7L Next Generation Controller) Connector End View (C3)

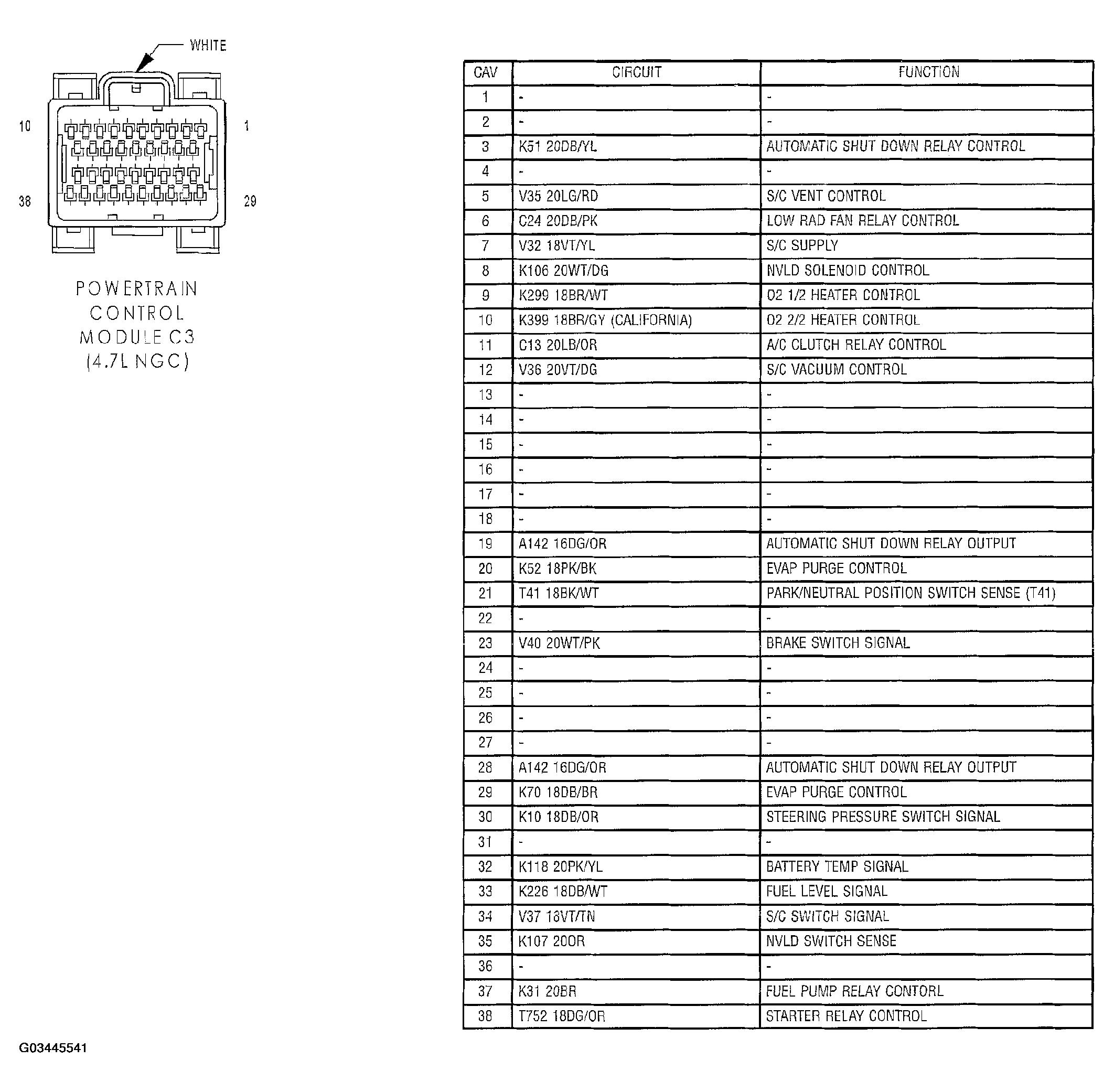

Fig 1: Powertrain Control Module (4.7L Next Generation Controller) Connector End View (C3)
G03445541Courtesy of DAIMLERCHRYSLER CORP.
