Transfer Case Control Module Connector End View (C3)

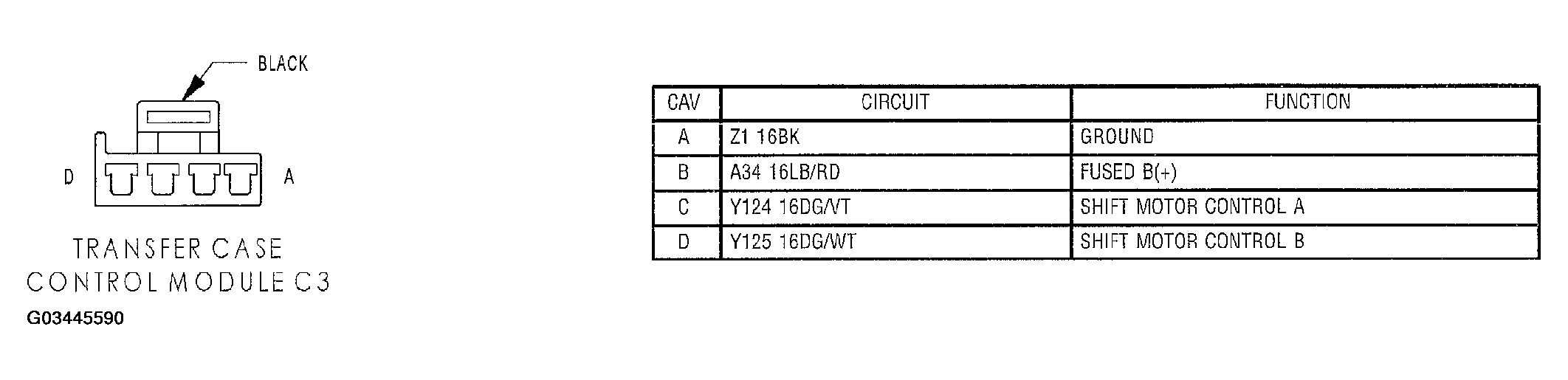

Fig 1: Transfer Case Control Module Connector End View (C3)
G03445590Courtesy of DAIMLERCHRYSLER CORP.
