Right Speed Control Switch Connector End View
Right Speed Control Switch Connector End View

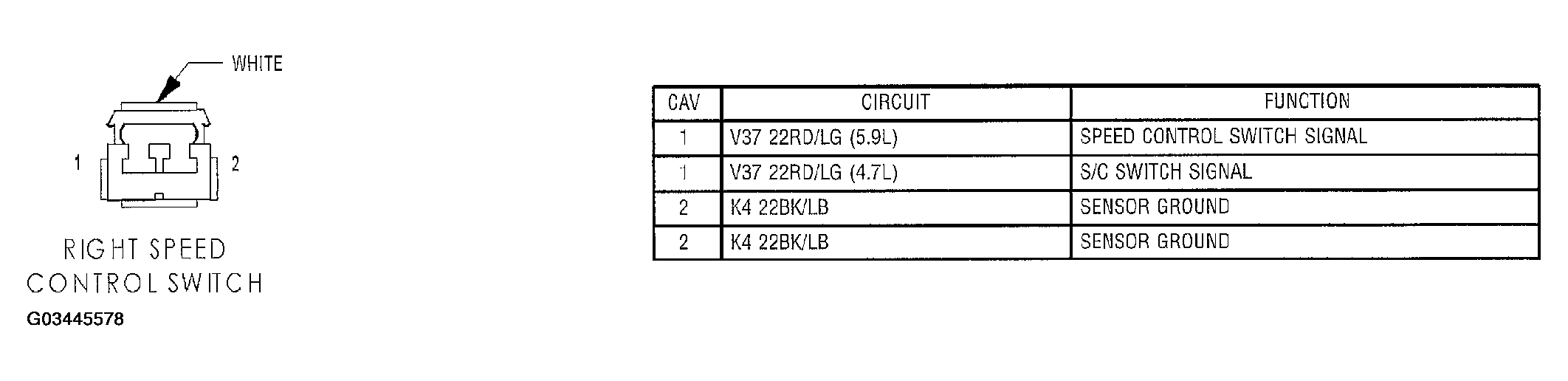

Fig 1: Right Speed Control Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
