Key Cylinder: Removal

The ignition key must be in the key cylinder for cylinder removal.

1. Disconnect negative cable from battery.
2. Remove upper and lower covers (shrouds) from steering column.
3. Place shifter in PARK position.
4. A retaining pin (Fig 1 ) is located at side of key cylinder assembly.

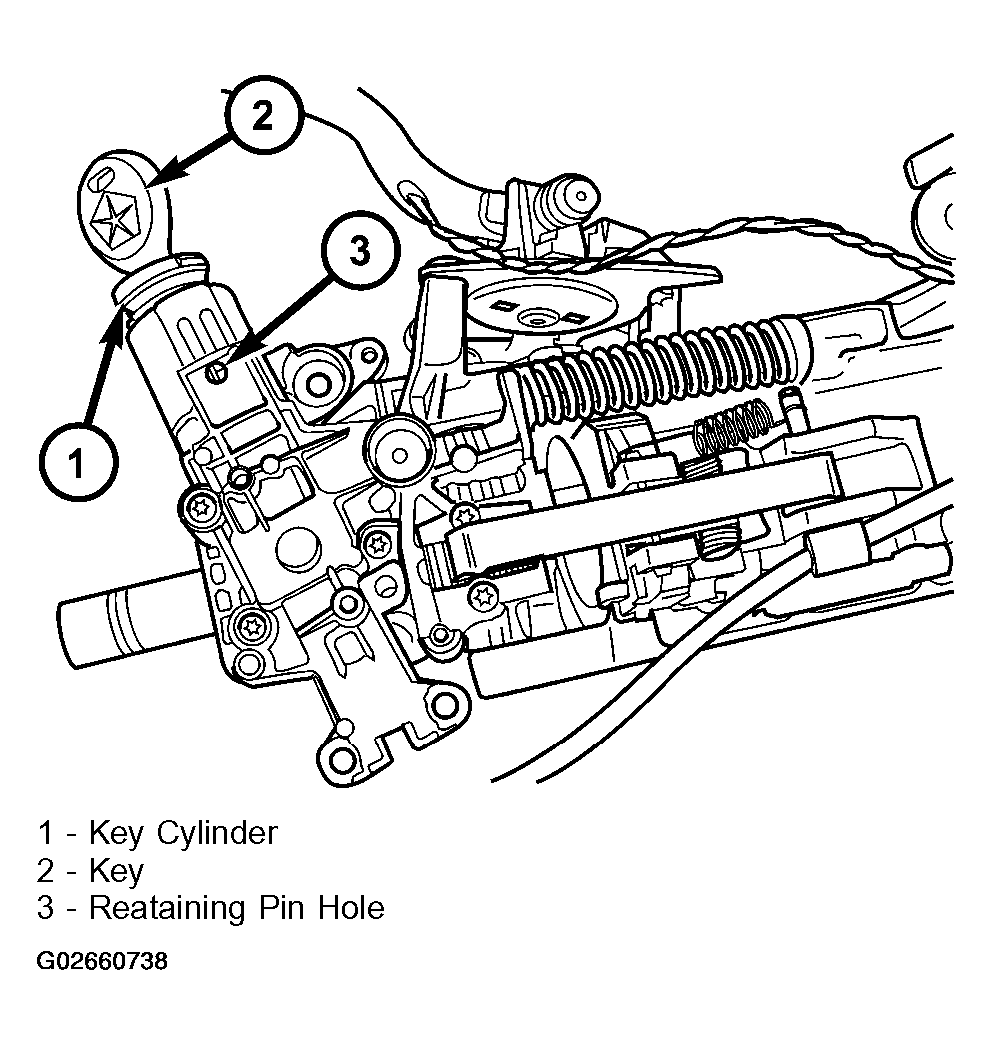

   Fig 1: Identifying Key Cylinder

   Courtesy of DAIMLERCHRYSLER CORP.
   1. Rotate key to RUN position.
   2. Press in on retaining pin while pulling key cylinder from ignition switch.
